Why does heavy spalling and surface delamination require zone mender application rather than spot repair?

Heavy spalling and surface delamination require zone mender application because damage of that extent covers large areas where the concrete surface layer has broken down and exposed aggregate throughout. On James K Boulevard in Pontiac, pitting covered broad zones of the 413-square-foot slab with delamination present in multiple locations. Our crew applied mender compound across each deteriorated zone and troweled it to even coverage rather than targeting individual spots. Spot repair on broadly damaged slabs leaves uneven surface profiles that affect coating adhesion and appearance across the full floor. MotorCity Floors and Coatings applies zone mender whenever spalling or pitting has spread beyond isolated points of failure.

What is the difference between MR-50 primer and mender compound for pitting repair on a garage floor?

MR-50 primer is a penetrating repair material applied to minor or spot pitting as both a repair application and a bond coat, while mender compound fills cracks and addresses heavier surface voids. On South Lyon in Pontiac, minor pitting distributed across joint lines received MR-50 applied in targeted zones — working into the concrete from within. On Lasseigne in Pontiac, heavier crack and pitting damage near the expansion joint received mender compound worked into voids and troweled flush with the surrounding surface. MotorCity Floors and Coatings selects the repair material based on the depth, concentration, and location of pitting across each installation.

Why does hard-troweled new construction concrete require more grinding passes than standard residential concrete?

Hard-troweled new construction concrete requires more grinding passes because machine troweling during curing seals the surface and blocks direct coating adhesion. On Concourse Drive in Pontiac, the newly constructed 745-square-foot garage required more aggressive grinding passes than typical residential concrete. On Apex Drive at M1 Concourse, the same condition was present on a brand-new slab with a vehicle lift already installed. Standard residential concrete allows coating adhesion after a single properly executed grind. Hard-troweled surfaces must be fully opened across the entire slab before any polyurea base coat will bond correctly. MotorCity Floors and Coatings adjusts the number of grinding passes to the surface density of each specific installation.

How does a polyurea-polyaspartic coating installation handle defined scope boundaries and excluded areas within a garage?

Defined scope boundaries are handled by taping and cutting clean edges at the exact boundary lines established before any coating is applied. On Pontiac Lake Road, the 477-square-foot workshop garage excluded the bathroom and ran to the joint line at two interior doors. Our crew taped the line directly under the outside door threshold and ran the coating to the joint line at each interior door. A vehicle lift occupied the center of the floor and was worked around during both preparation and coating. MotorCity Floors and Coatings establishes all scope boundaries before grinding begins to keep finished edges clean and well-defined on every installation.

Polyurea Garage Floor Coatings in Pontiac, MI

QUESTIONS? NEED A QUOTE?

Upgrading Garage Floor Coating in Pontiac with Polyurea-Polyaspartic Coatings

On this page, we document garage floor coating projects in Pontiac, MI. Our dual-coating systems have converted worn concrete slabs into durable, attractive garage floors. Pontiac is an Oakland County city with a diverse housing stock — from older working neighborhoods with decades-old concrete to larger detached garages that have taken the full brunt of Michigan’s freeze-thaw cycles.

Many of the properties where we apply our polyurea-polyaspartic floor coating systems had accumulated the wear and tear of the harsh Michigan climate. As you will see in these case studies, our garage floor coating specialists work with concrete slabs in a wide variety of conditions: some needed only standard surface preparation. Others required significant remediation — heavy pitting repair, crack filling, and full-slab mender application — before the polyurea and polyaspartic coats could go down. We describe the process and results, and include the before-and-after photos for each job.

Pontiac Garage Floor Coating Case Studies

These case studies carefully document the condition of the concrete slab, the challenges we encountered, and the steps our crew took to prepare and restore the concrete slab before applying the dual-layer system. Each project reflects a variety of conditions to be addressed, and shows the consistent quality standards MotorCity Floors and Coatings applies to every installation. /

James K Boulevard

South Lyon

Lasseigne

Concourse Drive

Pontiac Lake Road

Brady Lane

Apex Drive

Quality Garage Floor Coatings

Winter road salt, freeze-thaw cycles, automotive fluids, and daily vehicle traffic degrade unprotected garage concrete over time. The damage typically appears as oil staining, cracking, surface pitting, and spalling — the breakdown of the concrete surface layer itself.

Several of our jobs of garage floor coating in Pontiac involved concrete with heavy pitting and spalling that had progressed well beyond surface wear. At the James K Boulevard property, the deterioration covered large zones of the slab with exposed aggregate and delamination visible throughout. Polyurea-polyaspartic systems provide reliable protection against these conditions and deliver an appearance that bare concrete or epoxy products cannot match.

NEW Garage Floor Coating
on James K Boulevard

James K Boulevard, Pontiac, MI

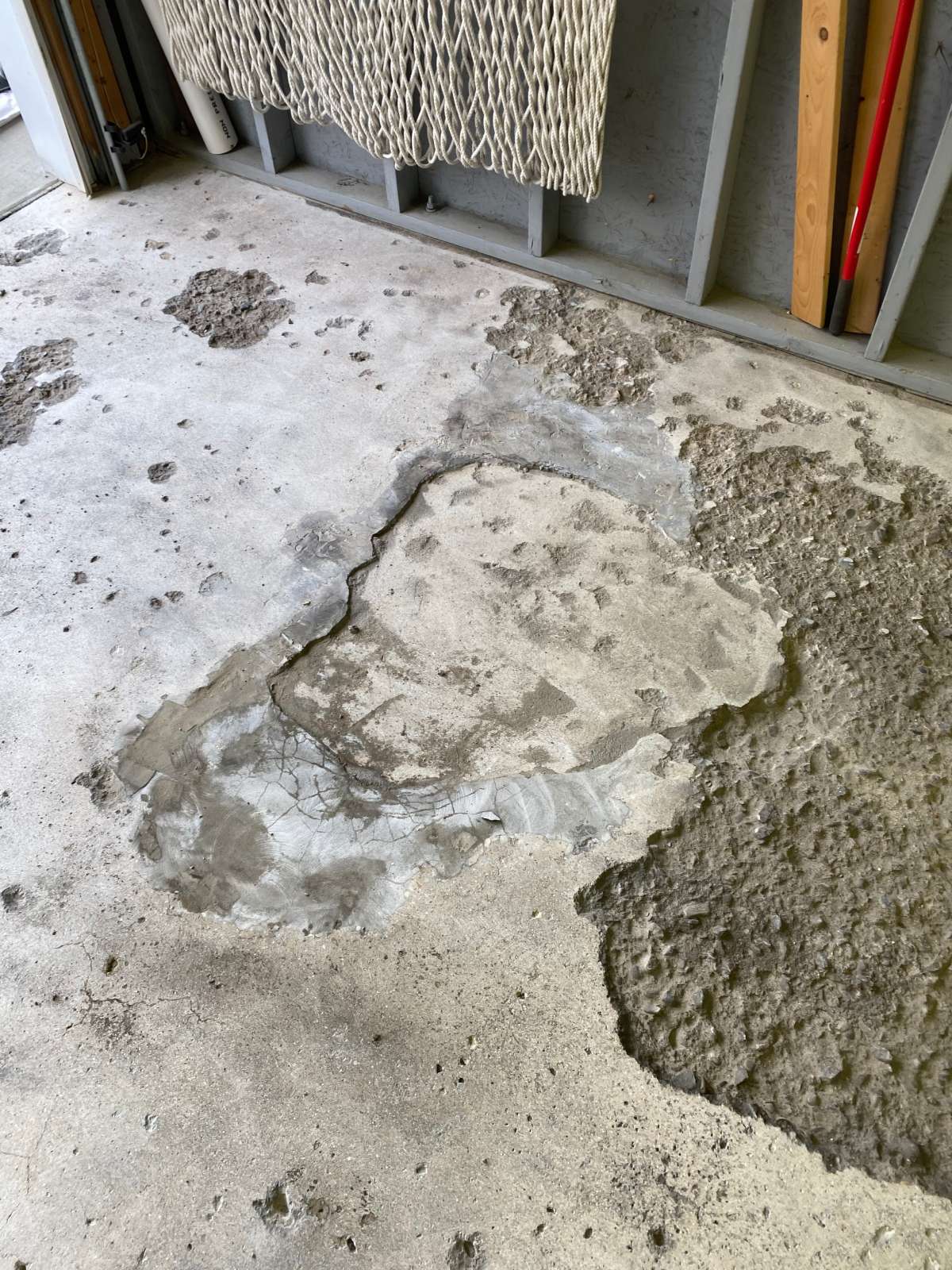

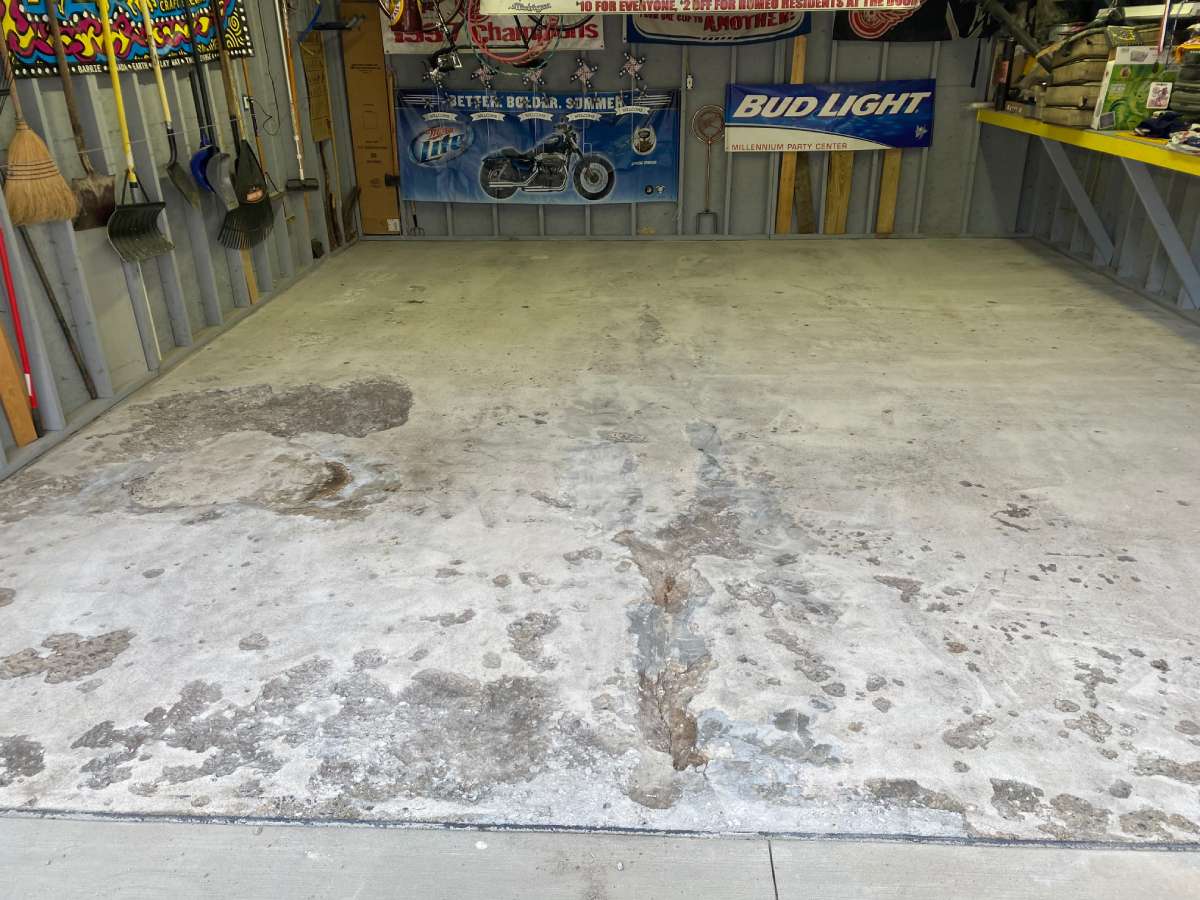

What We Found

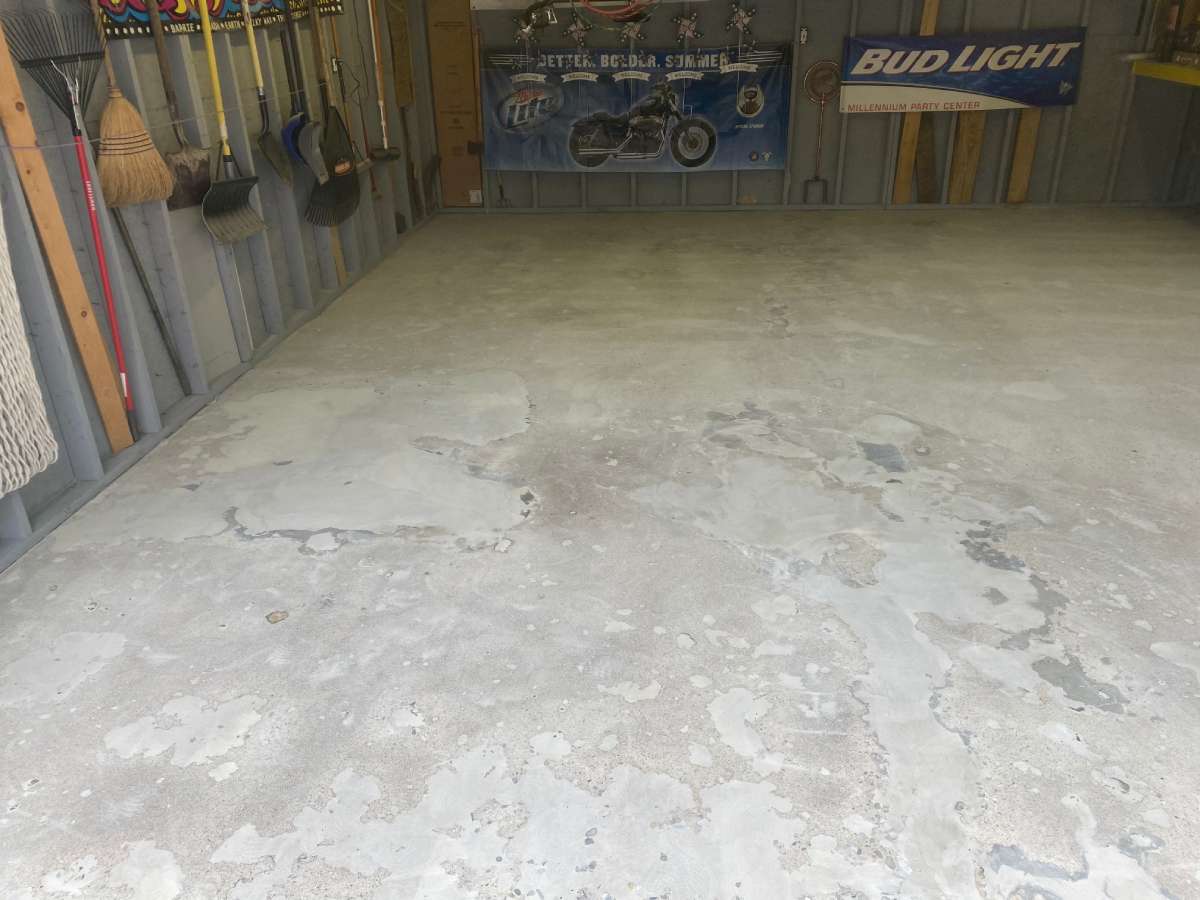

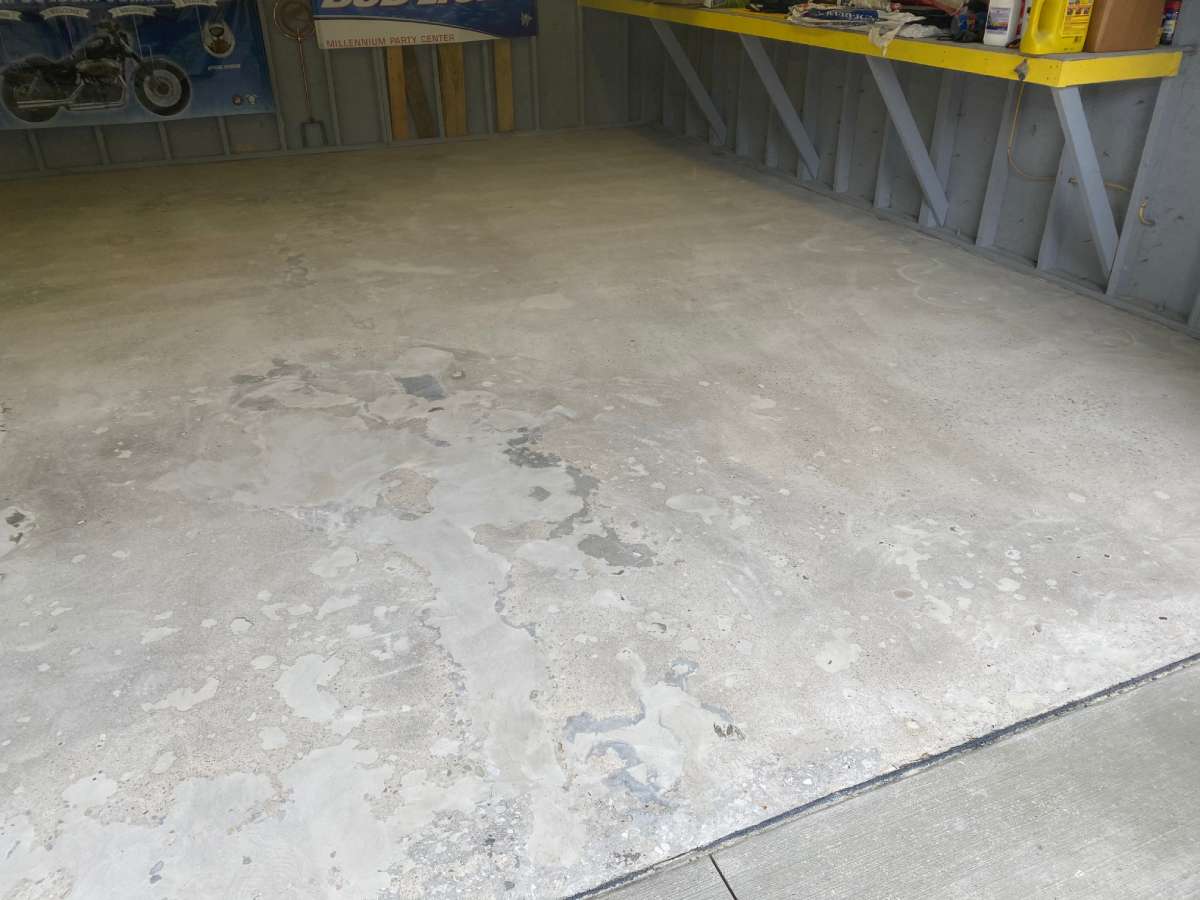

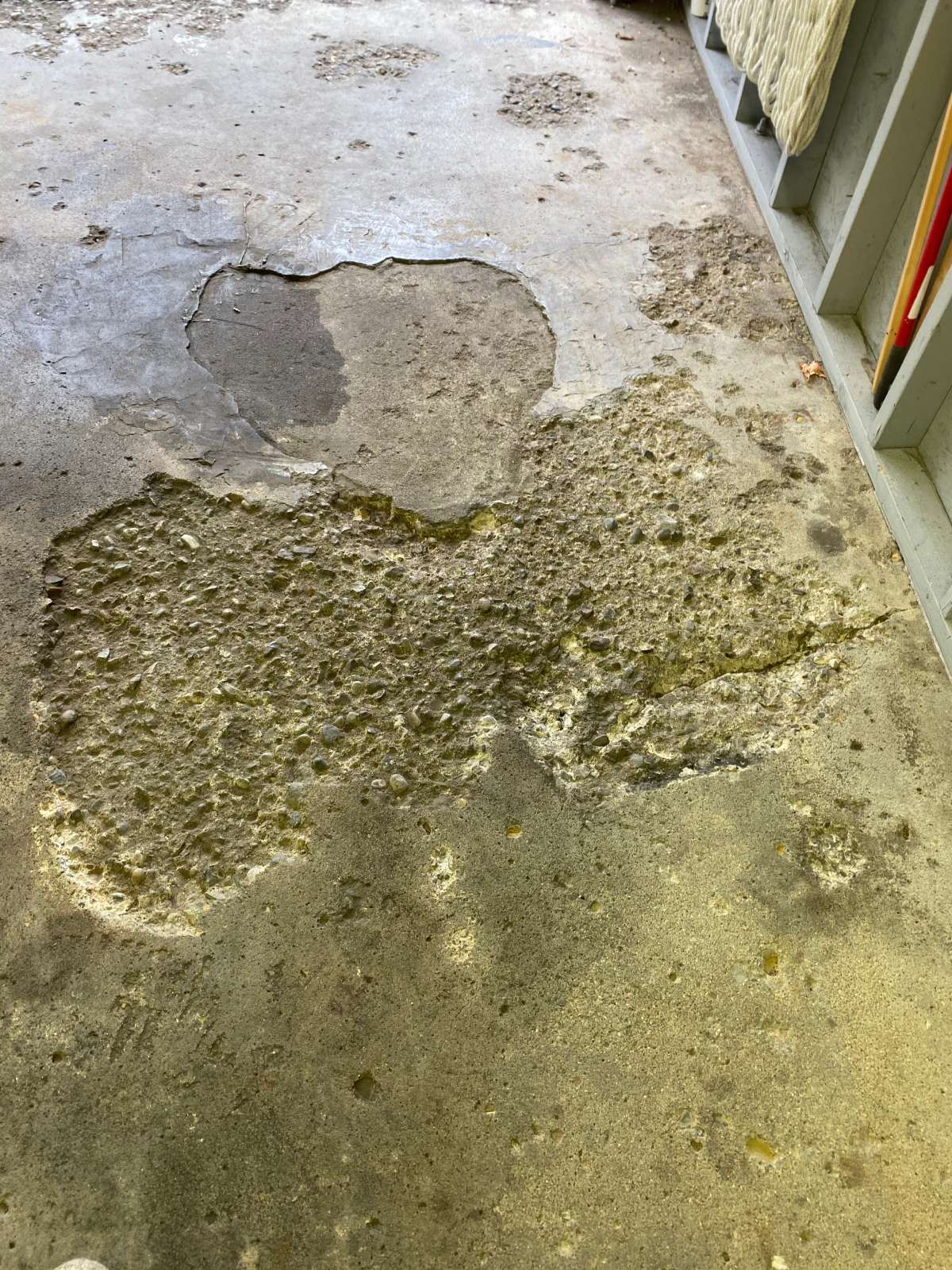

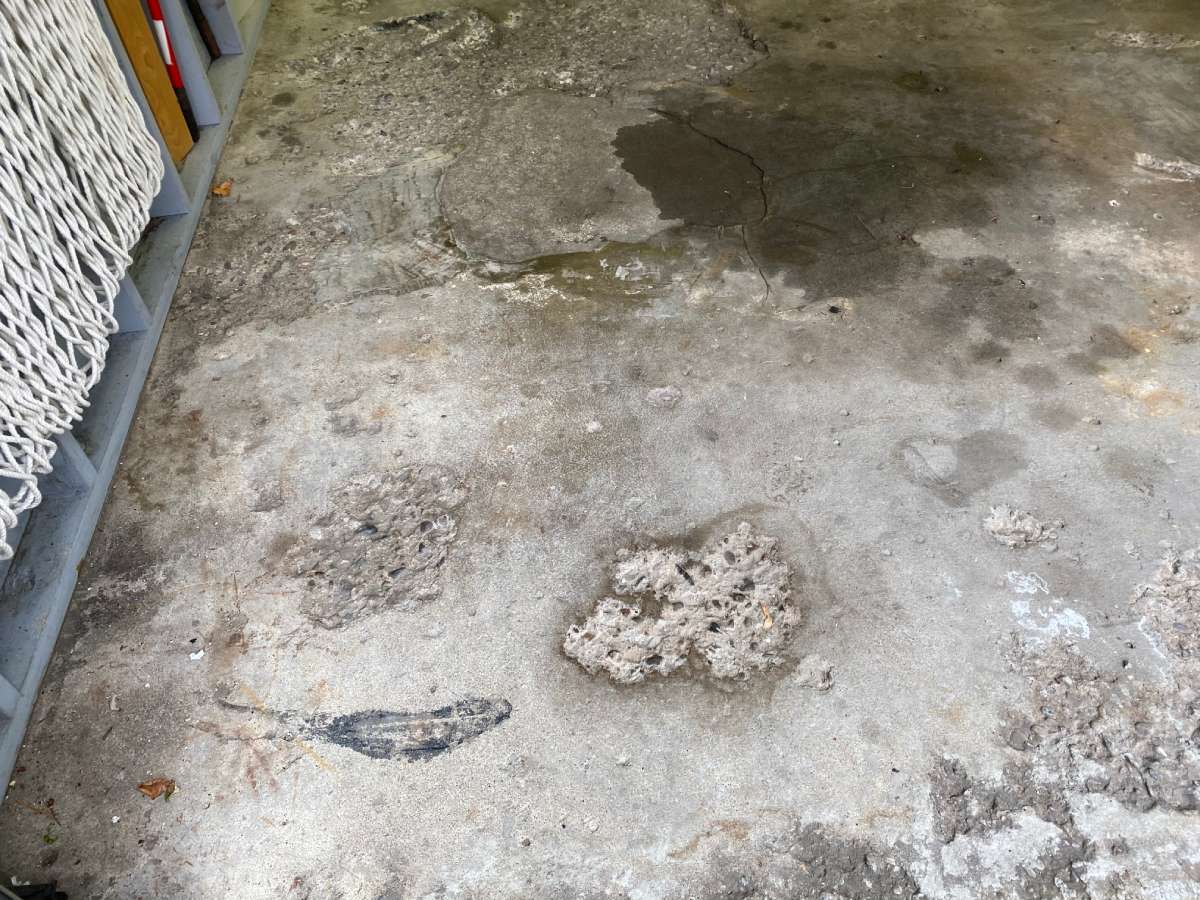

The 413-square-foot slab at this James K Boulevard property had deteriorated well past normal surface wear. Large zones of the floor showed heavy pitting with exposed aggregate across broad areas of broken-down concrete. Our crew found spalling and delamination across multiple locations. A prominent crack ran down the center of the slab, with additional cracking spread throughout. Oil staining and surface contamination covered the rest. The job covered the flat floor only, no steps, no vertical surfaces.

Grinding the Slab

Our crew ran diamond grinding equipment across all 413 square feet, working through every zone including the heavily pitted and spalled areas until the slab was fully open and clean. The grinding pulled off the deteriorated surface layer and gave the concrete the profile it needed to hold repair compound and coating. We vacuumed the floor thoroughly before moving to repairs.

Repairing the Damage

The scale of deterioration at this property demanded serious repair work. Our crew spread mender compound across every heavily pitted zone, pressing the material deep into the voids and troweling it level with the surrounding slab. We pressed more compound into each crack, brought it flush, and gave everything full cure time before moving forward.

Applying the Coating

The homeowner chose Domino, a bold black-and-white fleck blend. Our crew applied the MC-4.5 polyurea-polyaspartic system across the fully prepared slab, broadcast the Domino flake into the wet base coat, then laid a heavy clear topcoat carrying Shark Grip traction additive over the full surface. Our crew ran the coating wall to wall with no transitions.

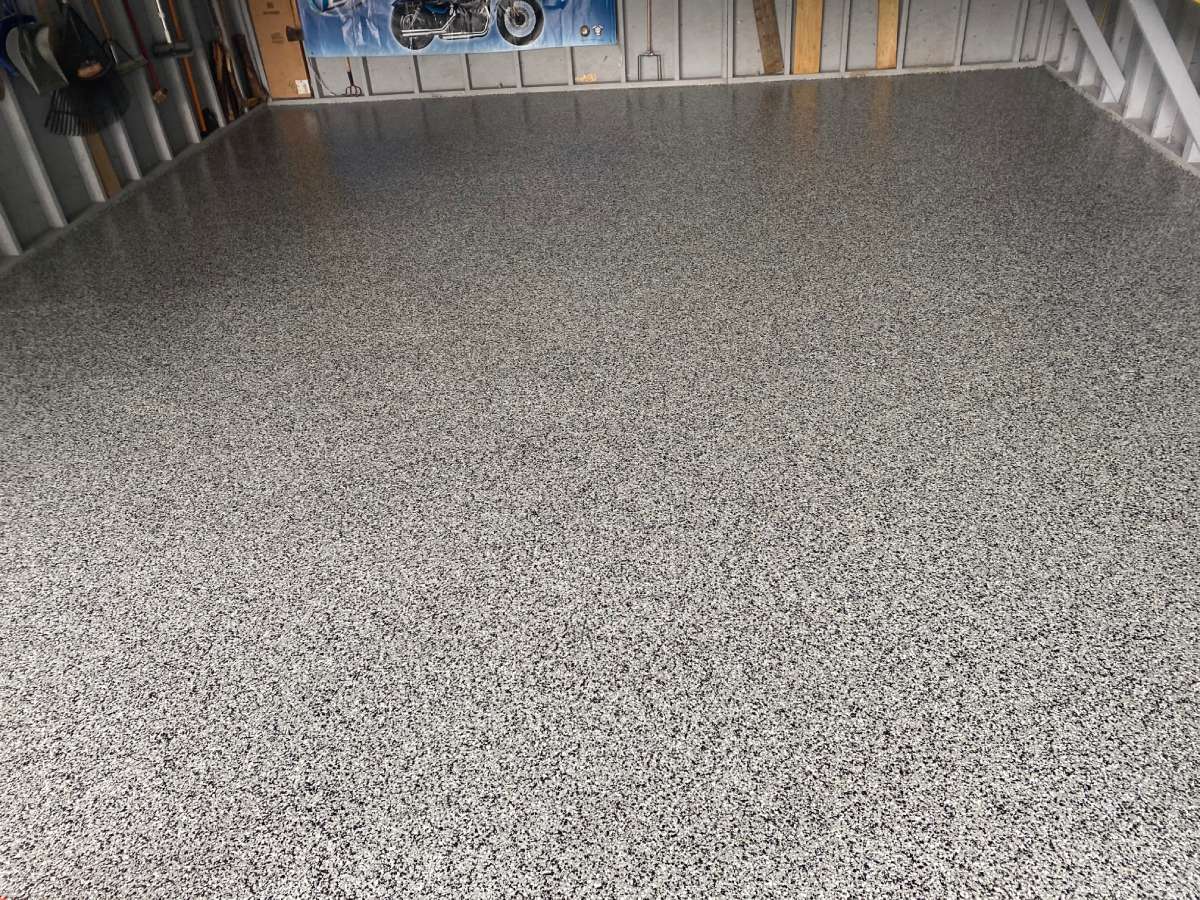

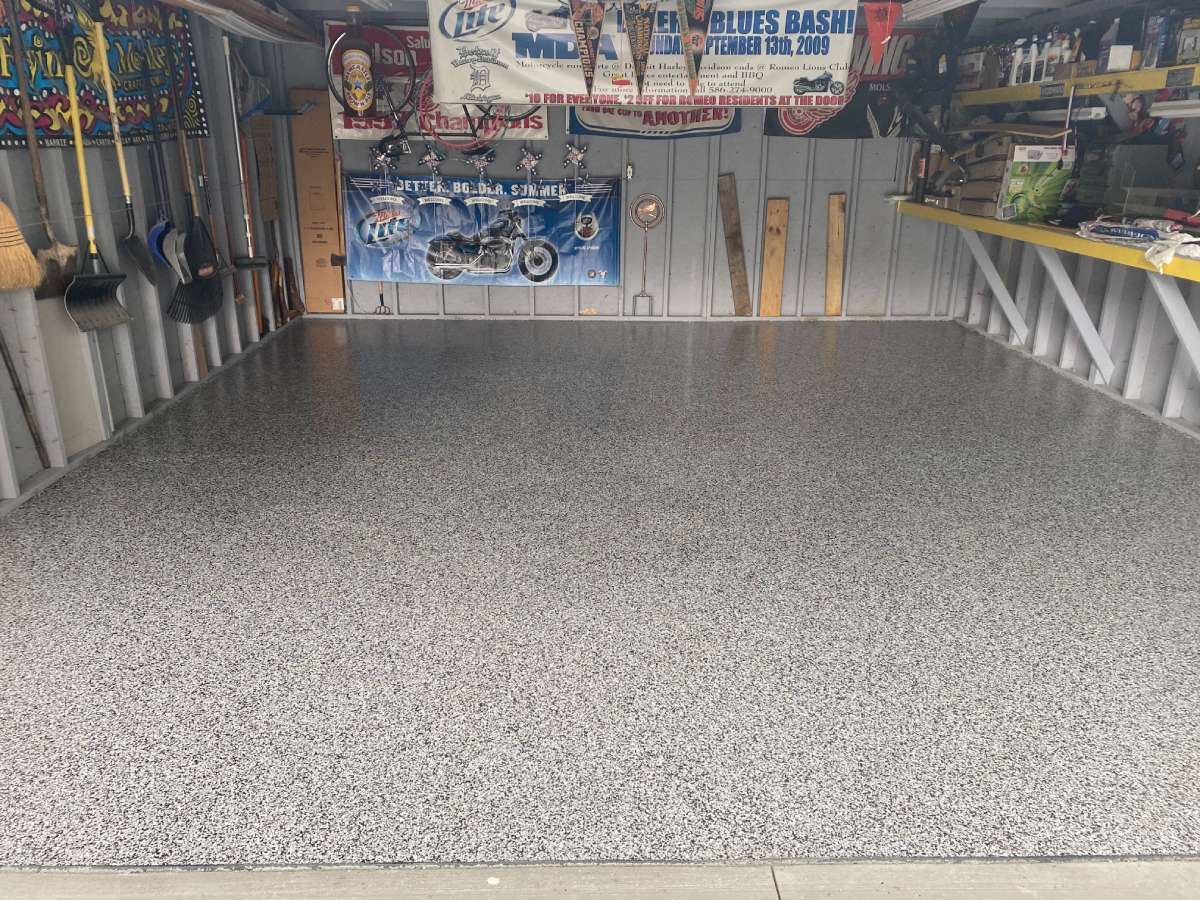

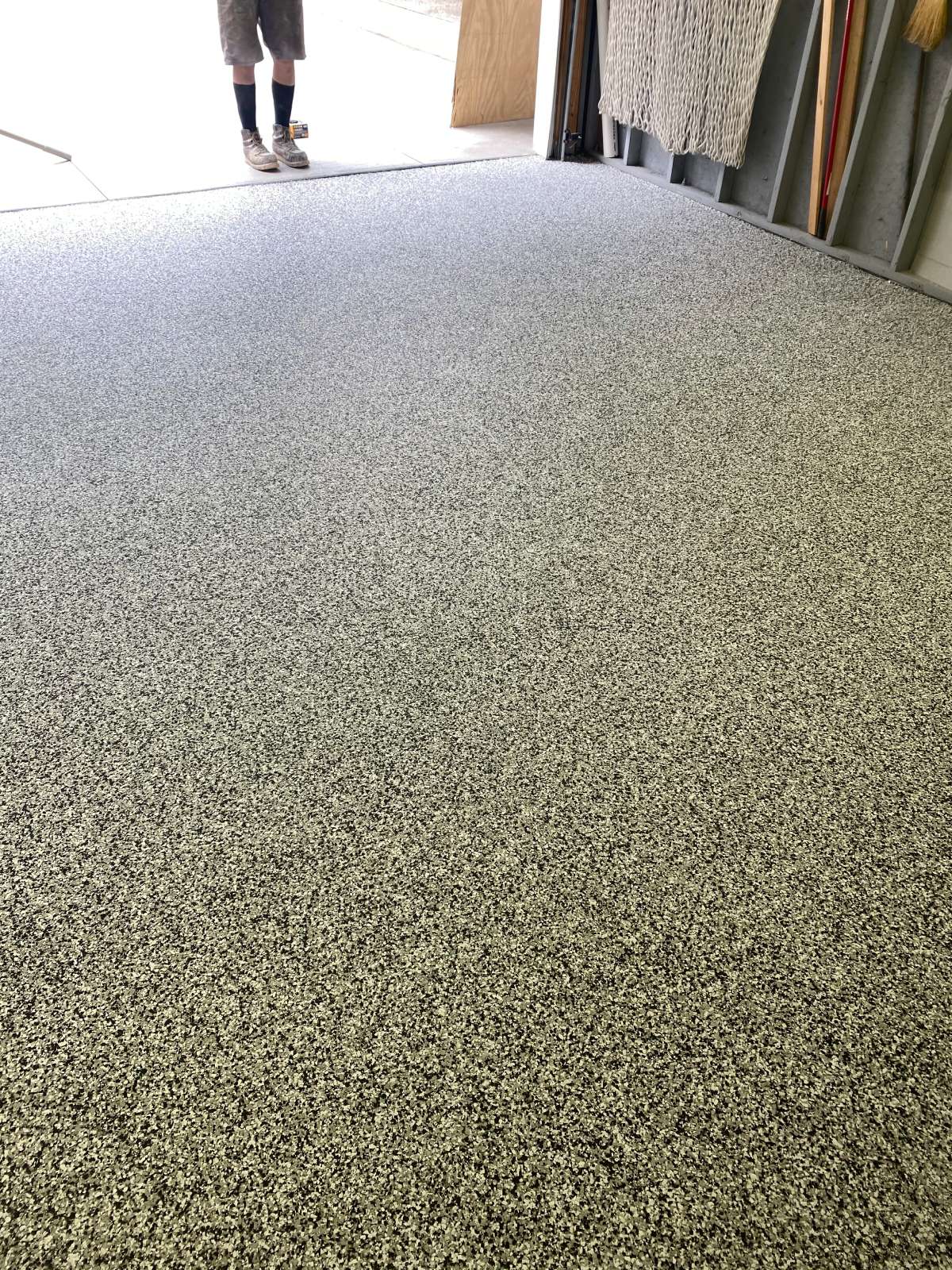

The Finished Floor

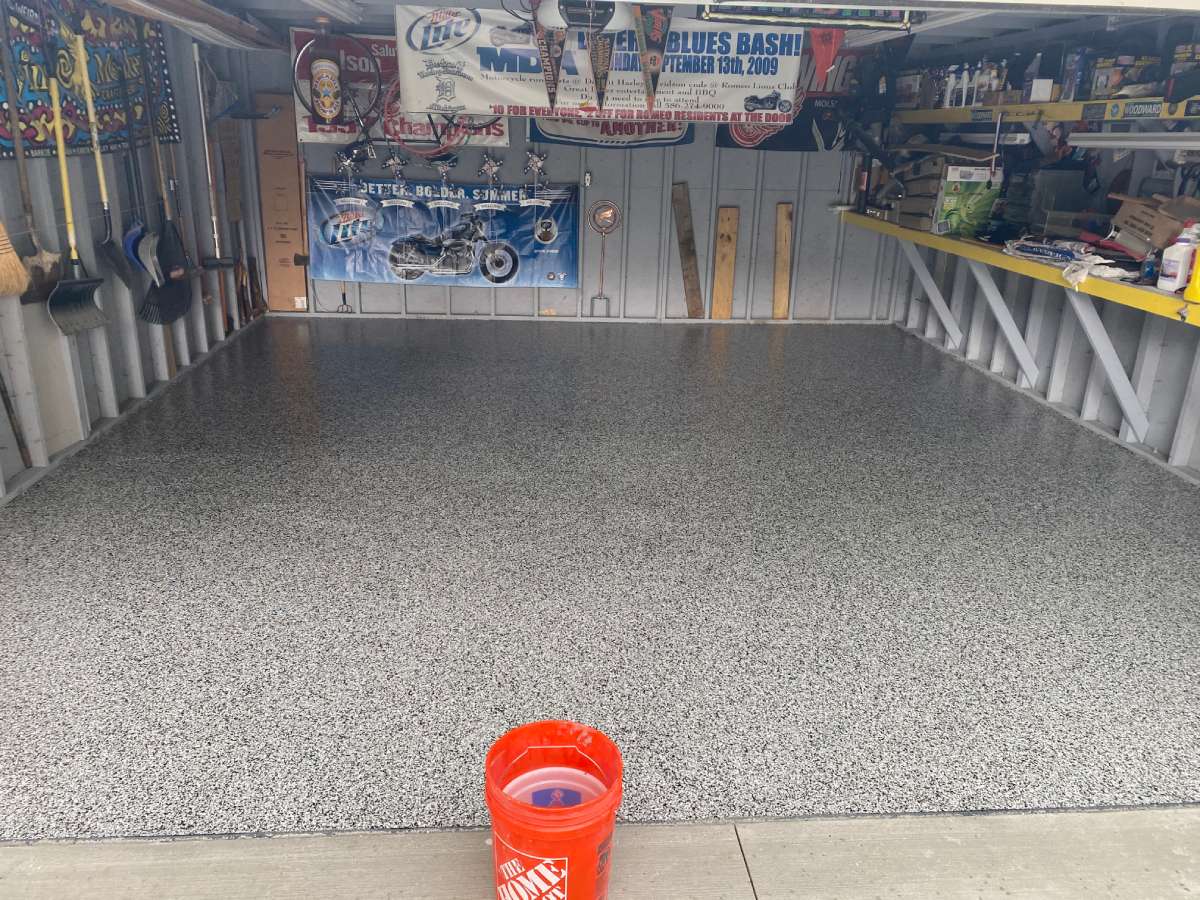

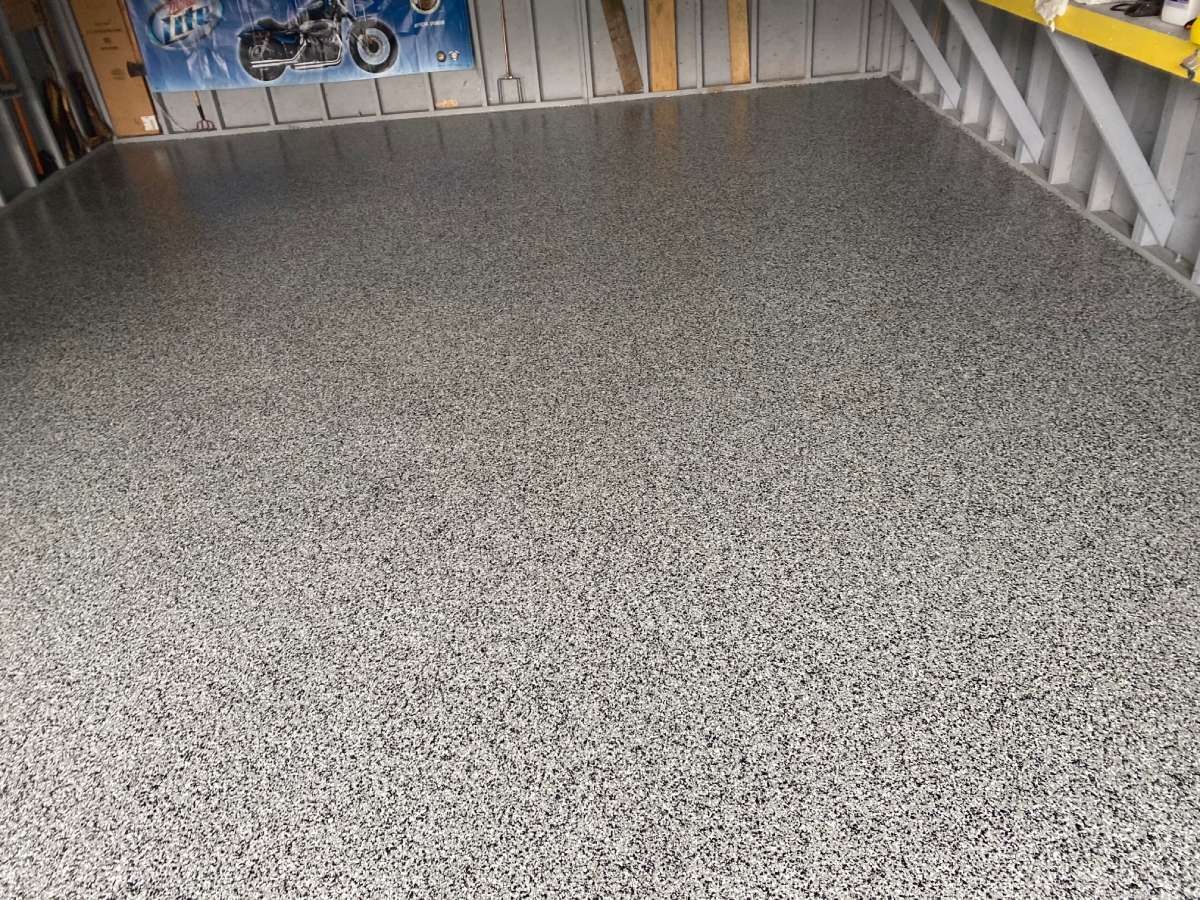

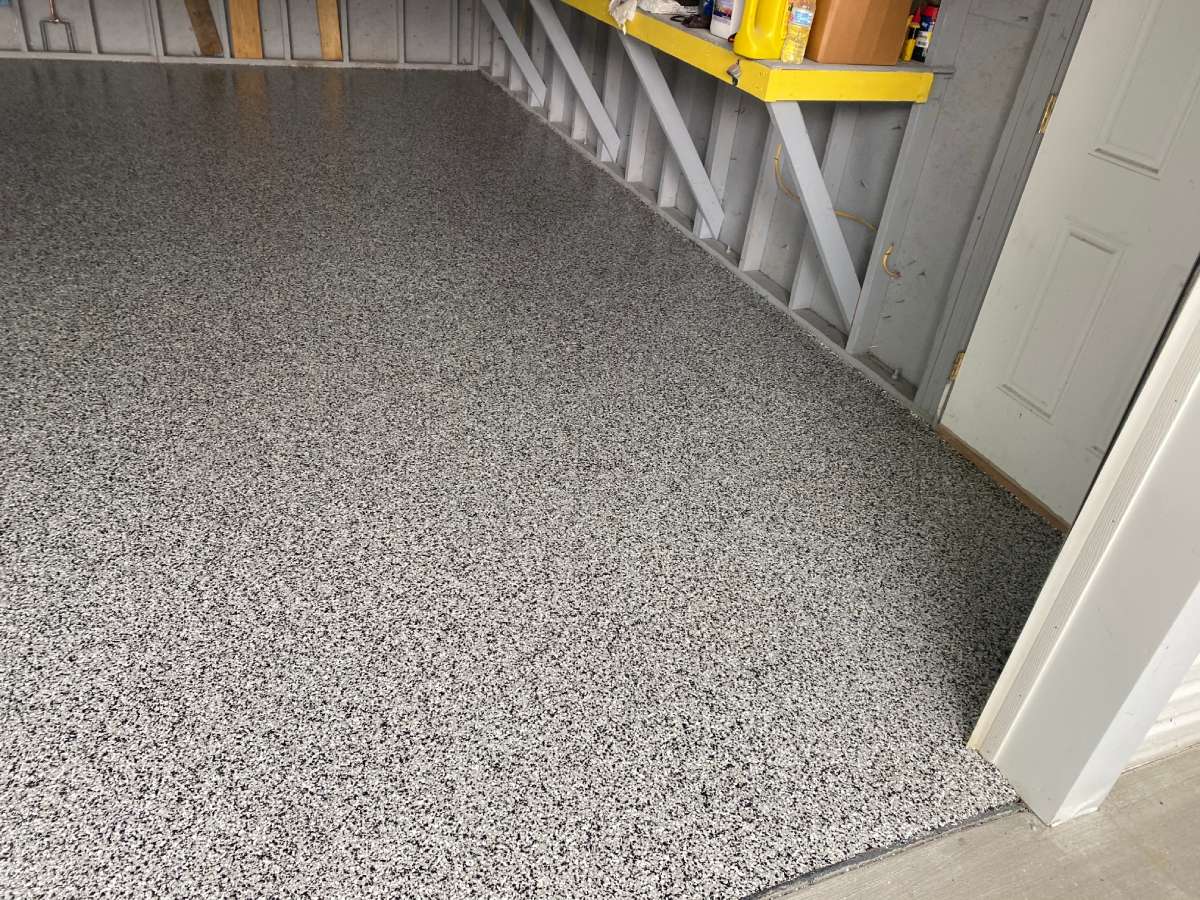

Our crew left a floor that bore no resemblance to what they found on arrival. Domino covers all 413 square feet in a sharp, consistent finish. Anyone walking into that garage sees the high-contrast black-and-white fleck pattern clearly under any light. Shark Grip gives solid grip underfoot across the full slab. Our crew sealed and protected every square foot.

NEW Garage Floor Coating
on South Lyon

South Lyon, Pontiac, MI

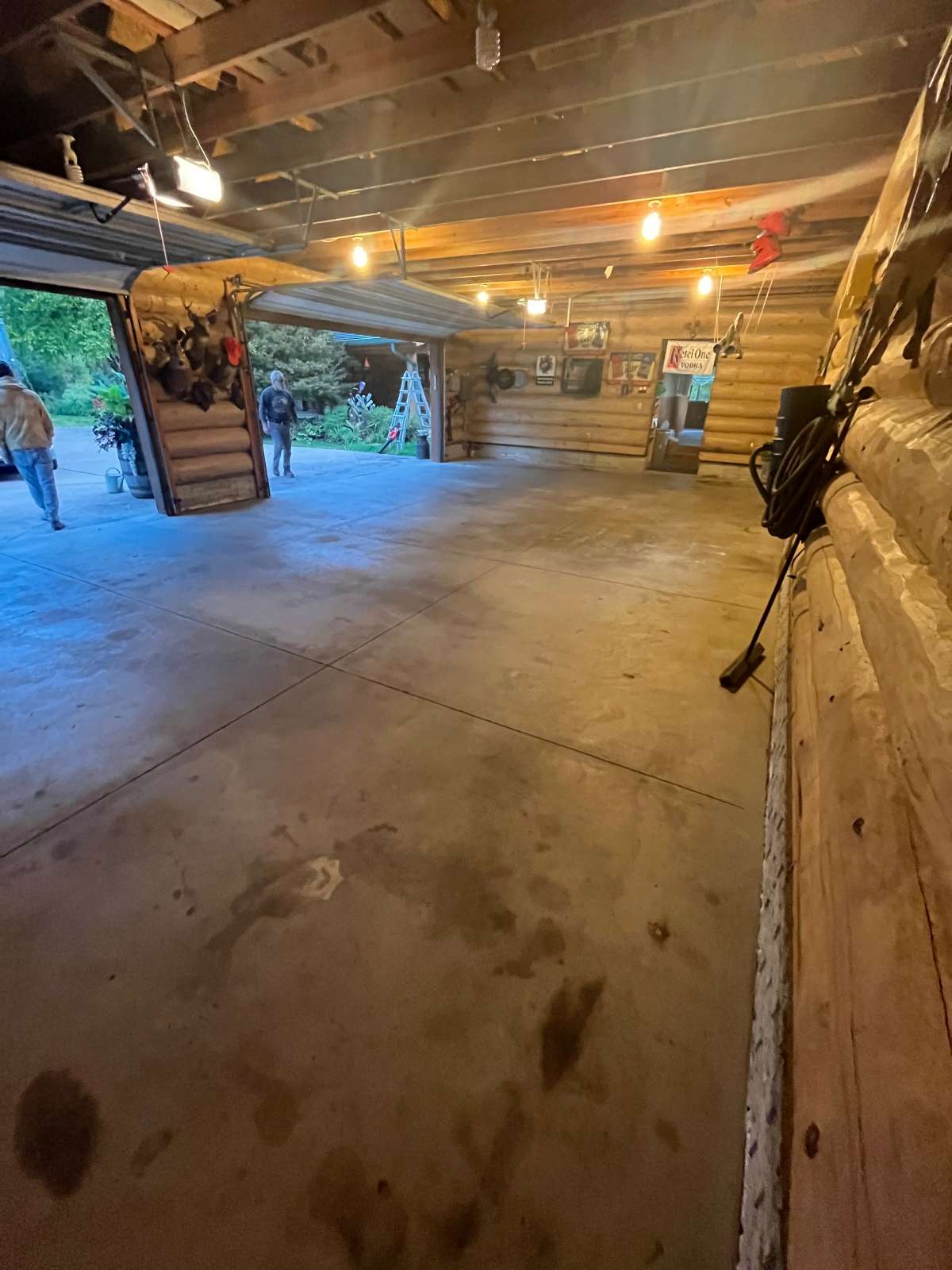

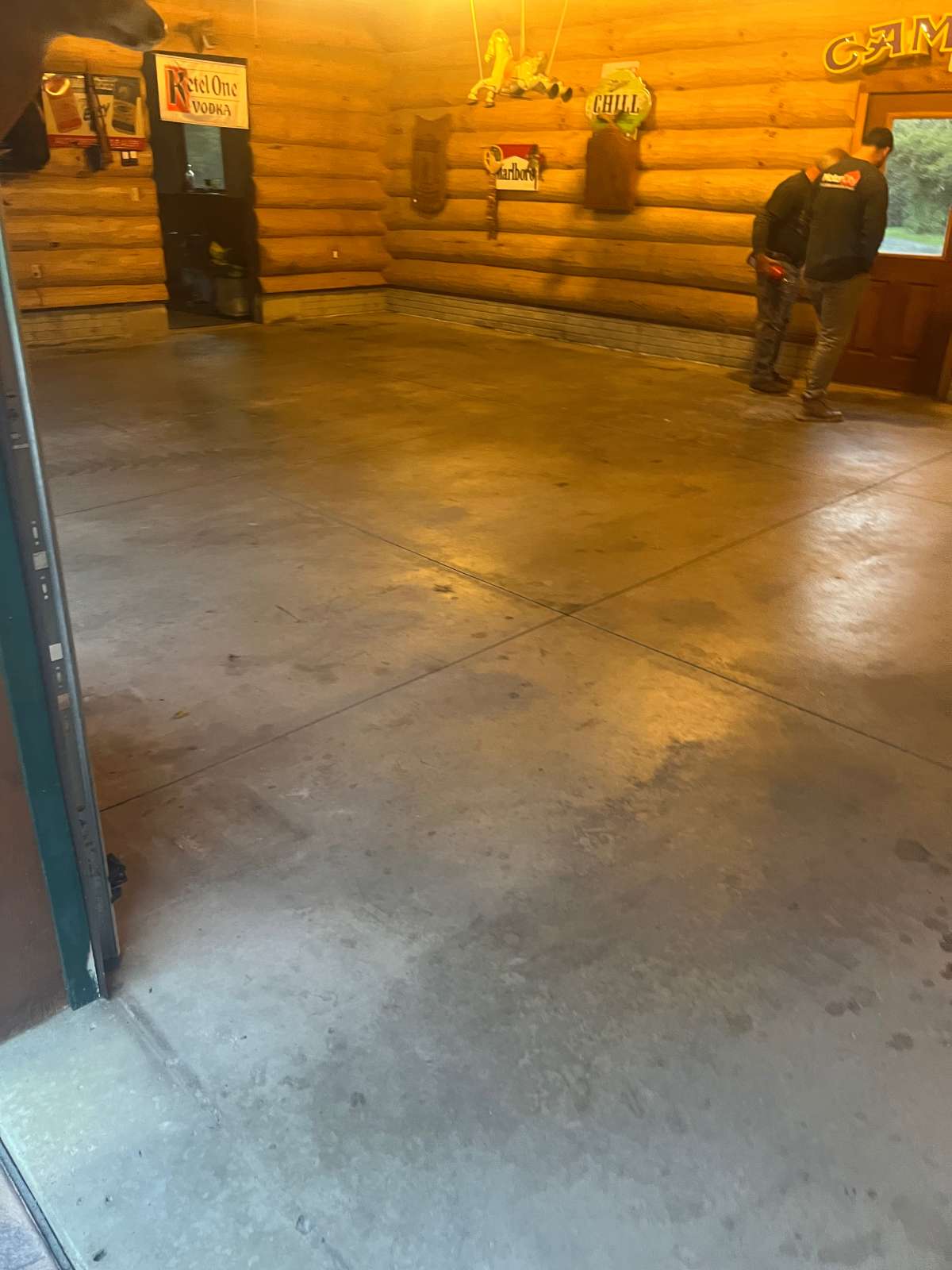

The Slab on Arrival

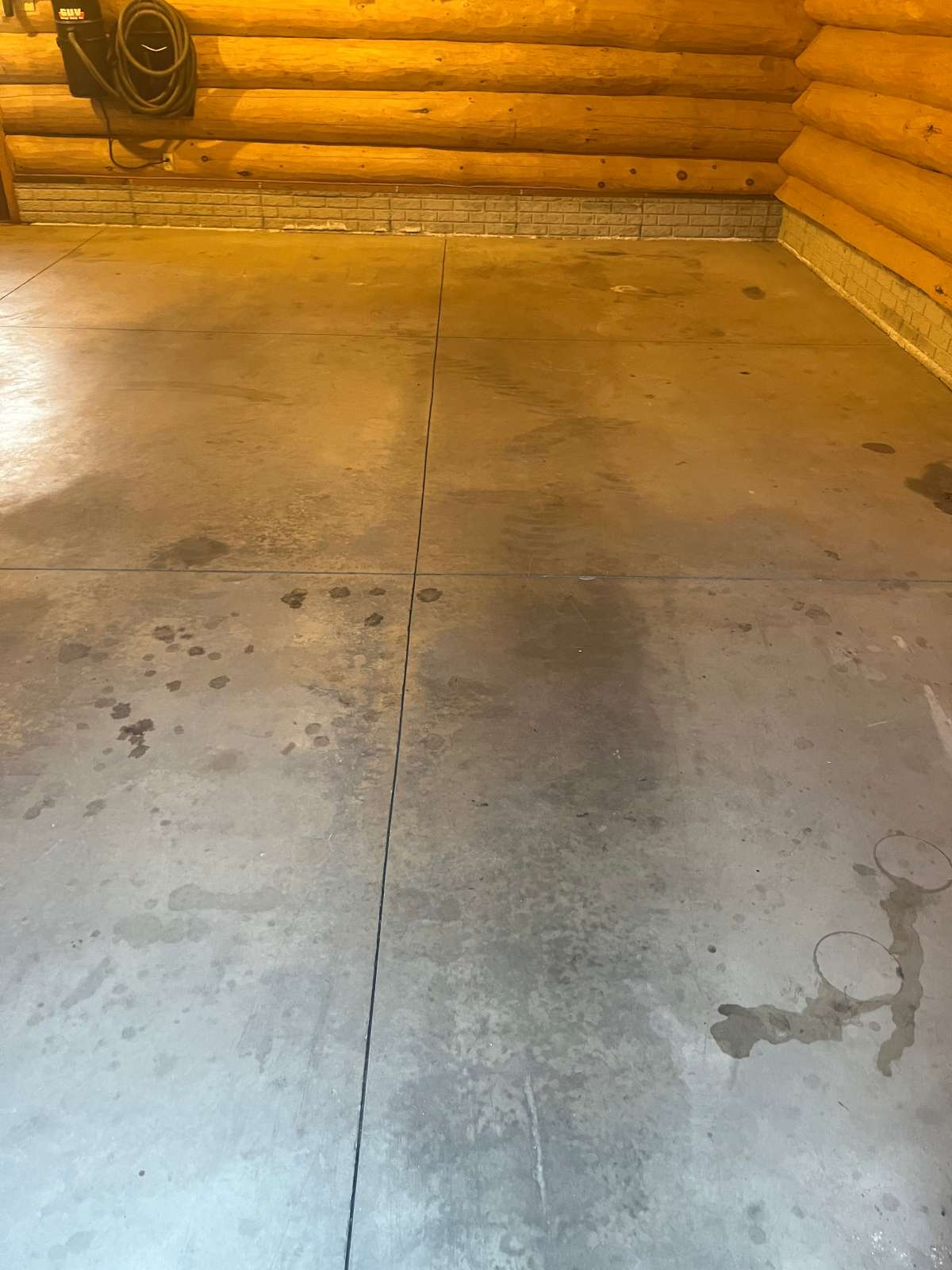

At 943 square feet, this was the largest floor in the Pontiac batch. Oil staining had spread across multiple areas of the slab, and general surface contamination covered the rest. Our crew spotted minor pitting in several spots on closer inspection. No cracks required major repair. The slab was structurally sound, and the job called for preparation and surface restoration rather than full remediation. The project covered the flat floor only, no steps or verticals.

How We Opened the Concrete

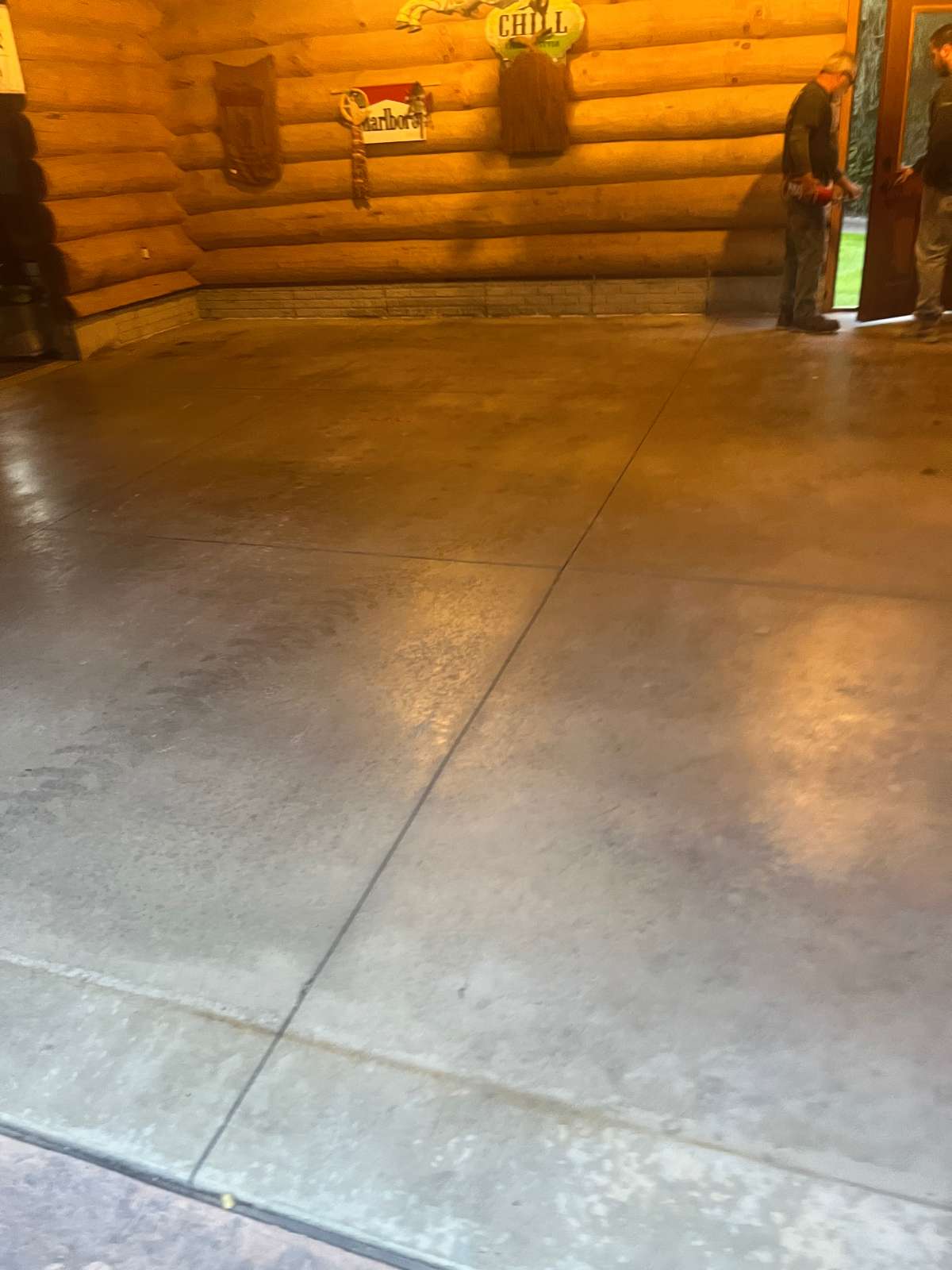

Our crew ran diamond grinding equipment across all 943 square feet, making multiple passes across the contaminated areas to ensure the concrete was fully open before any repair material went down. With each pass, we pulled the laitance layer off the surface and exposed the minor pitting zones across the slab. We vacuumed thoroughly after each pass before moving to repair.

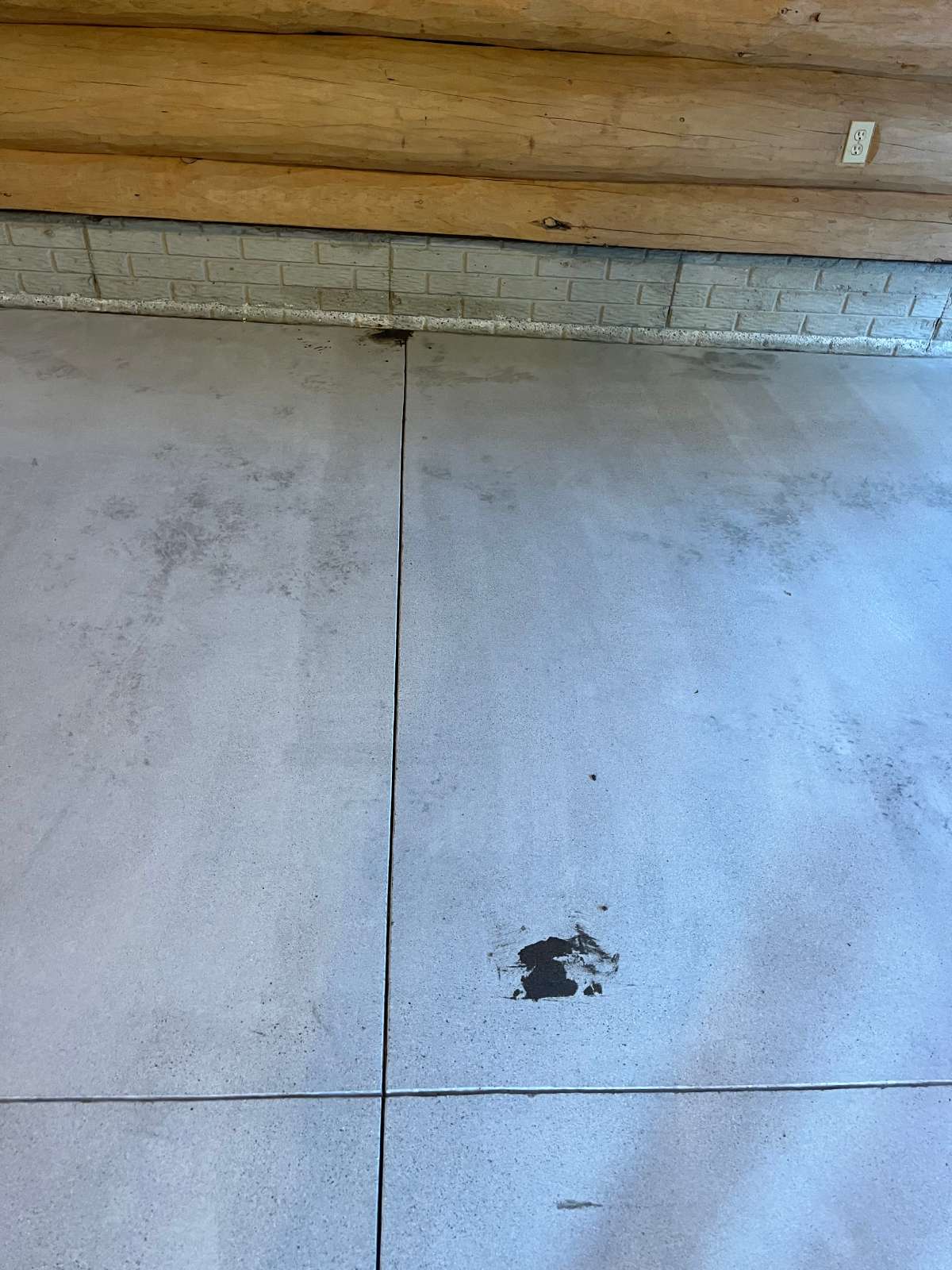

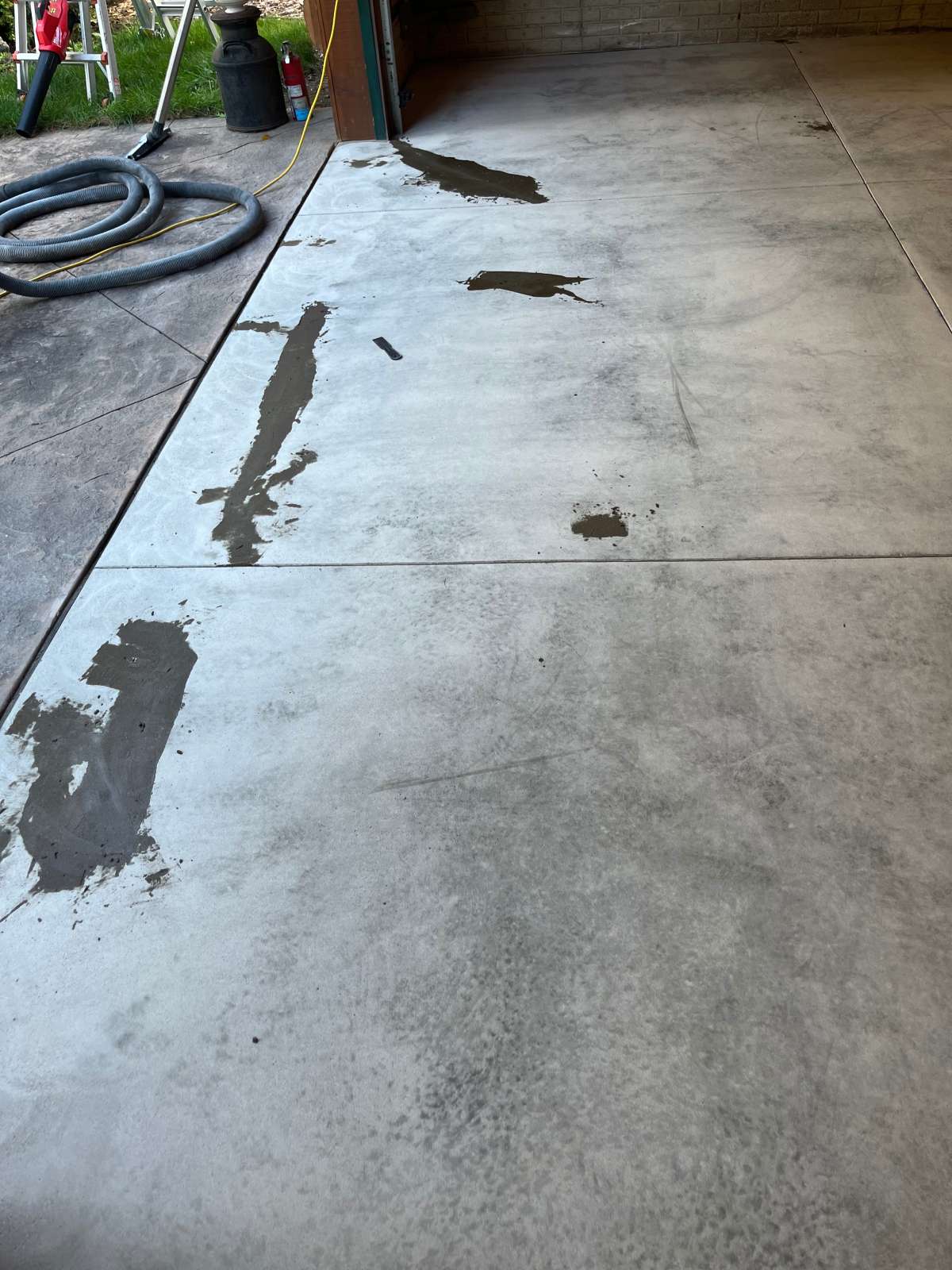

Spot Priming the Pitted Areas

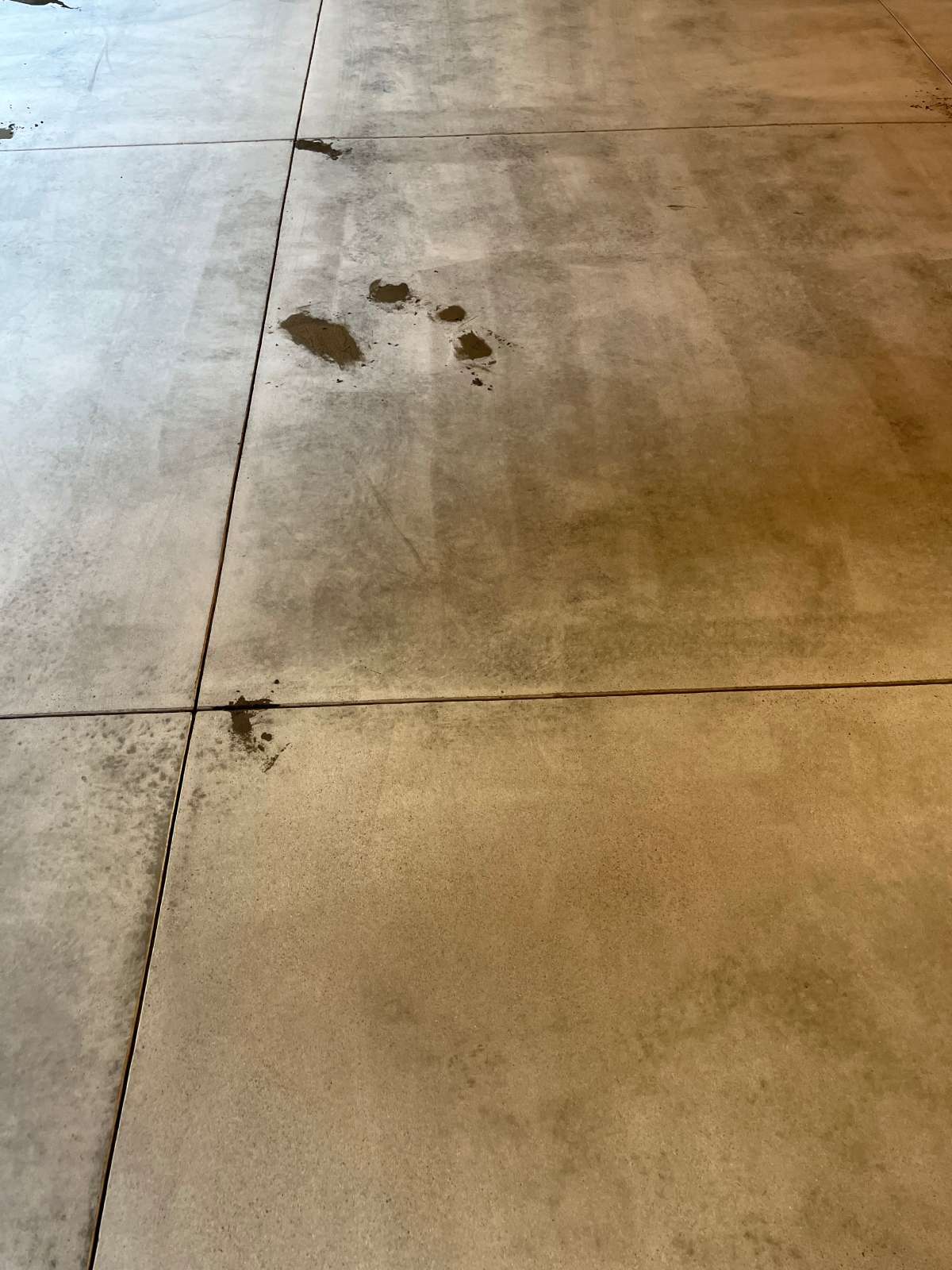

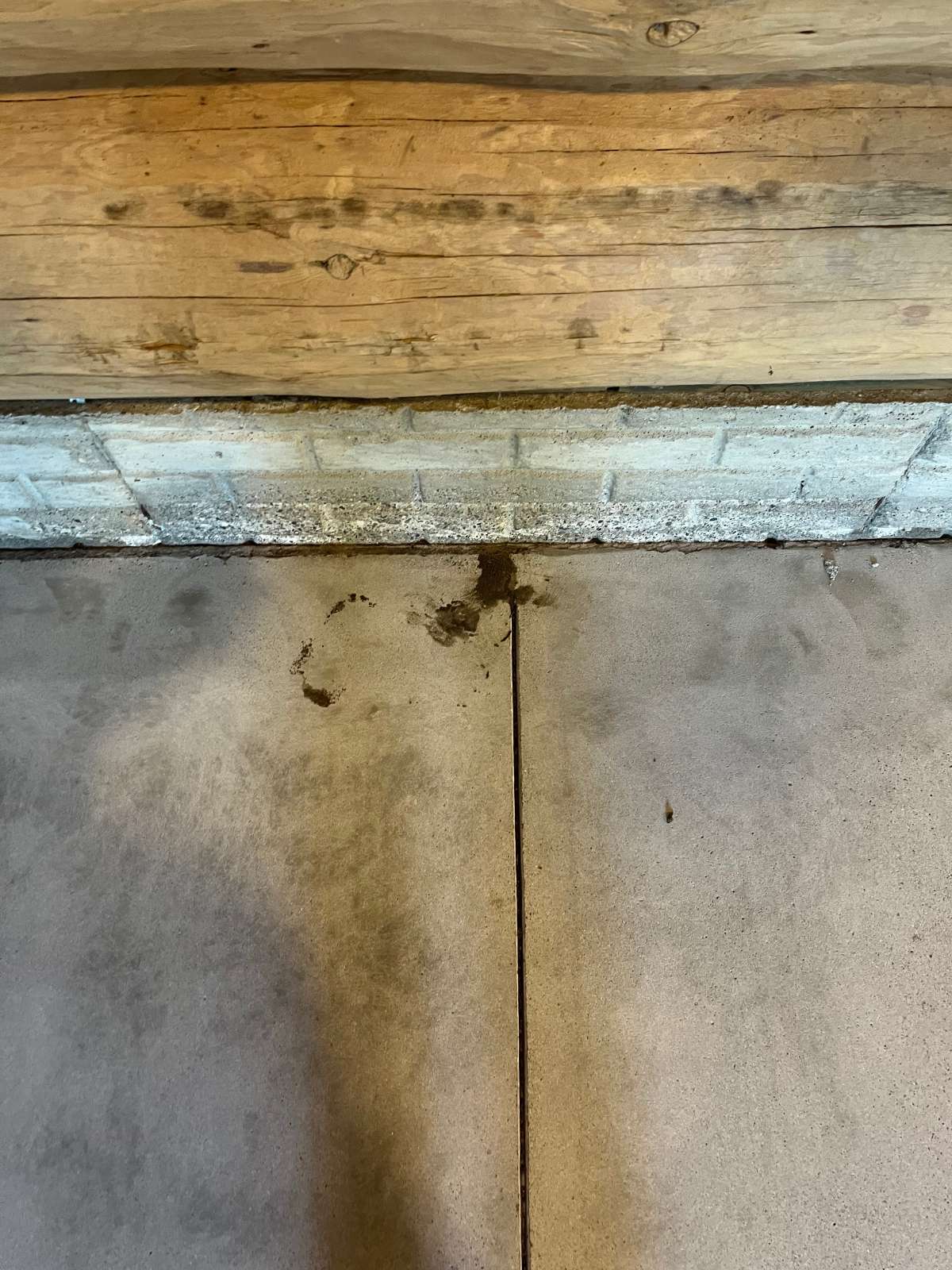

Rather than flooding the slab with mender compound, our crew applied MR-50 primer directly to the affected zones, targeting the joint lines and the pitted spots. We used MR-50 as both a penetrating bond coat and a repair application across those areas. In the photos, you can see the precise, targeted coverage pattern clearly: our crew hit every zone that needed it and left the sound areas untouched. We gave everything full cure time before the base coat went down.

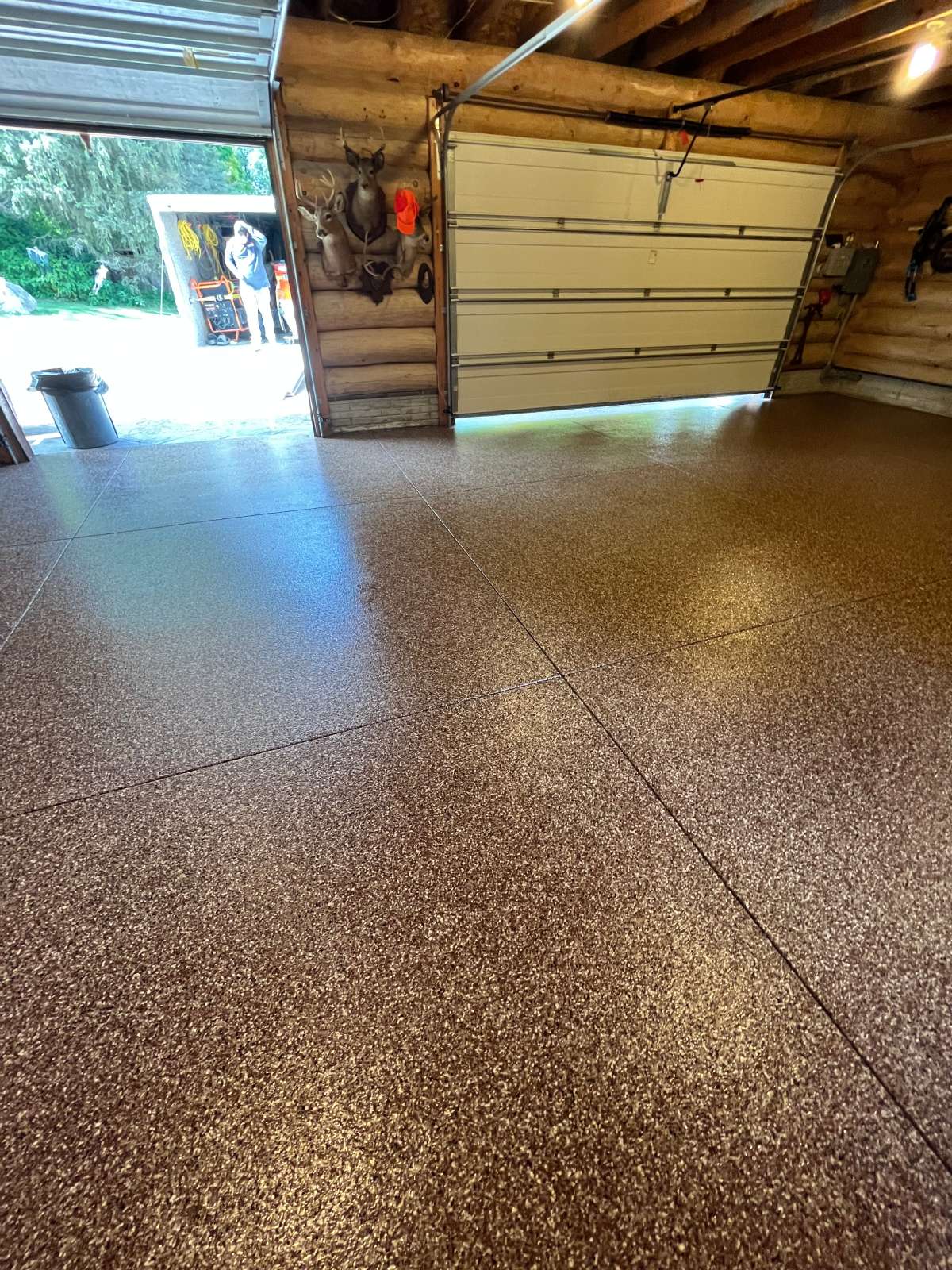

The Color and System

The homeowner selected Chestnut, a warm blend of brown, tan, and gold flecks. Our crew applied the MC-4 polyurea-polyaspartic system across all 943 square feet, broadcasting Chestnut into the wet base coat across the full slab, then locked everything in with a heavy clear topcoat carrying 16-grit traction additive. We ran the coating wall to wall with no steps or vertical transitions.

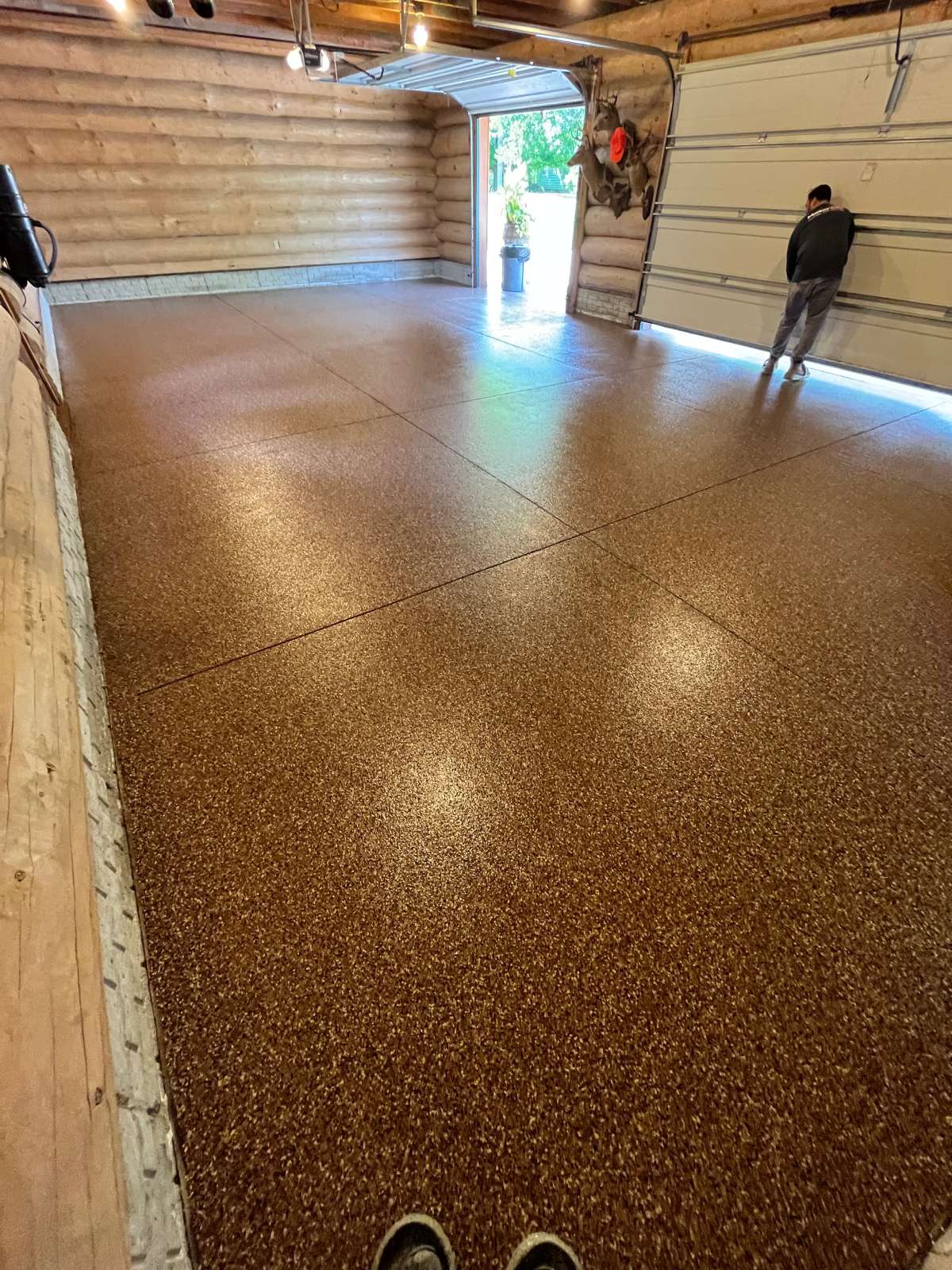

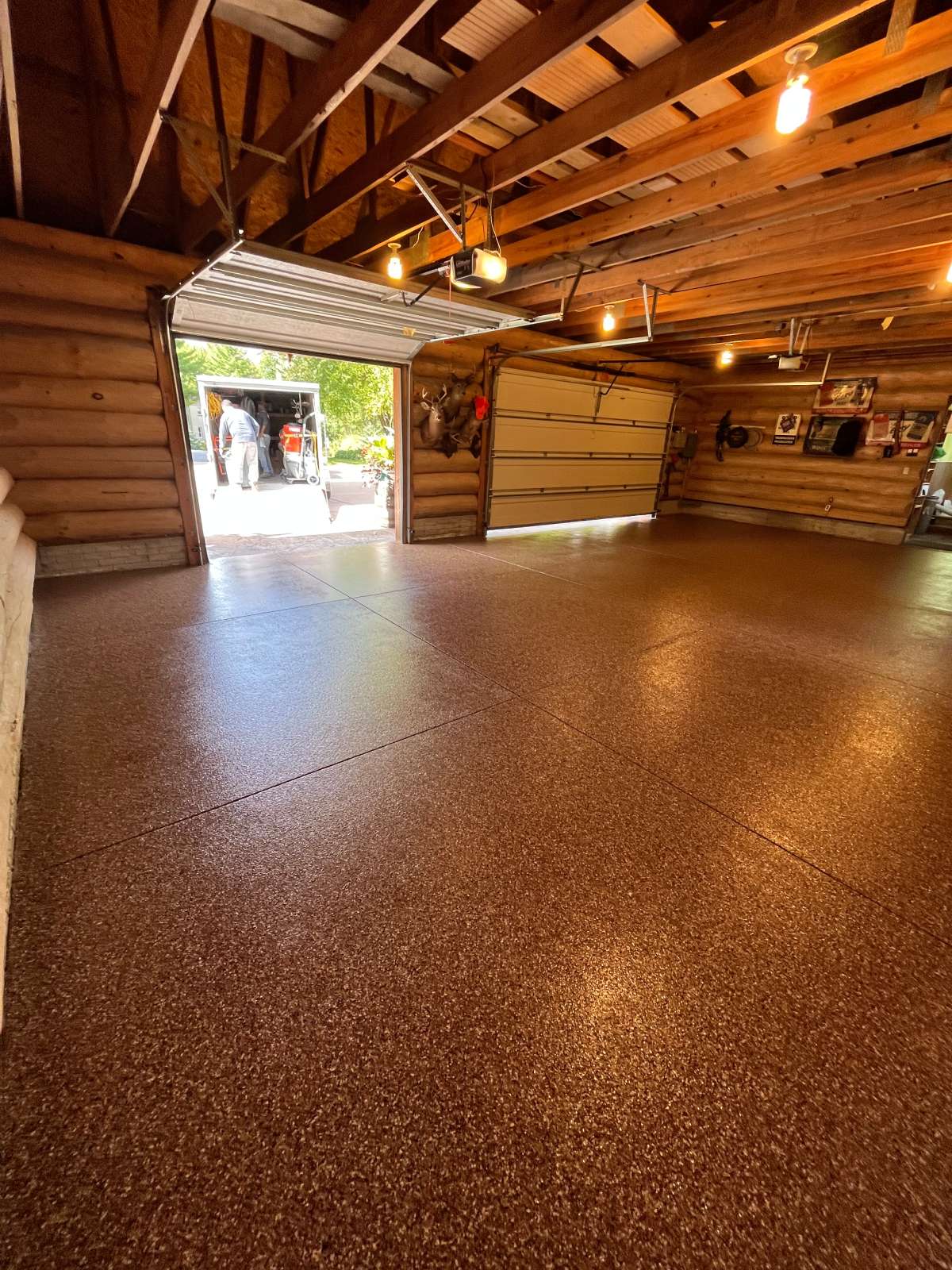

943 Square Feet, Fully Transformed

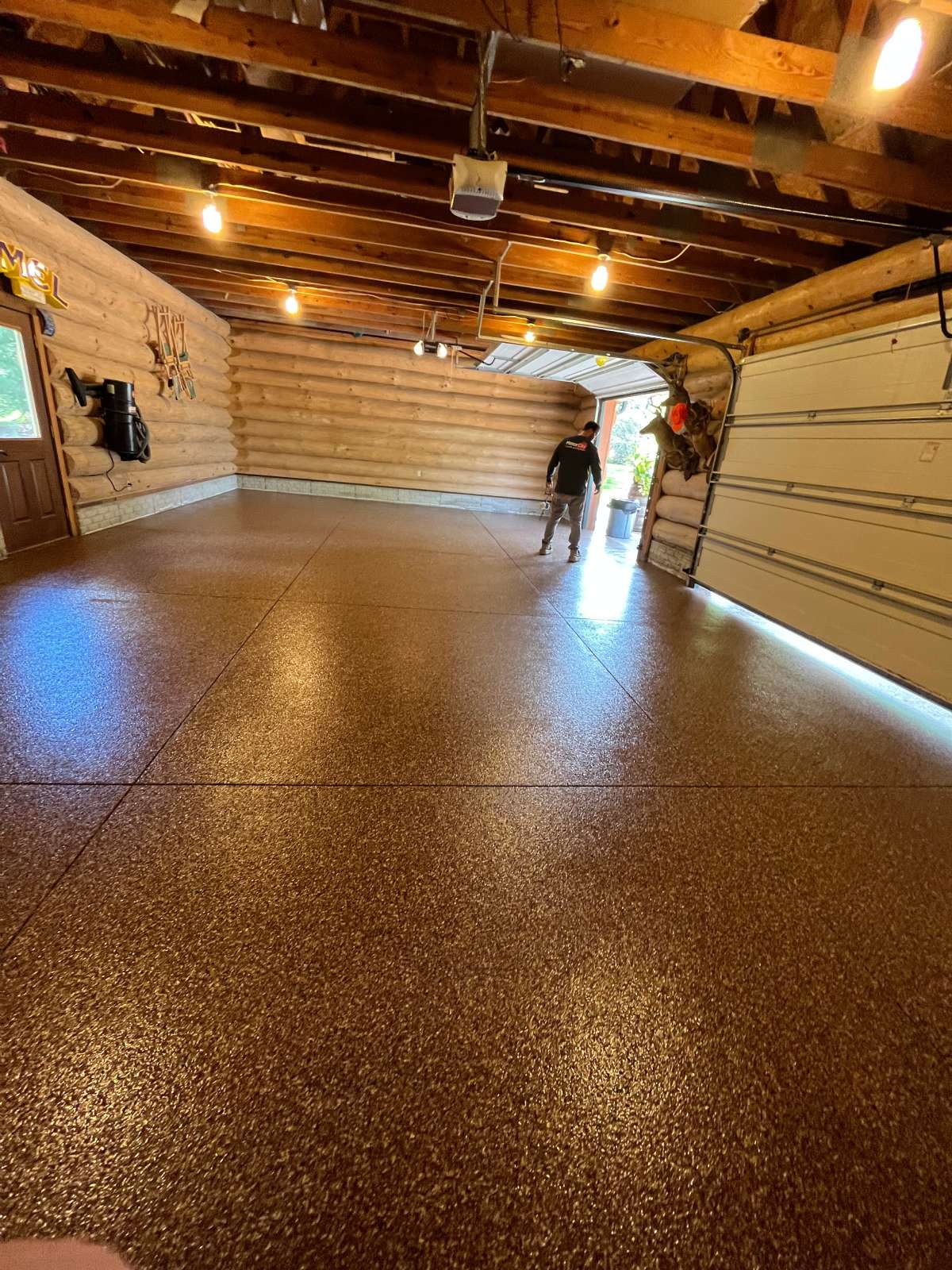

Our crew delivered a floor that looked nothing like the oil-stained slab they started with. We covered all 943 square feet in Chestnut, wall to wall. The warm brown tone pairs naturally with the log cabin walls and stone base course in this space, and anyone walking into that garage sees the rich fleck pattern read well against the interior character. The 16-grit additive gives anyone walking on it firm, reliable grip underfoot.

NEW Garage Floor Coating
on Lasseigne

Lasseigne, Pontiac, MI

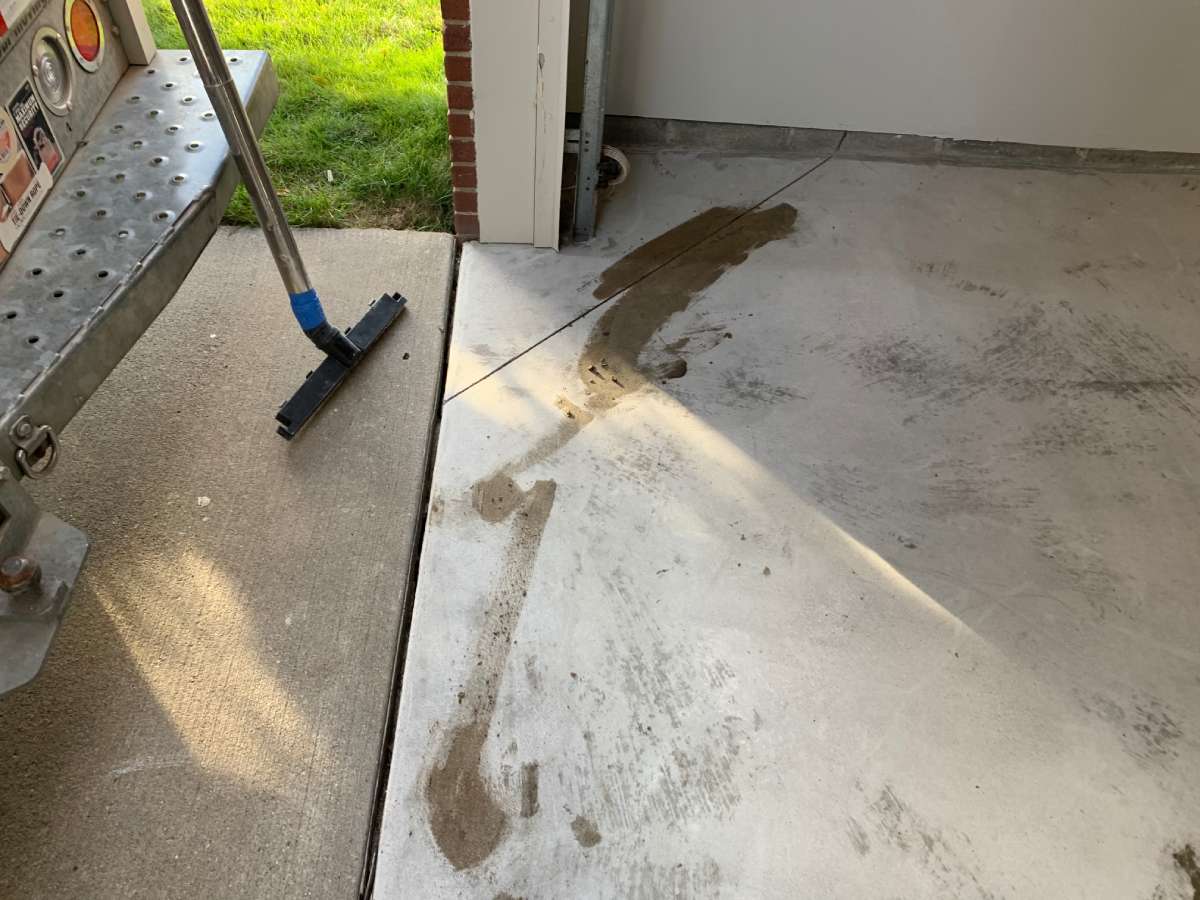

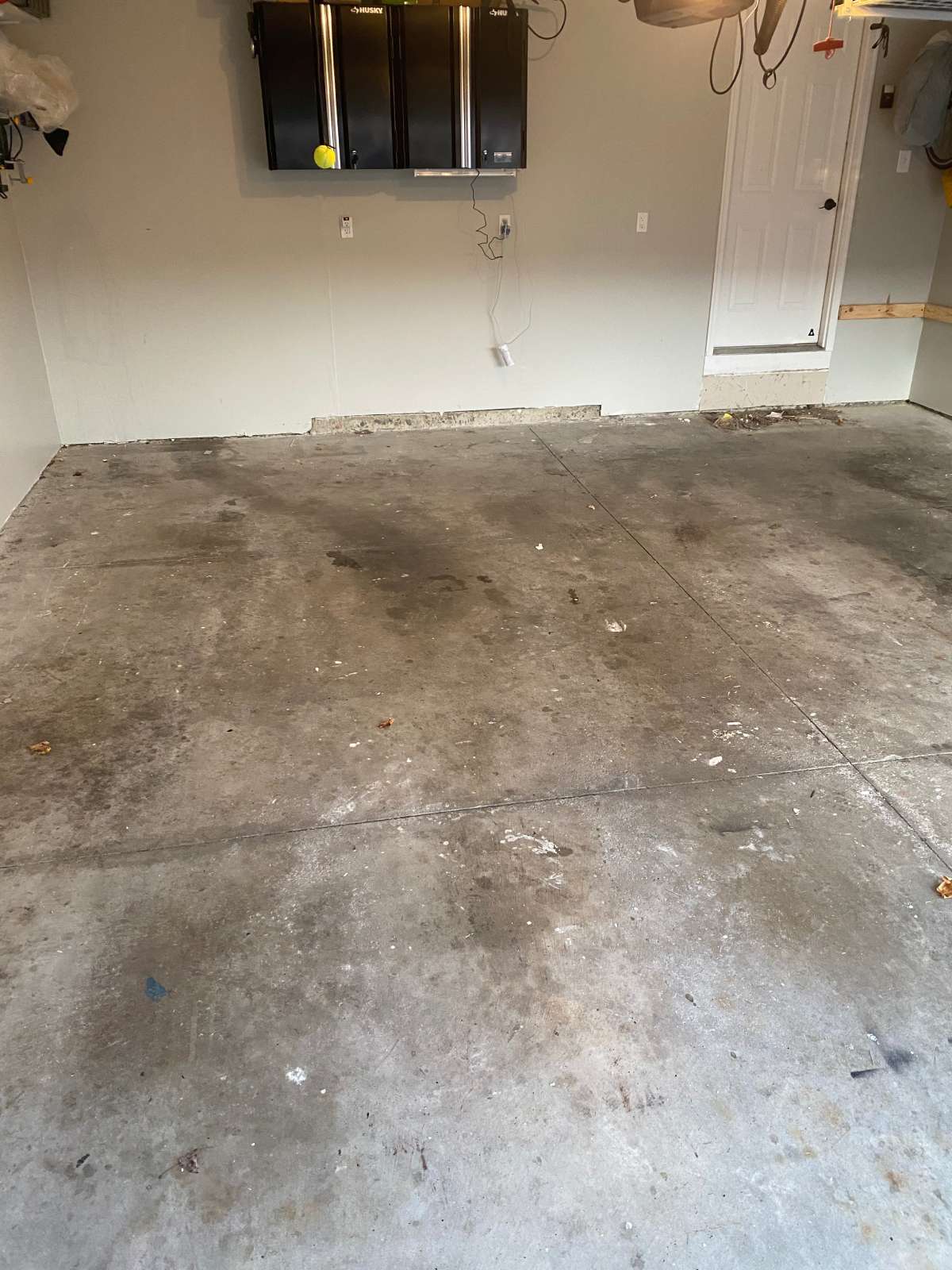

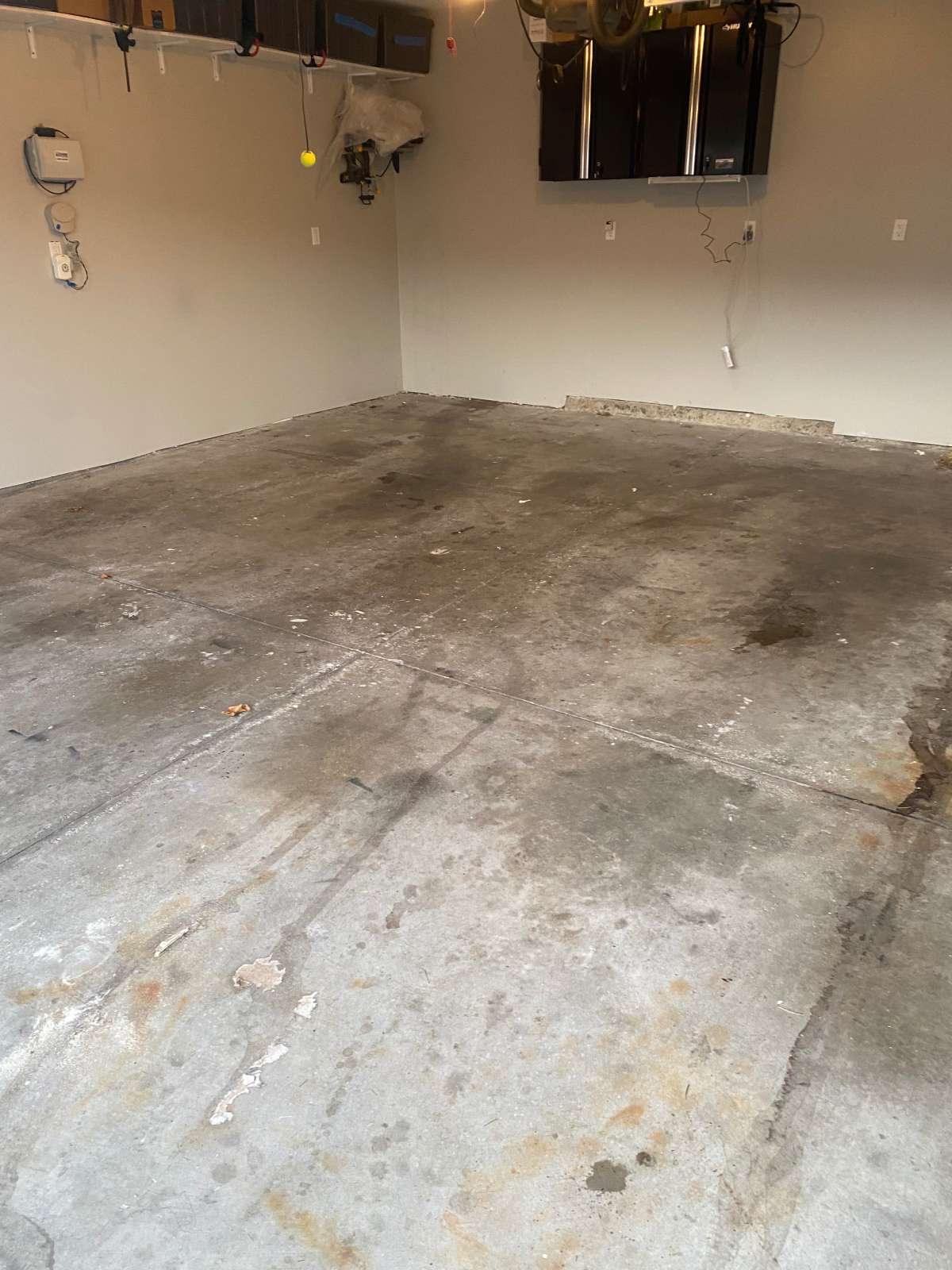

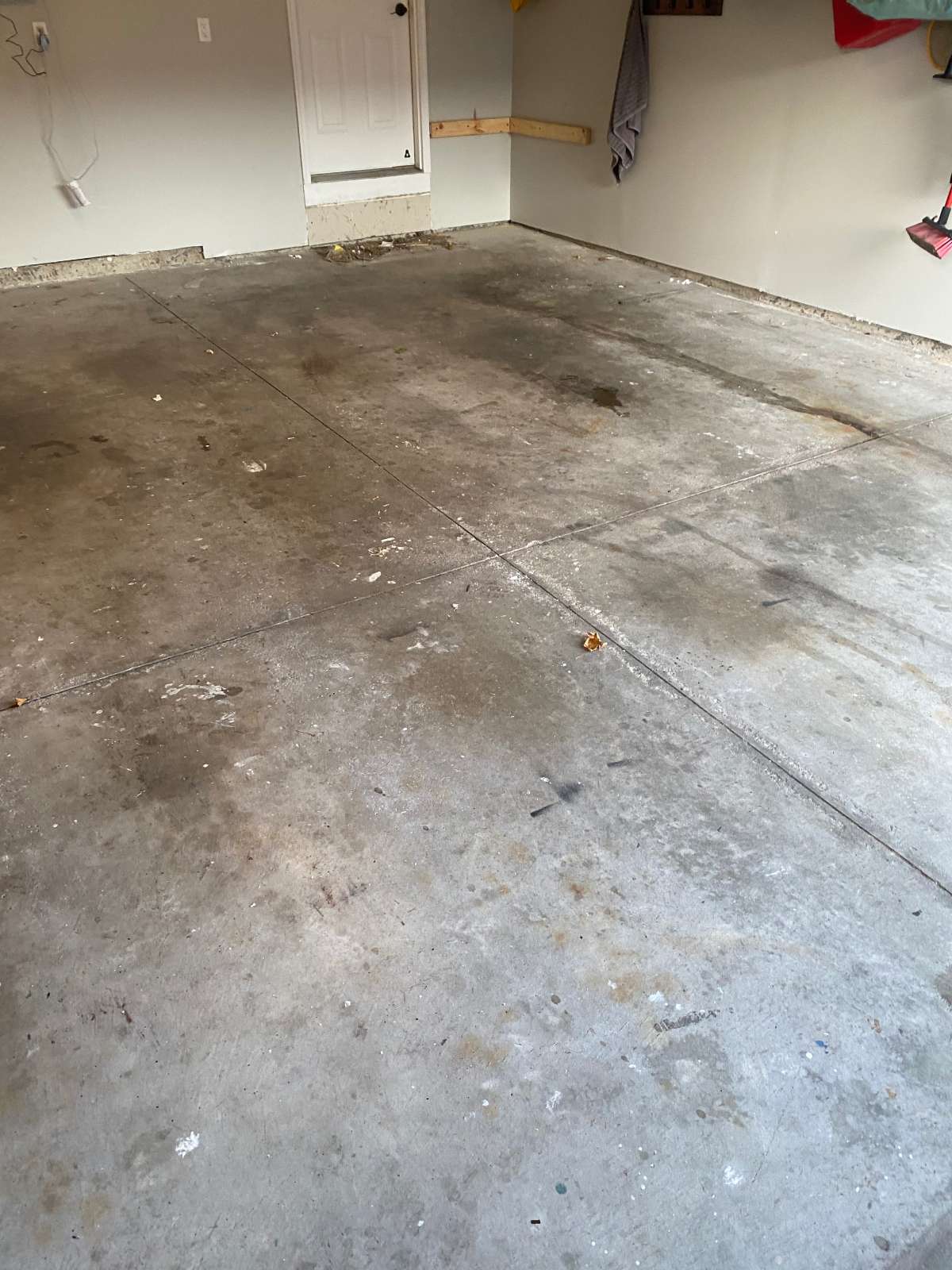

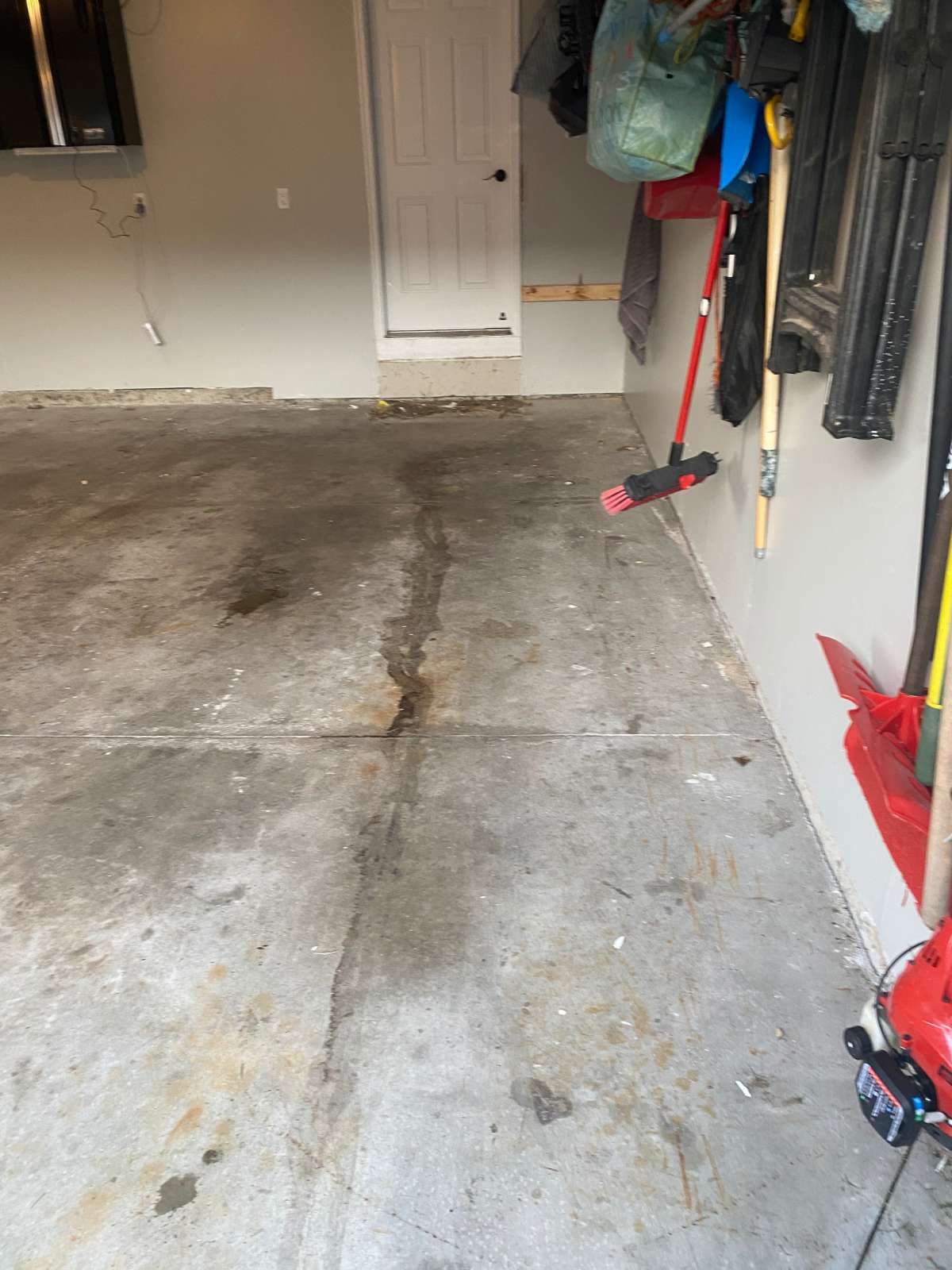

Starting Conditions

Grinding

Our crew diamond-ground the full 368 square feet, removing the laitance layer and opening the concrete throughout, including the contaminated zones and the deteriorated area near the expansion joint. We vacuumed the slab completely before touching any repairs.

Targeted Crack and Pit Repair

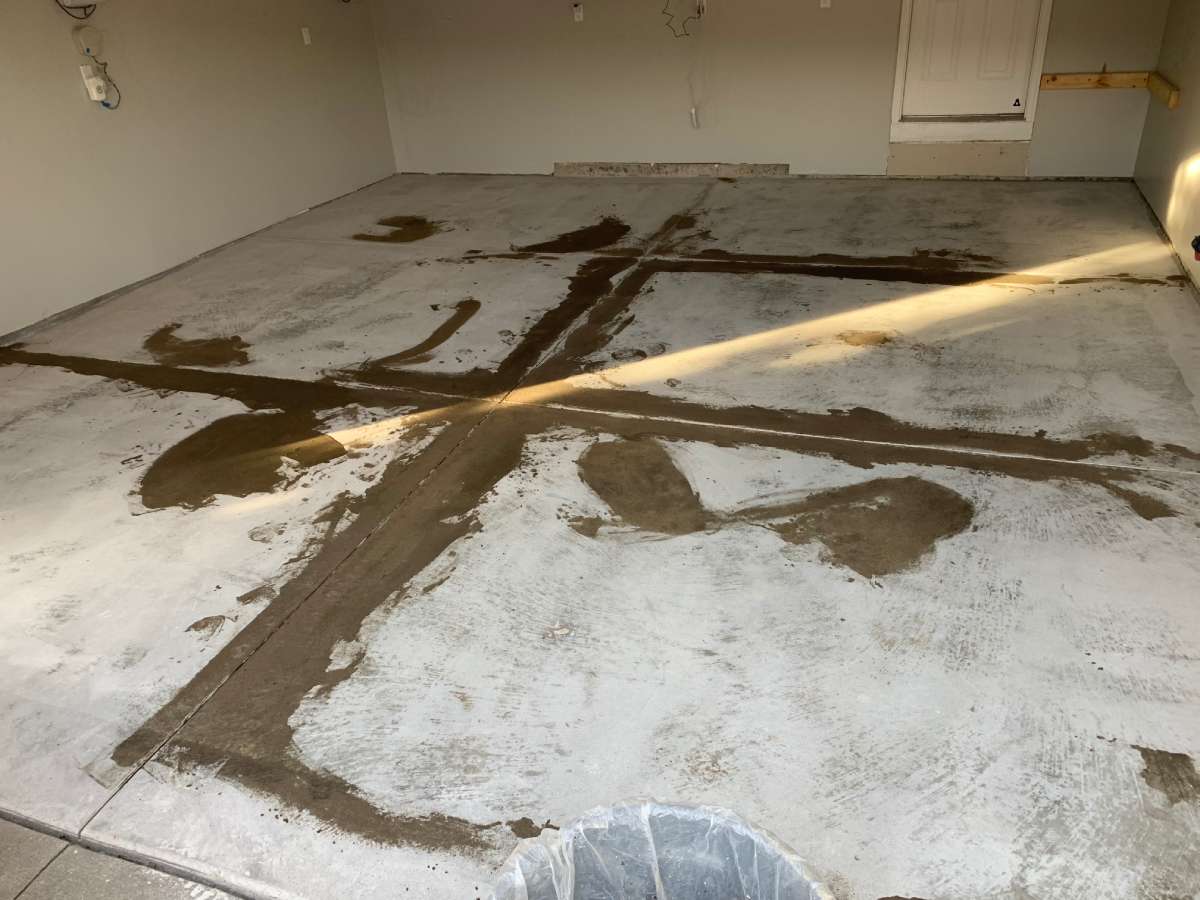

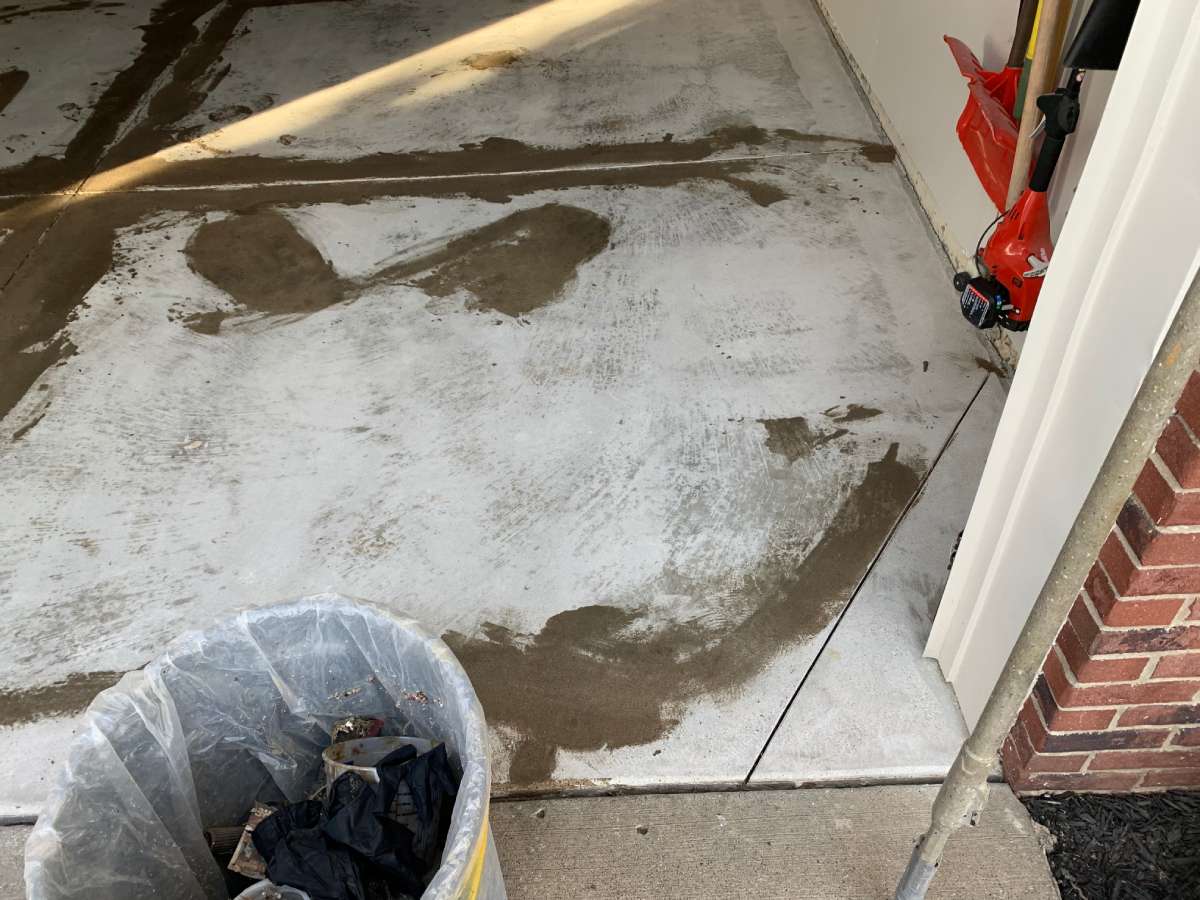

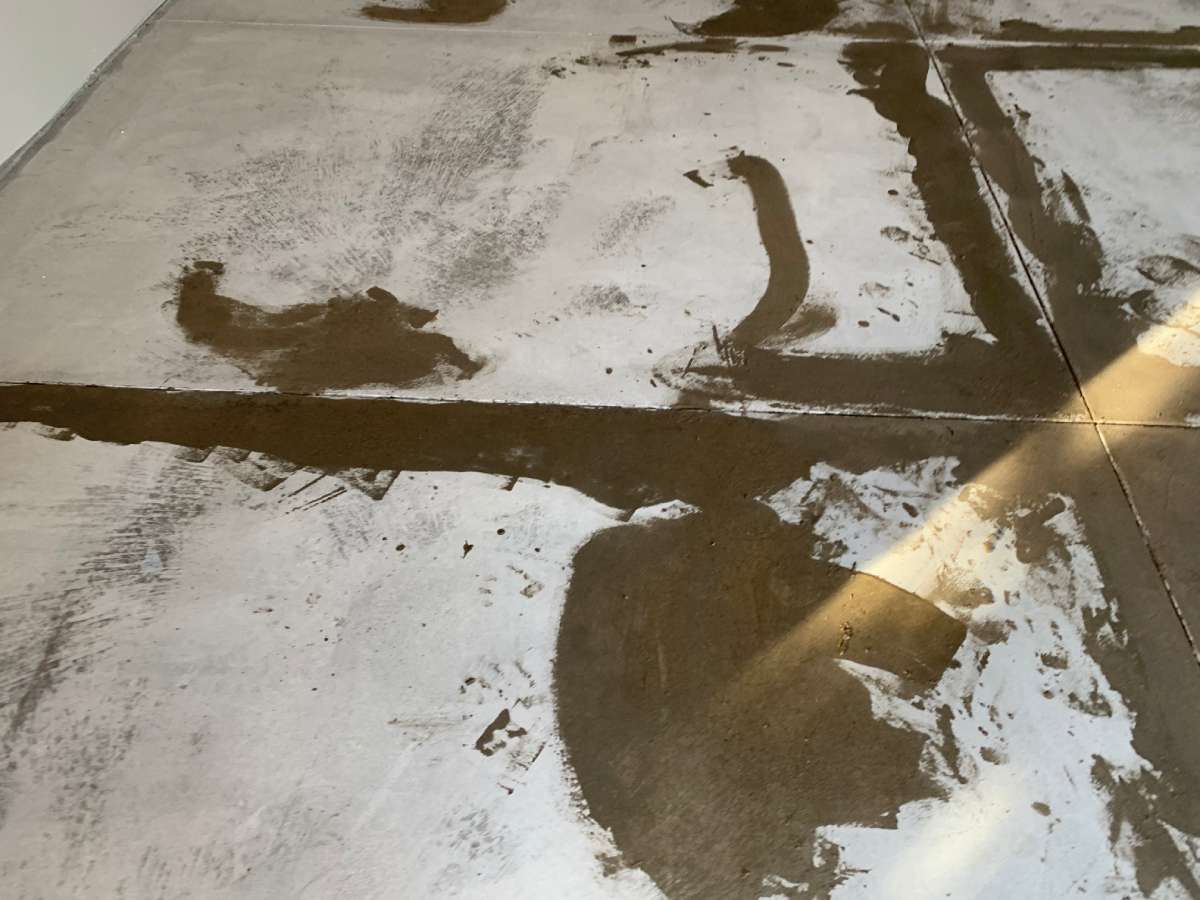

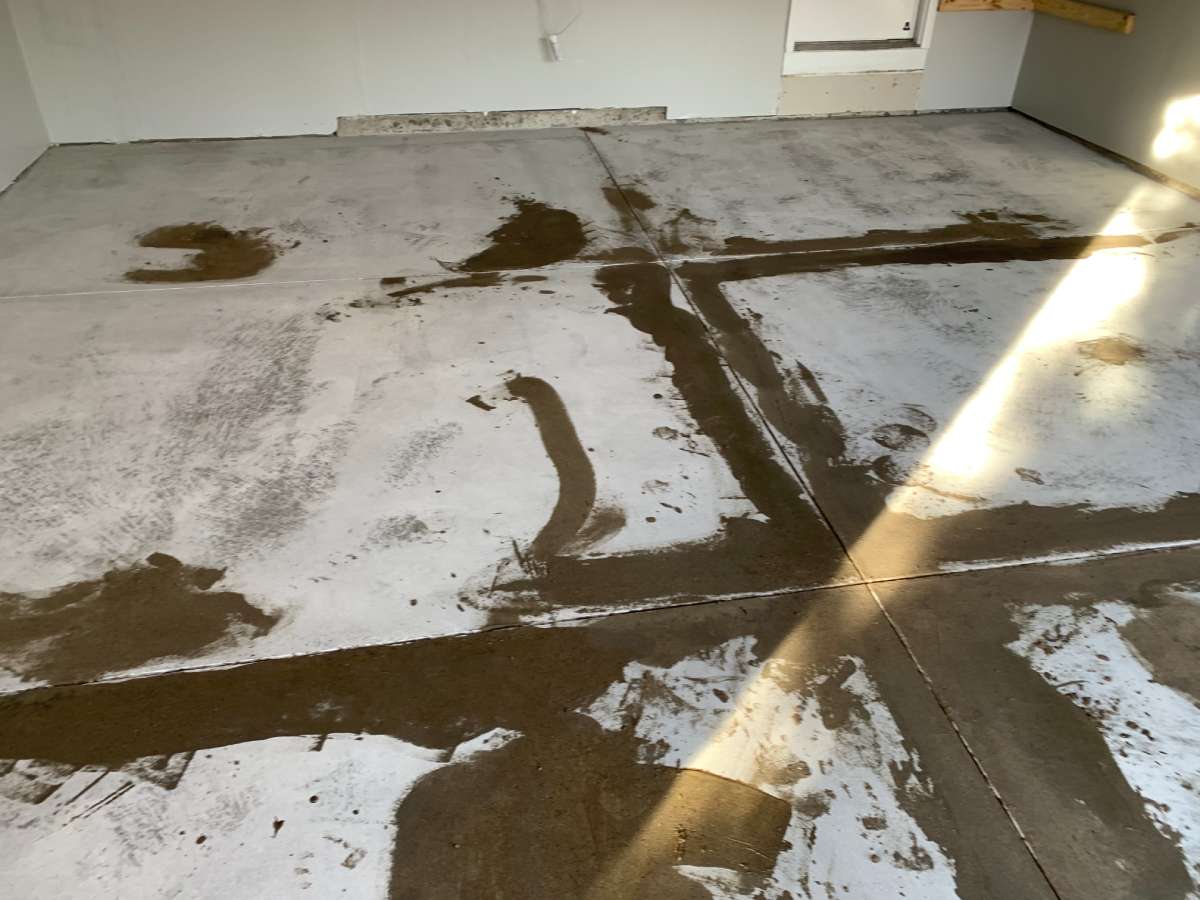

The expansion joint zone needed the most attention. Our crew pressed mender compound directly into the crack along the control joint, working it through the full depth of the seam before troweling it flush. We hit the pitted areas in that zone the same way, pressing compound into each void and troweling it level with the surrounding slab. We treated the lighter pitting elsewhere on the floor with the same method, then waited for everything to reach full cure before moving to the coating phase.

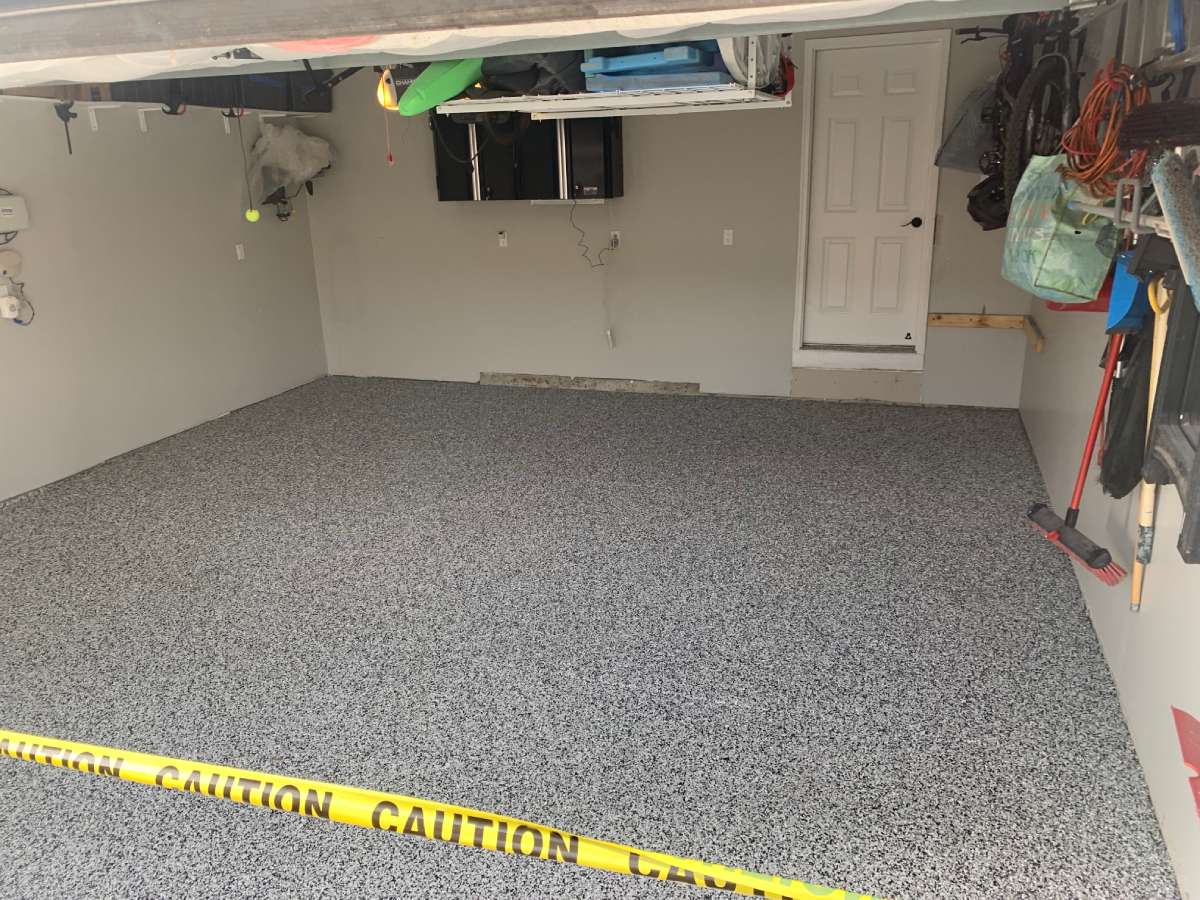

Domino on 368 Square Feet

The homeowner chose Domino, the same bold black-and-white blend used at James K Boulevard, applied here under the MC-4 system. Our crew spread the base coat across the full slab, broadcast Domino flake into the wet surface, and finished with a clear topcoat carrying Shark Grip traction additive, running the coating wall to wall with no transitions.

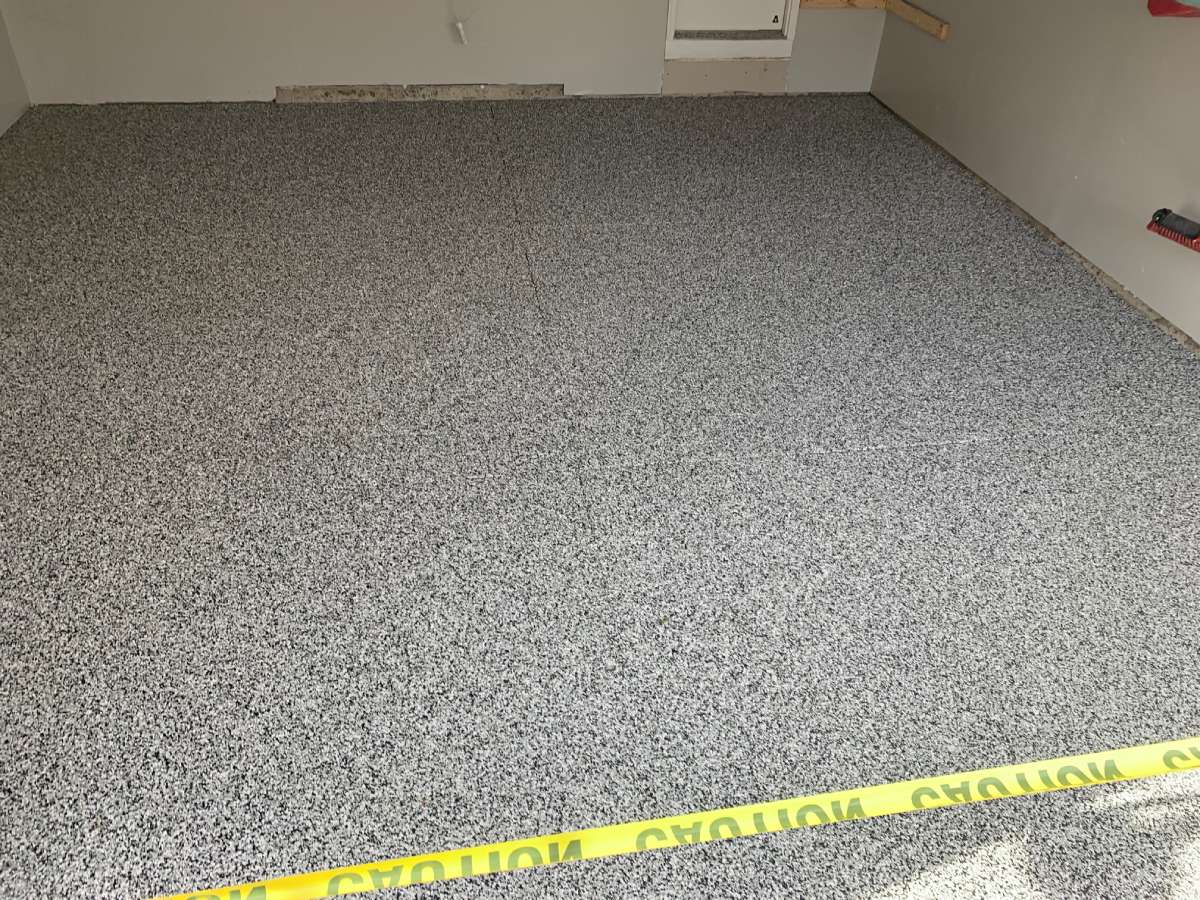

After Result

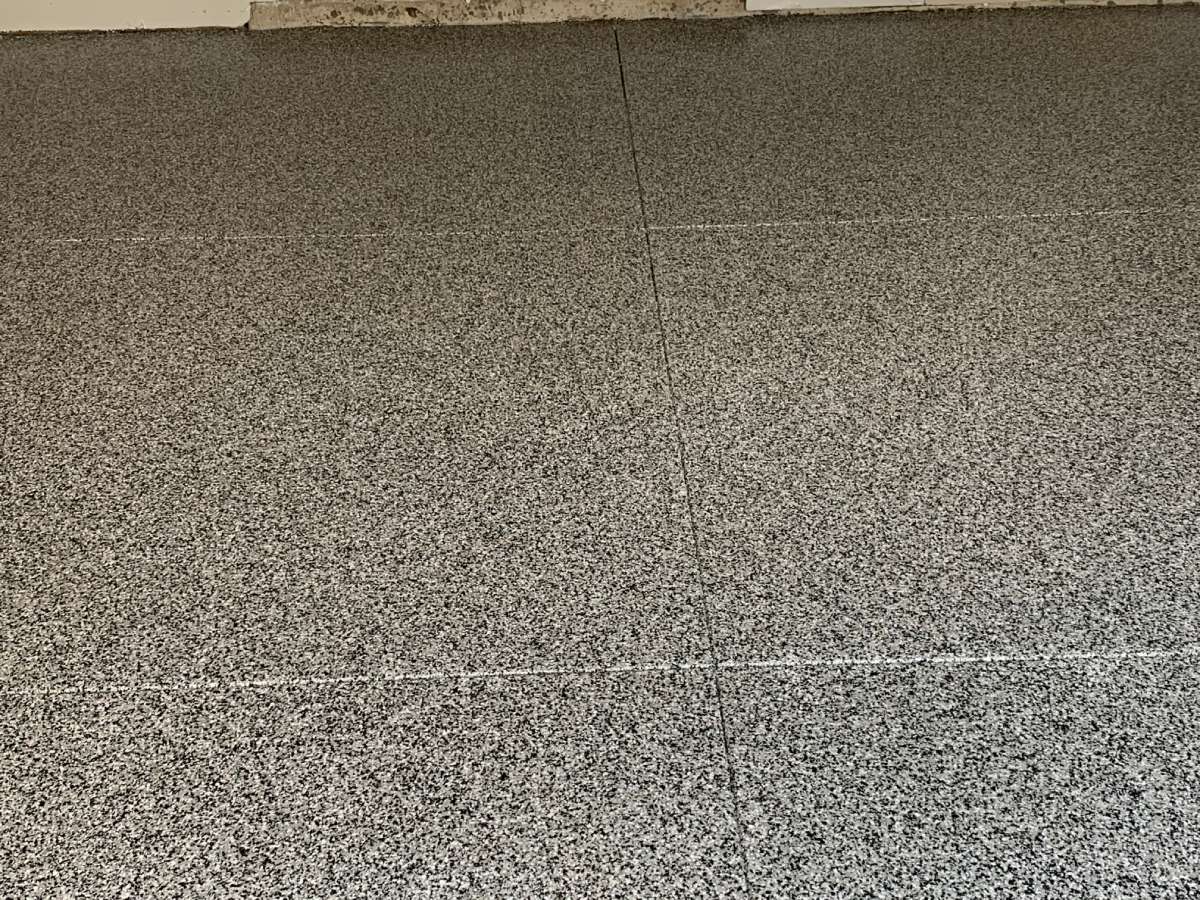

Our crew left a floor with no trace of the staining, cracking, or pitting they found on arrival. We covered all 368 square feet with Domino in a sharp, high-contrast finish. Anyone stepping into that garage gets solid grip underfoot from the Shark Grip additive across every square foot. Our crew sealed and protected the full slab against years of continued use.

NEW Garage Floor Coating
on Concourse Drive

Concourse Drive, Pontiac, MI

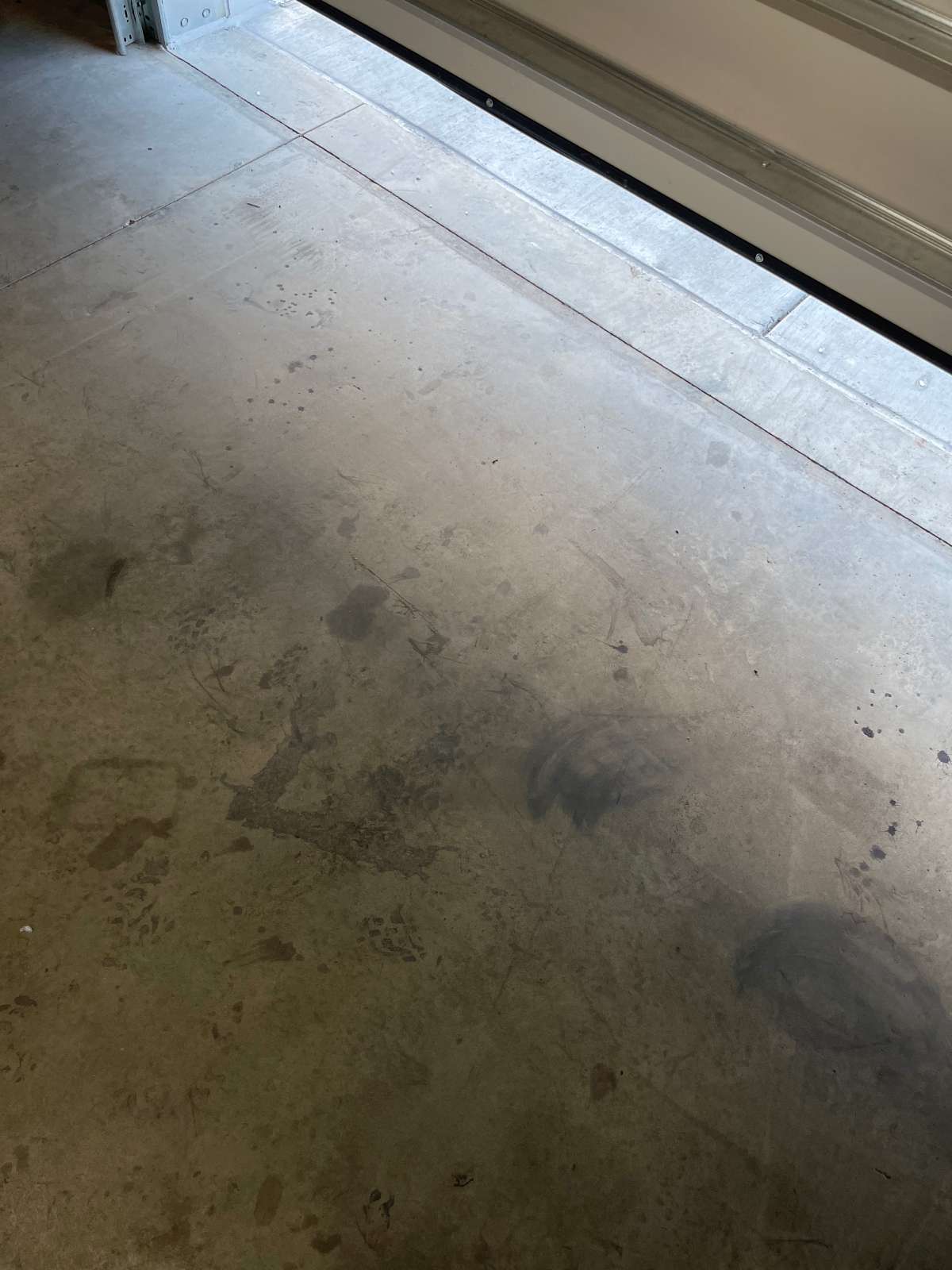

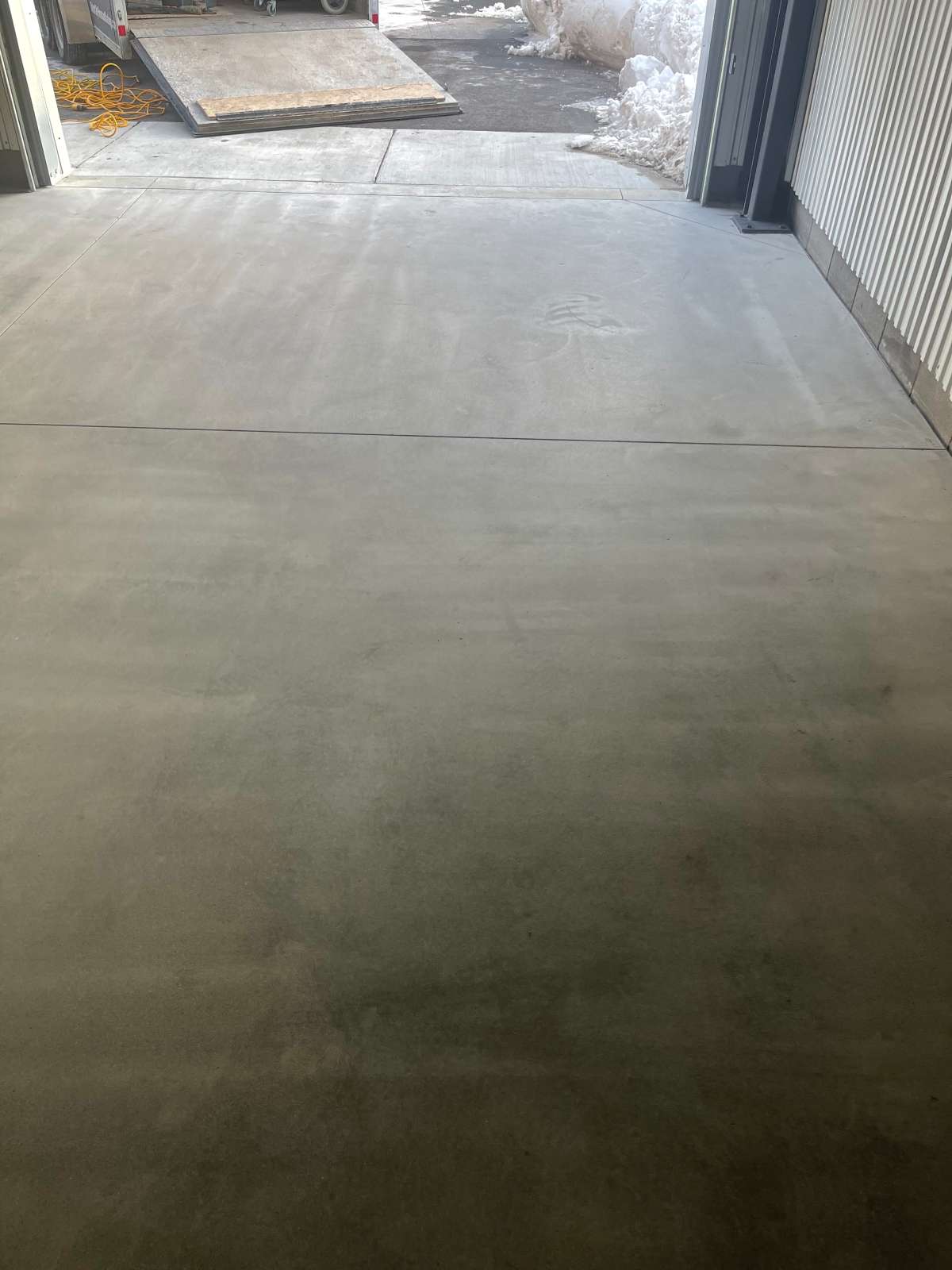

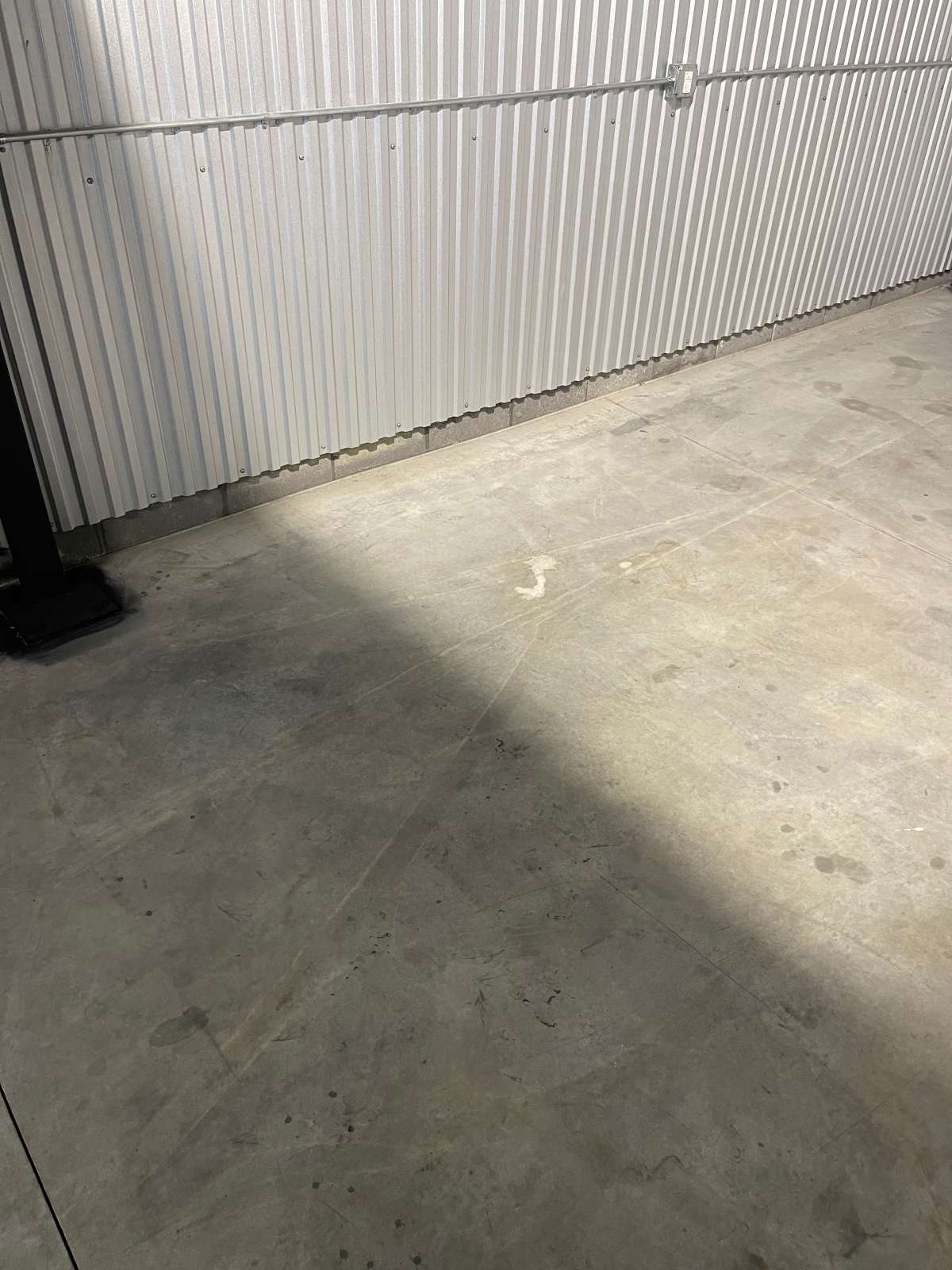

A New Build With Its Own Challenges

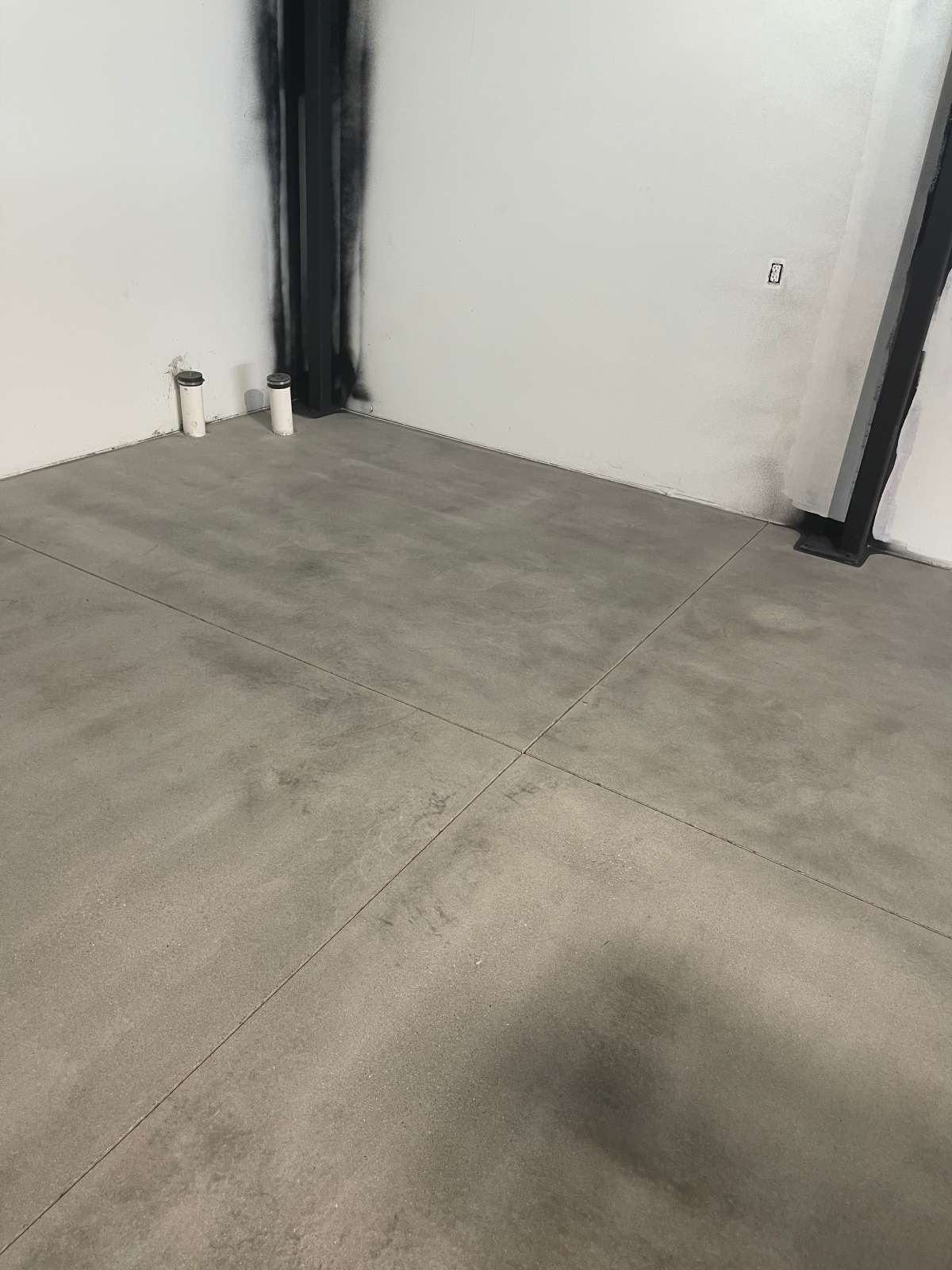

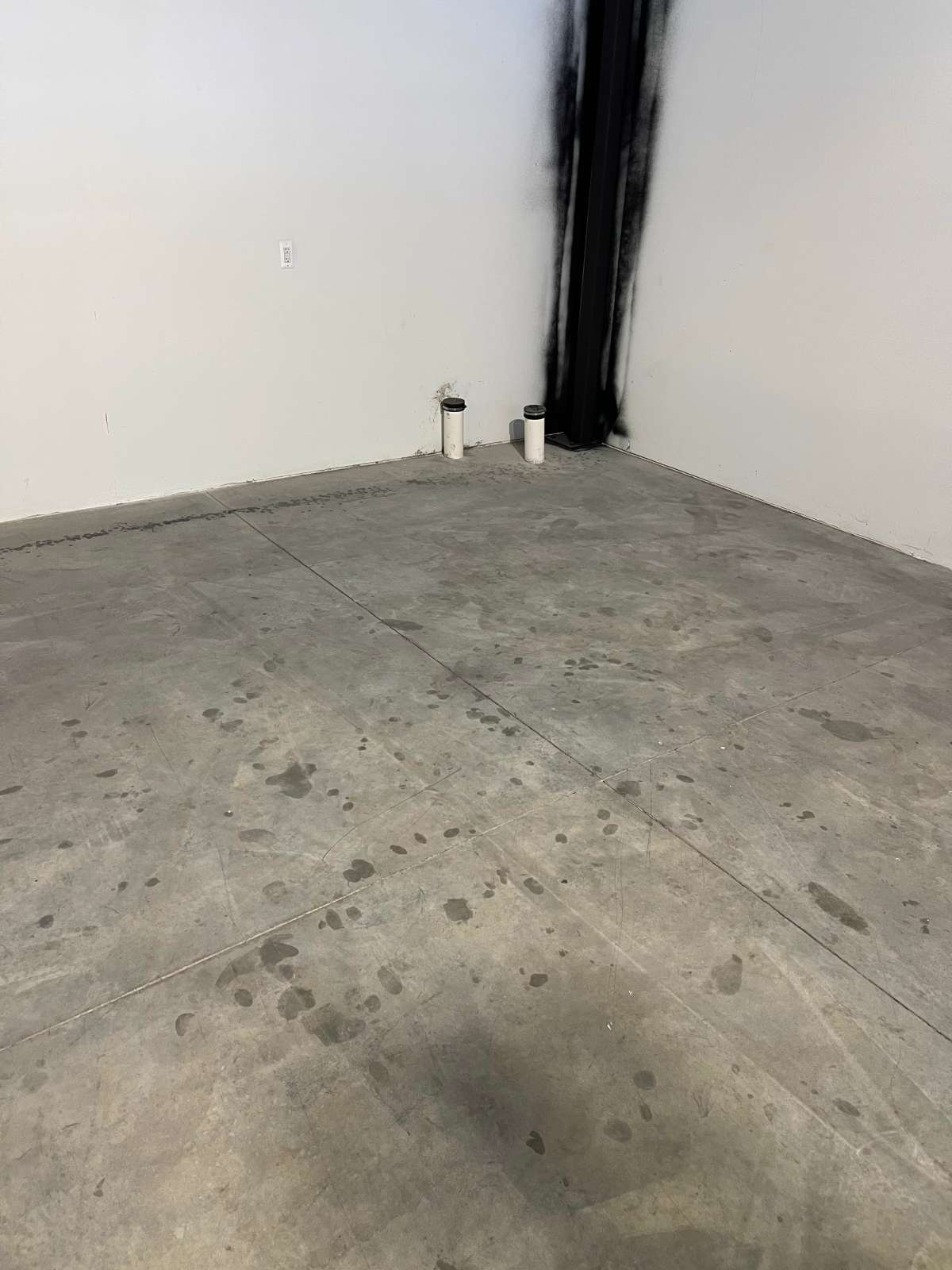

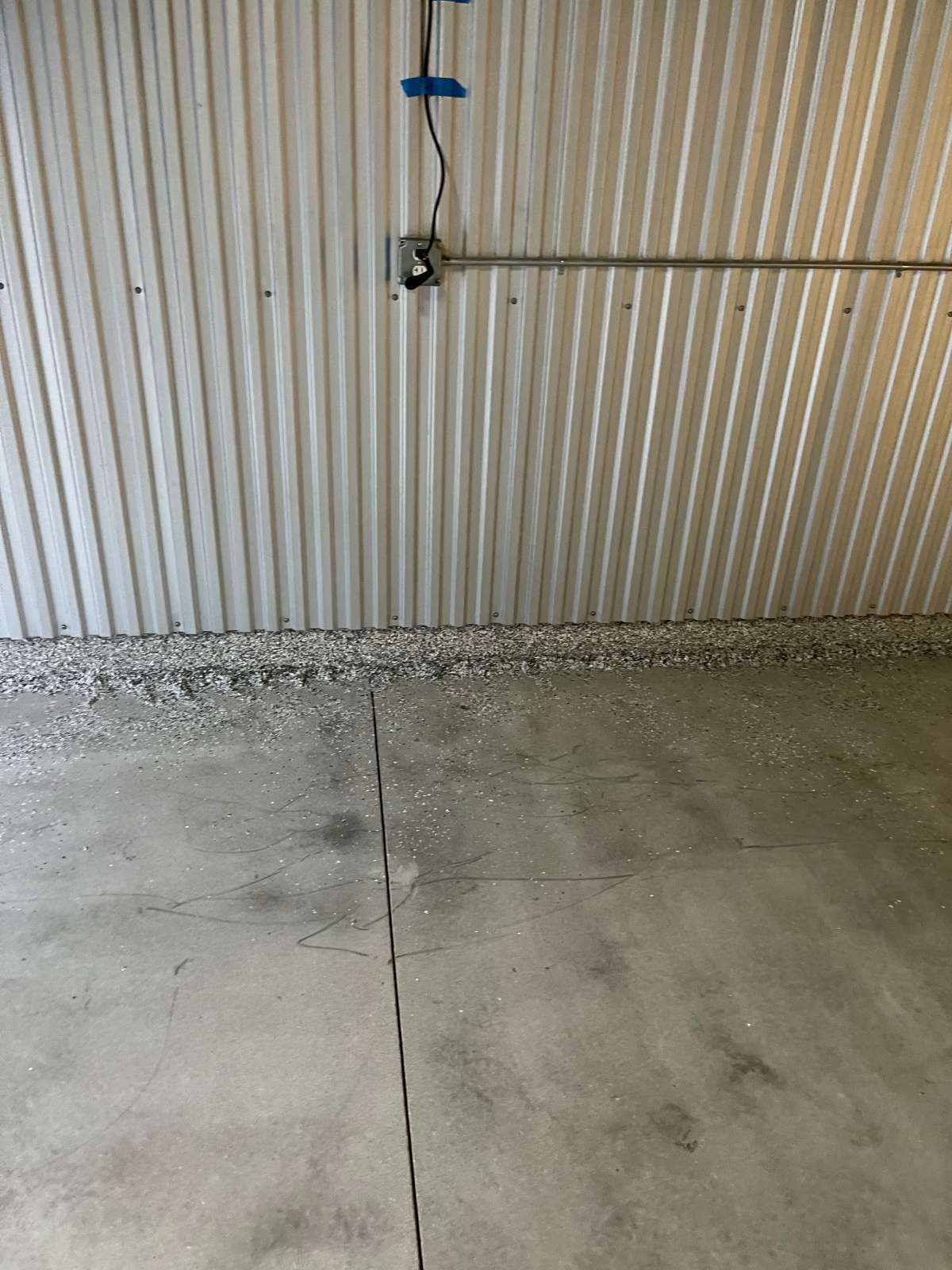

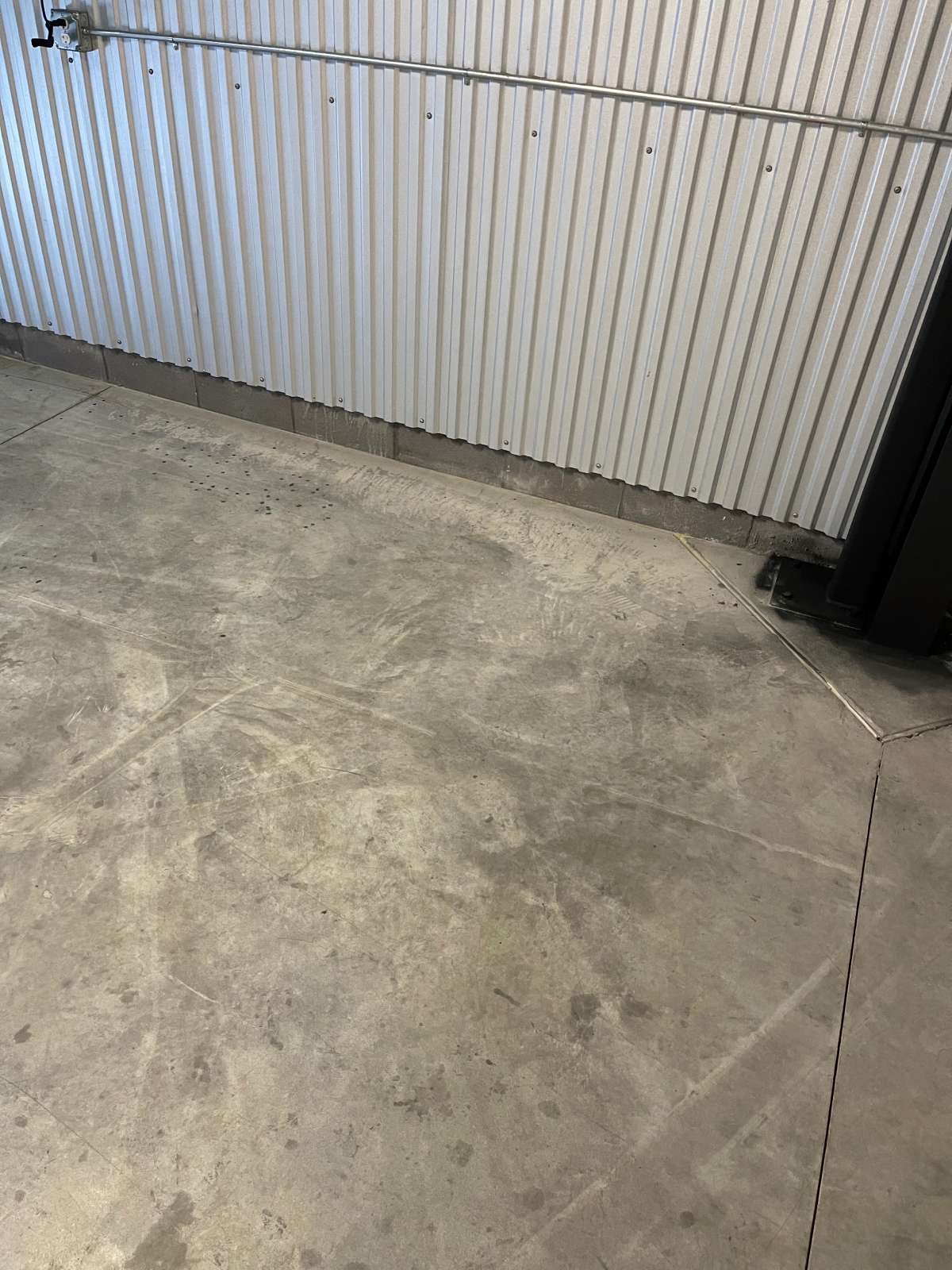

Our crew arrived at this 745-square-foot garage to find a hard-troweled concrete slab that had never held a vehicle and showed only light construction scuff marks and surface contamination. Anyone looking at it would see a clean surface, but our crew knew the hard-troweled finish would prevent the coating from bonding without aggressive grinding first. During the curing and settling process, a crack had opened in one corner of the slab before we arrived. The scope also included 38 linear feet of vertical surface: one full wall base and two small areas flanking the doors.

Breaking Through the Hard Finish

Our crew worked harder grinding this slab than they would on typical residential concrete, running diamond grinding equipment across all 745 square feet and making additional passes wherever the dense surface finish resisted opening. We worked the perimeter carefully, grinding along the base of the vertical wall and around the two door areas to give the full scope a consistent mechanical profile. We vacuumed the floor thoroughly before moving to repair.

Corner Crack Repair

The curing and settling process had opened a crack in the corner before our crew arrived. We filled it with mender compound, worked the material flush with the surrounding concrete, and gave it full cure time before any coating went down.

Preparing and Priming the Verticals

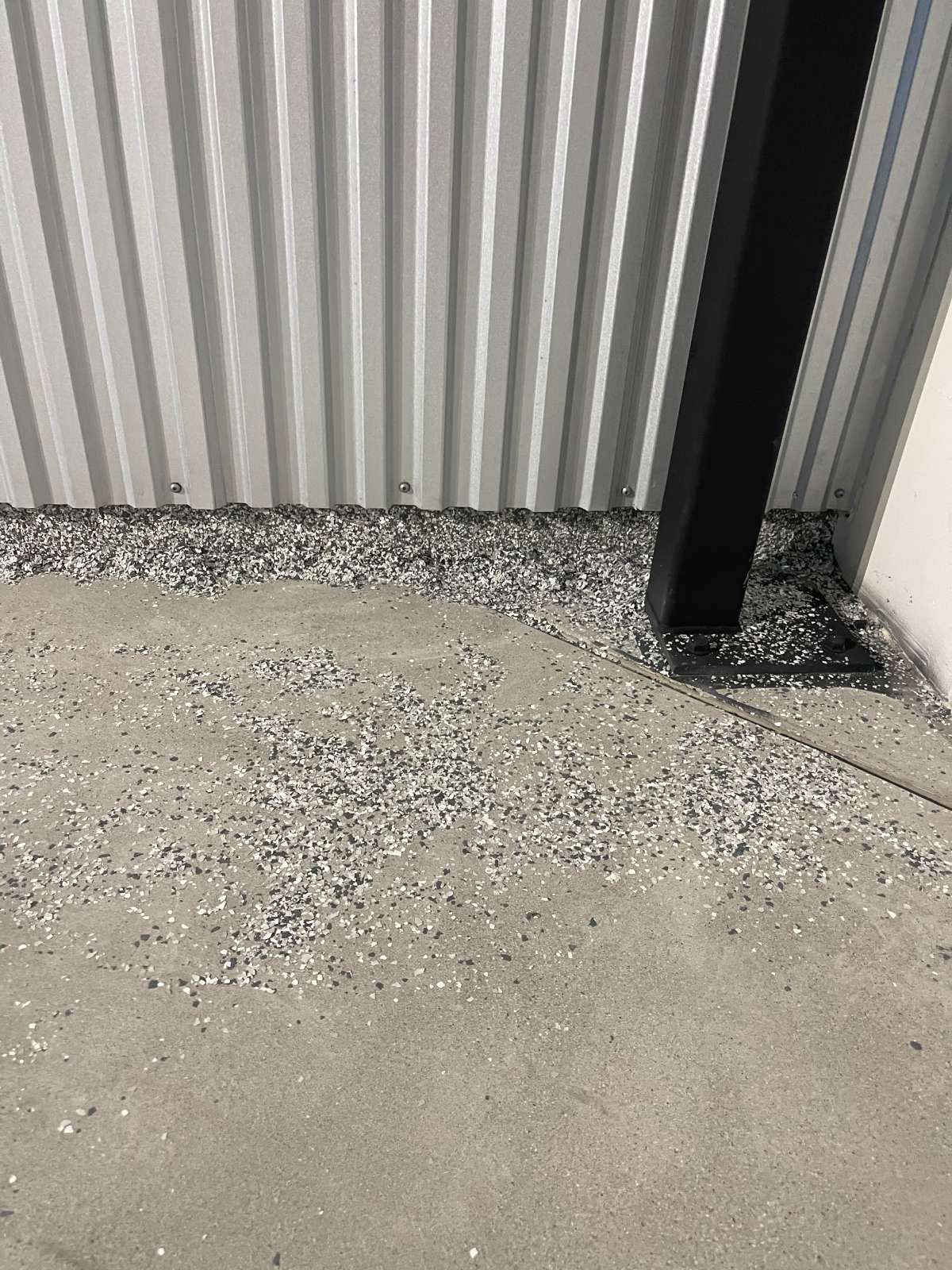

Our crew hand-ground each of the 38 linear feet of vertical surface to create mechanical adhesion along the wall base and door areas. We then applied a dedicated vertical primer to each surface before coating, ensuring the polyurea-polyaspartic system would grip the verticals as securely as it gripped the floor.

Slate Stone, Double Topcoat, Full Coverage

The homeowner selected Slate Stone, a cool multi-tone grey with charcoal and light silver chips. Our crew applied the MC-3.5 polyurea-polyaspartic system across the prepared 745 square feet, broadcasting Slate Stone flakes into the wet base coat on both the floor and the vertical surfaces. We then applied a second clear topcoat over the full surface, adding film thickness and protection that a single topcoat finish does not deliver. We worked 16-grit traction additive into the topcoat throughout.

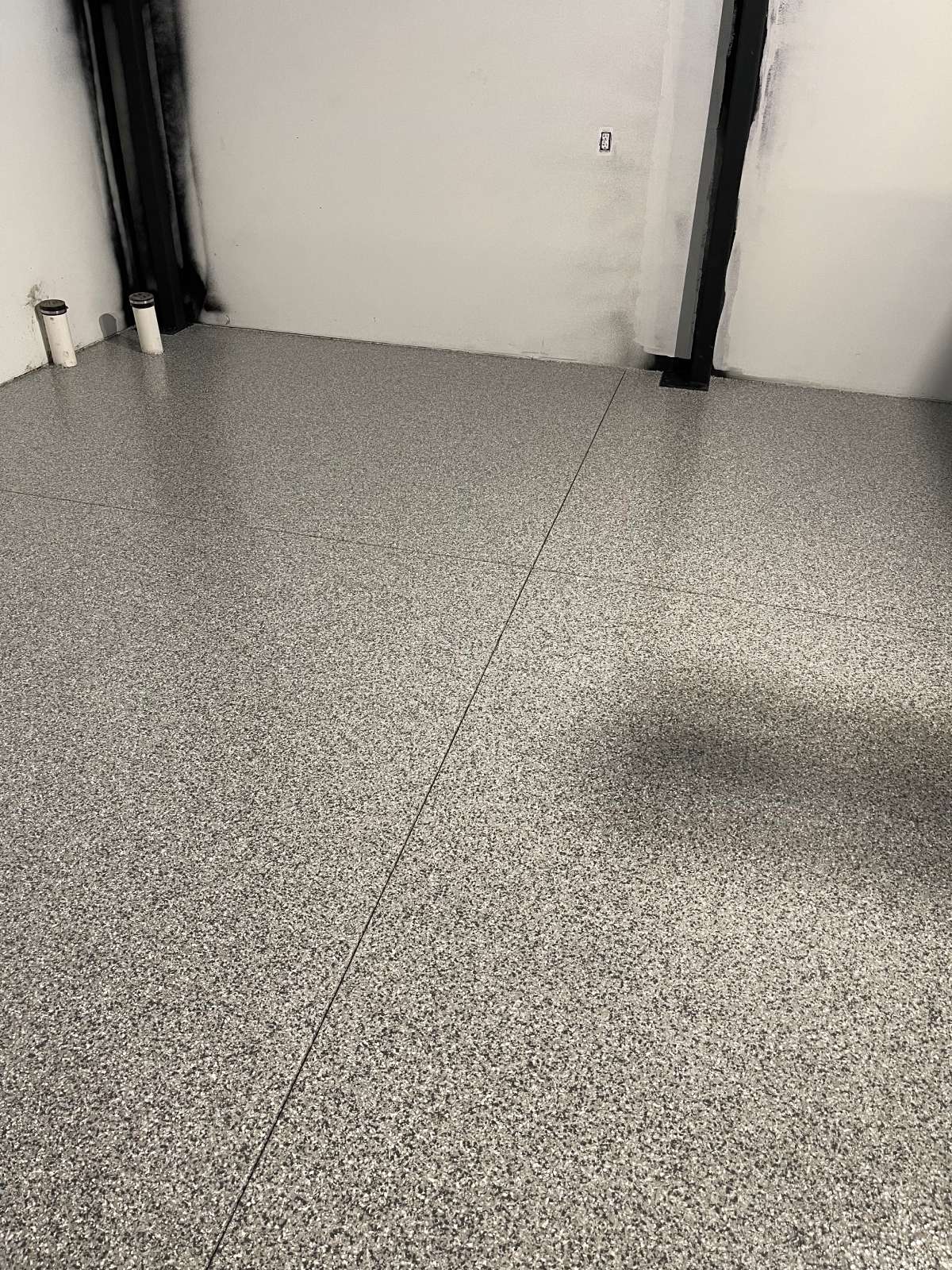

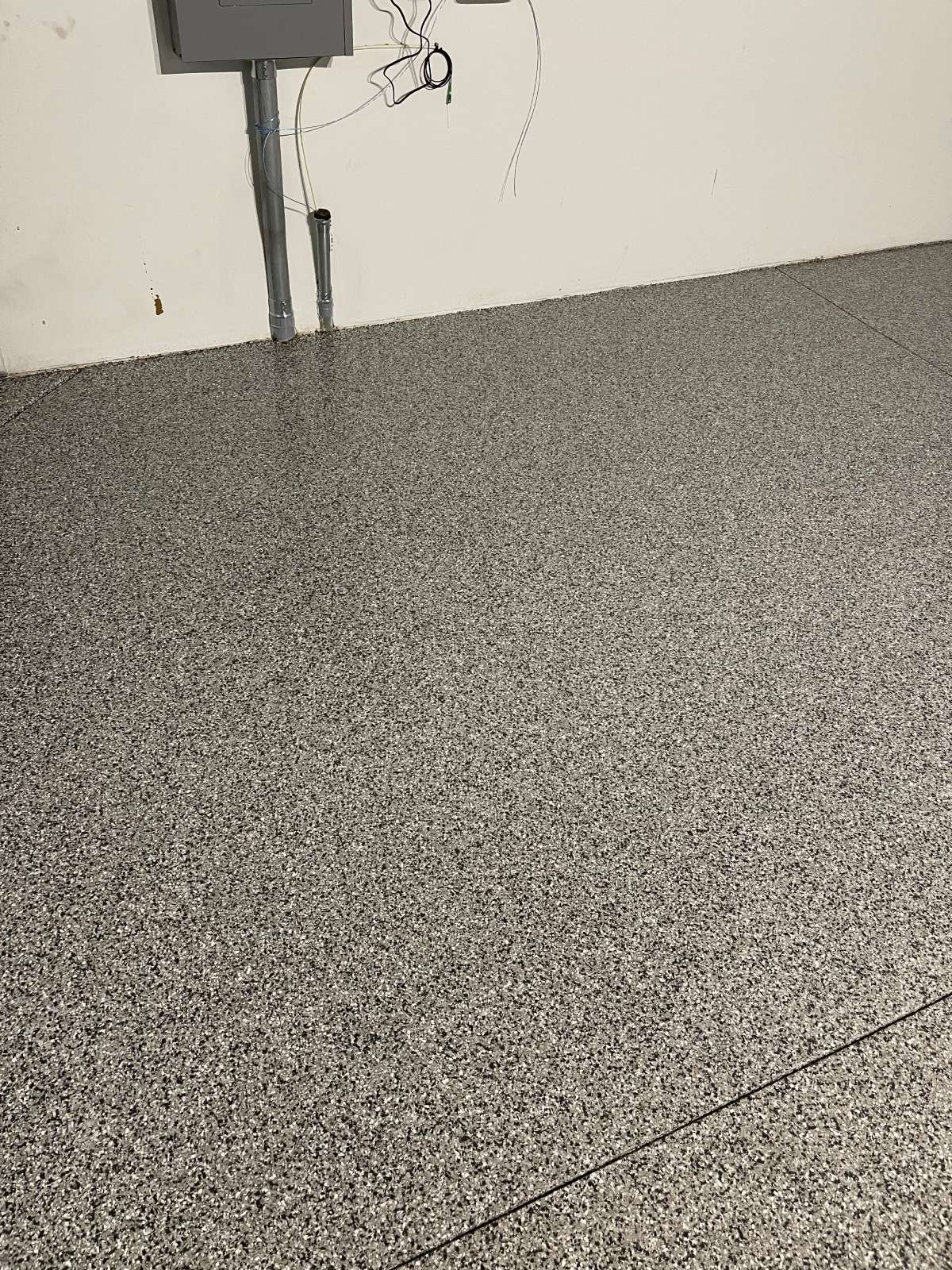

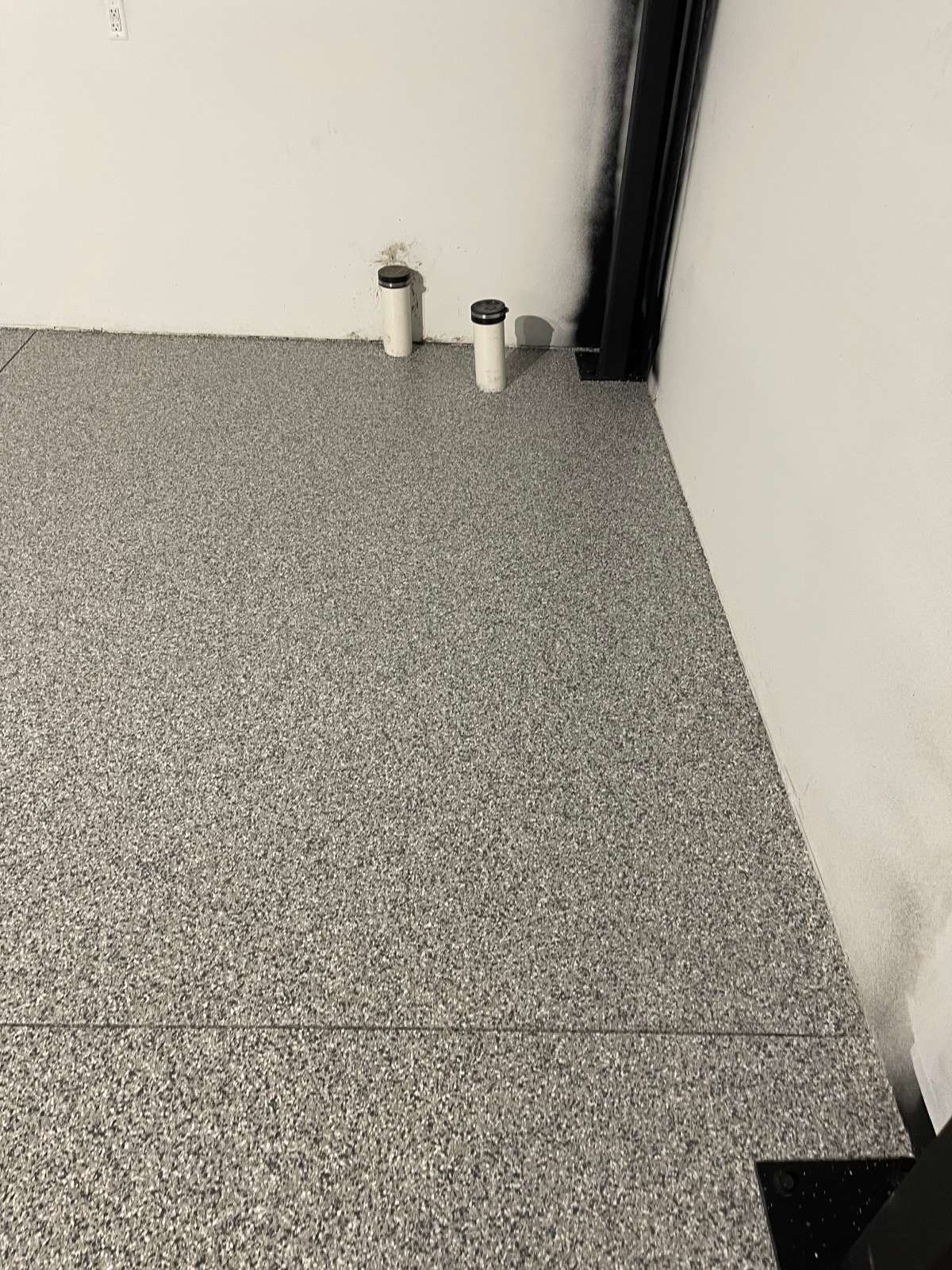

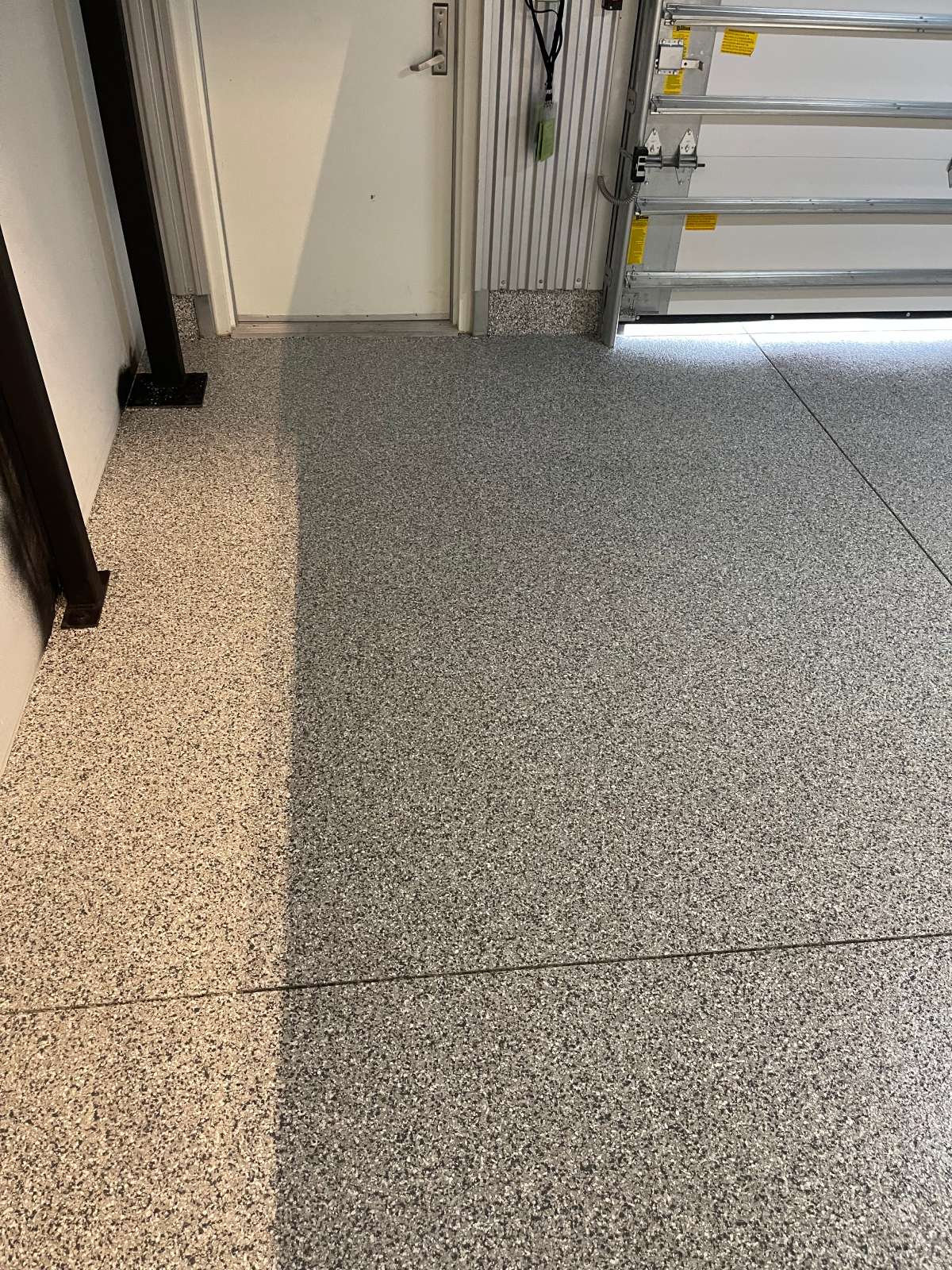

What the Finished Floor Delivers

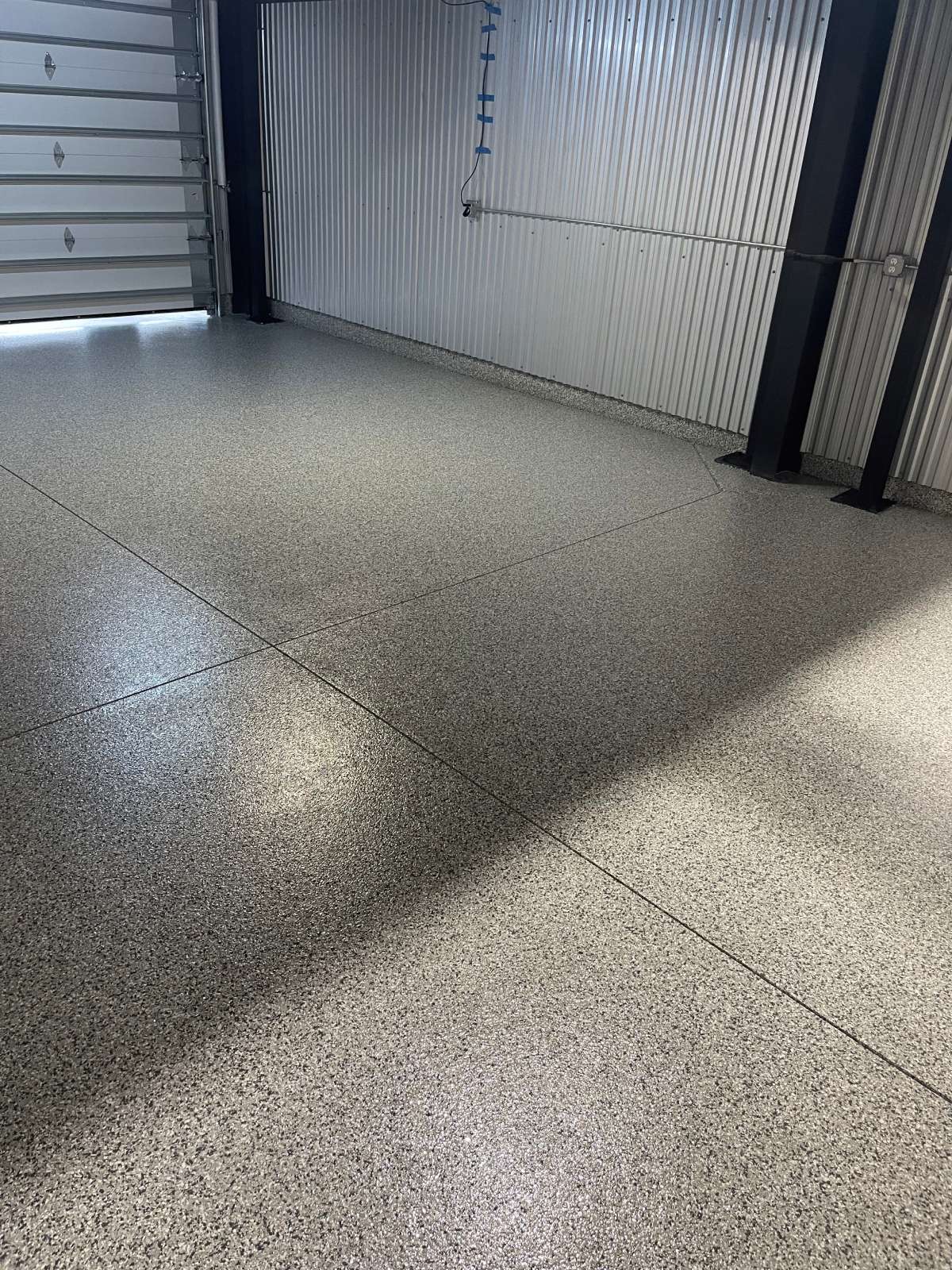

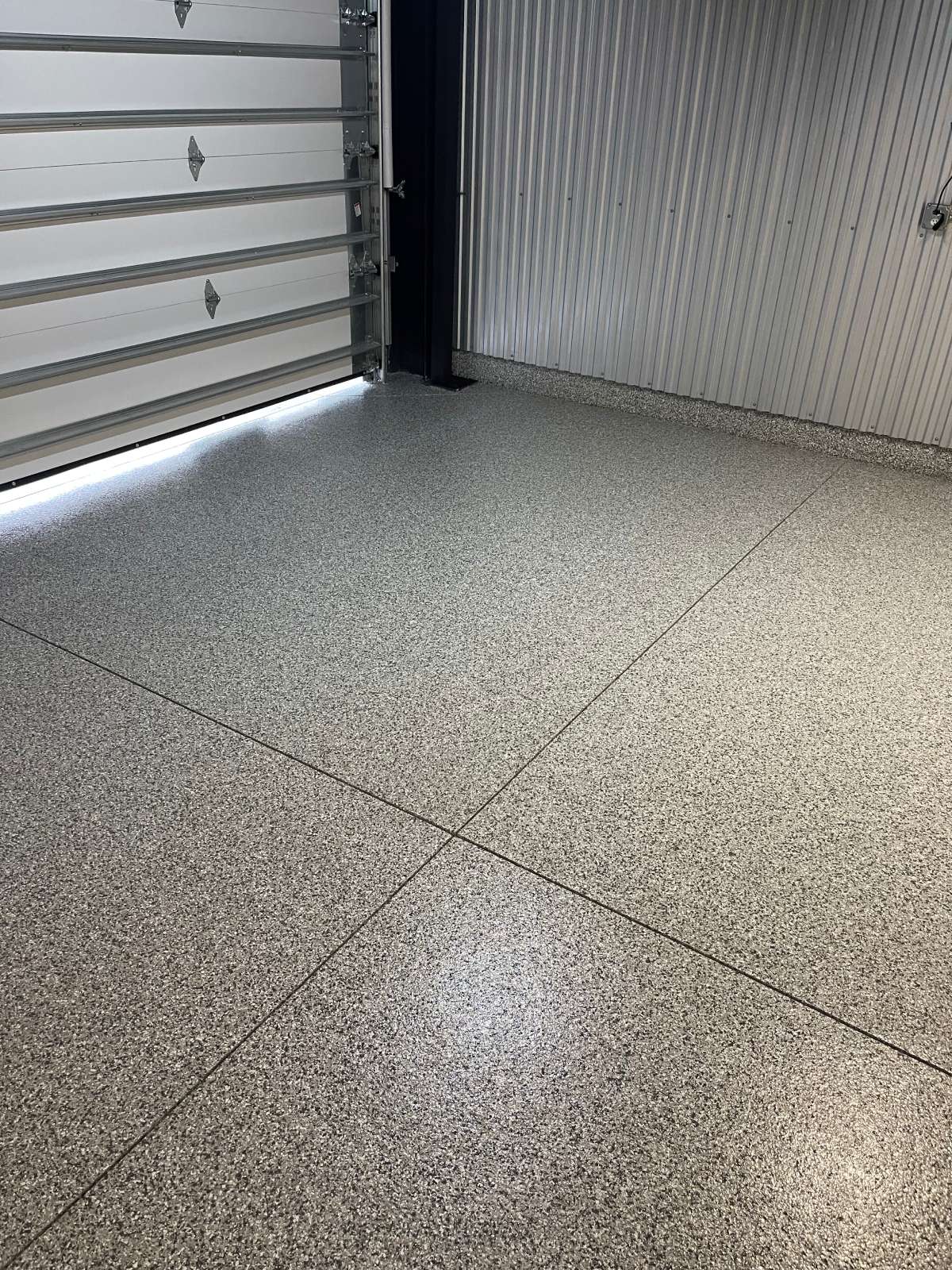

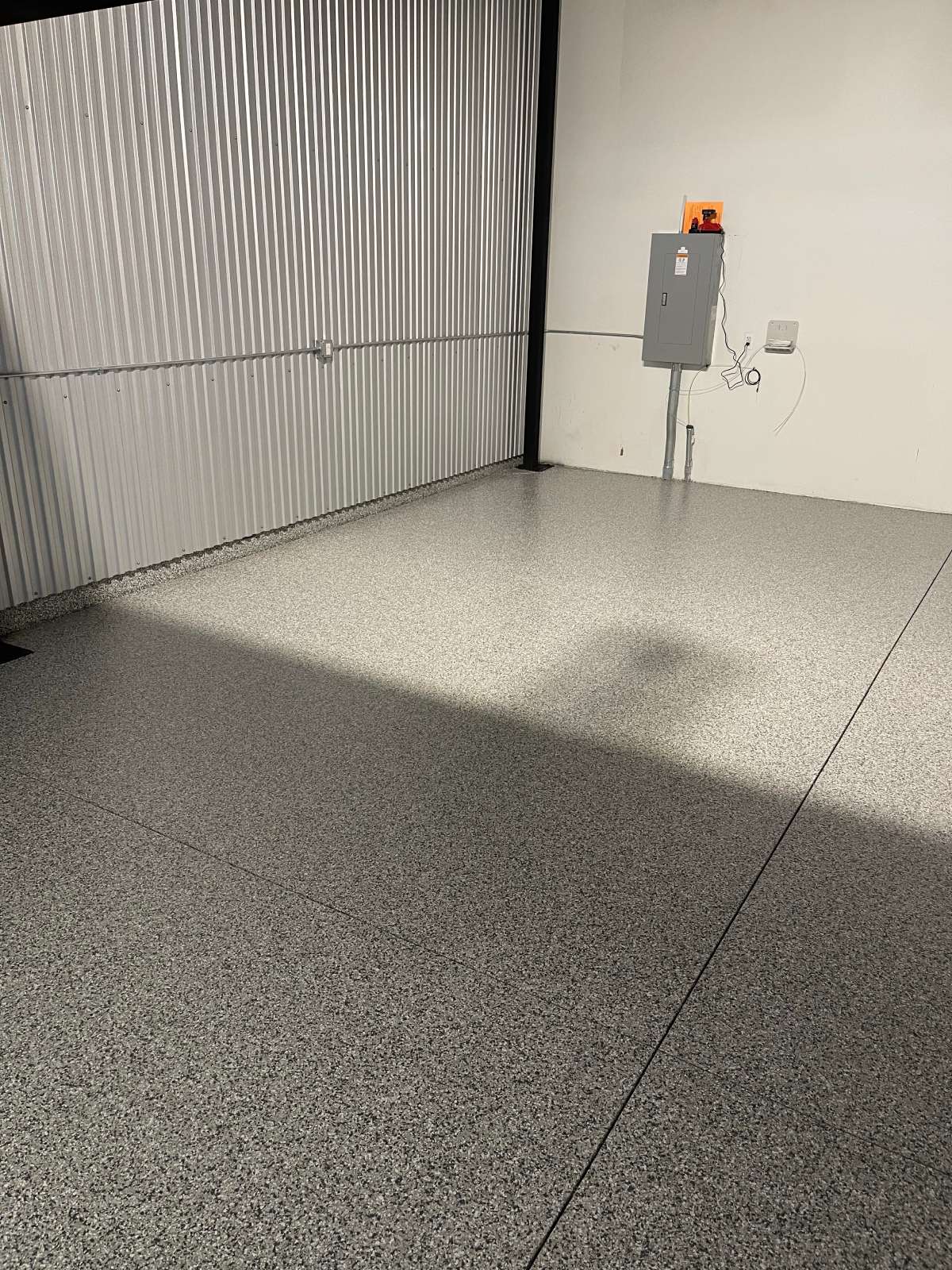

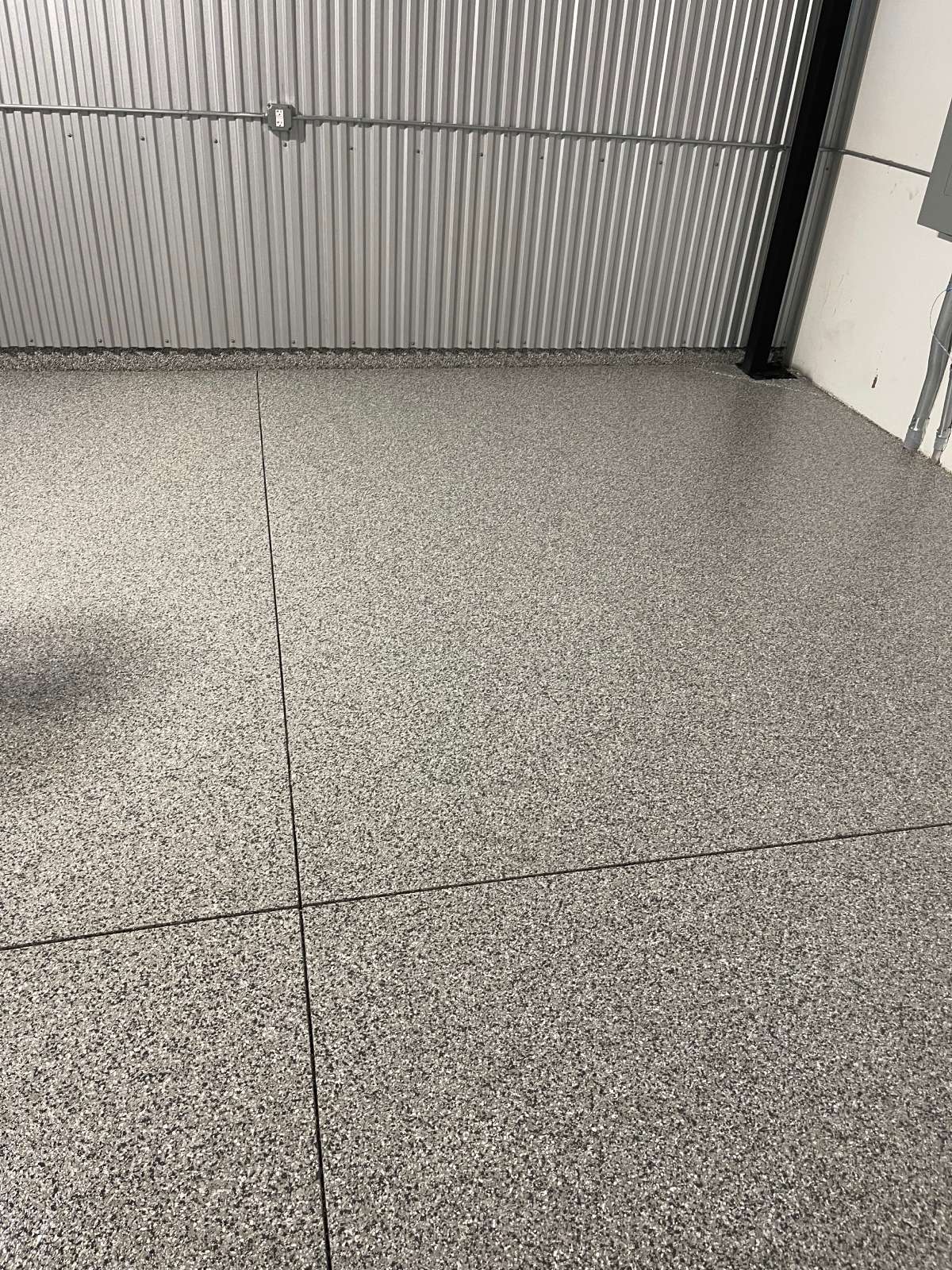

Anyone walking into that garage sees Slate Stone reading consistently across all 745 square feet under any light. The homeowner gets a cool grey finish that pairs well with the metal-wall interior of the space. Our crew carried the same finish down the verticals to the floor in a continuous edge on both wall surfaces. By applying the double topcoat, we gave this floor more built-in durability from day one than a standard single-coat installation delivers.

NEW Garage Floor Coating
on Pontiac Lake Road

Pontiac Lake Road, White Lake Charter Township, MI

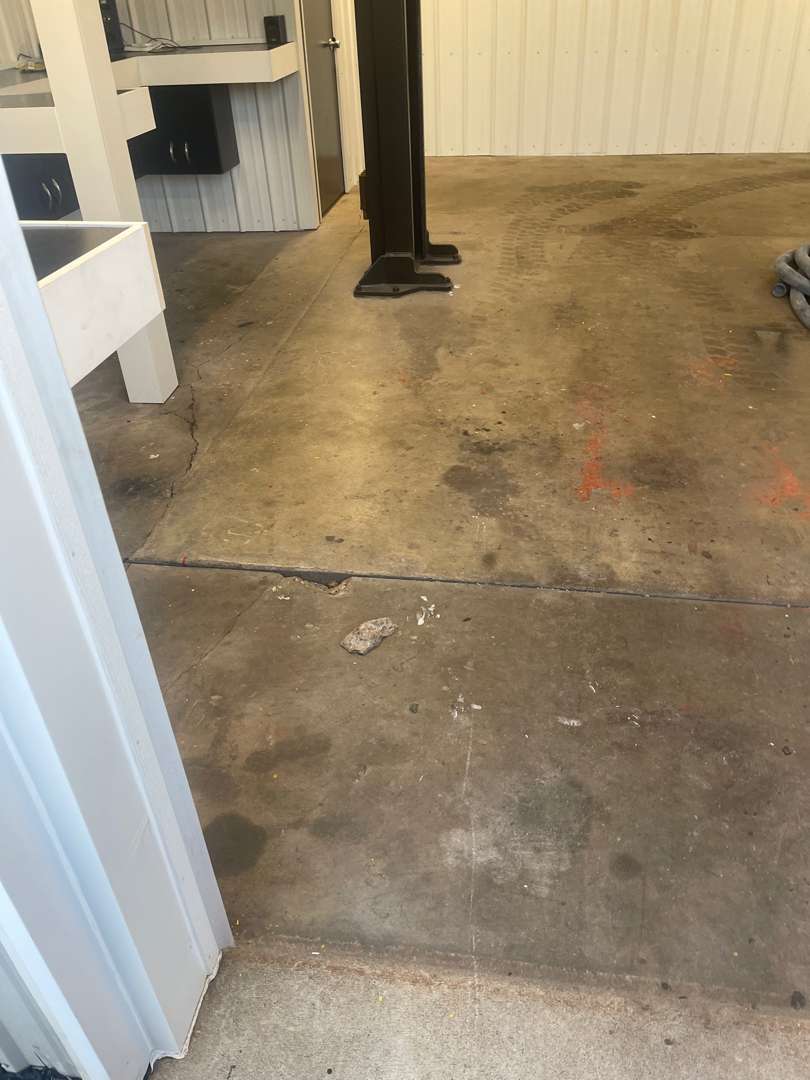

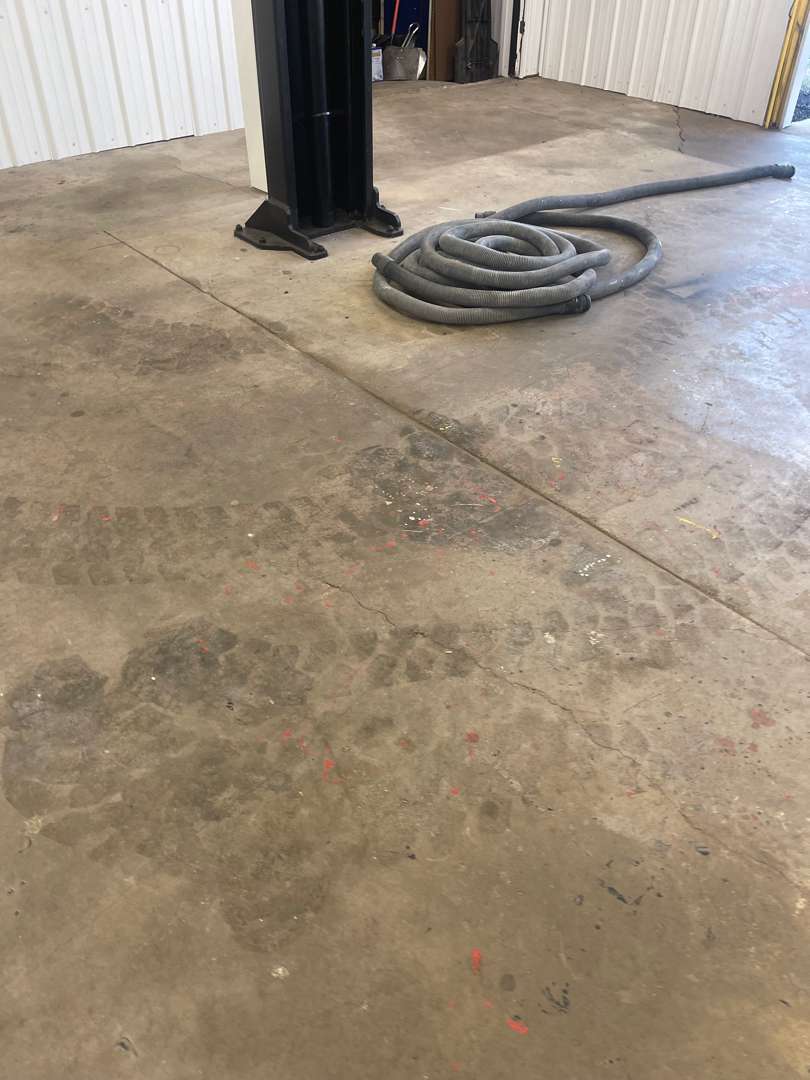

A Shop Floor, Not a Parking Bay

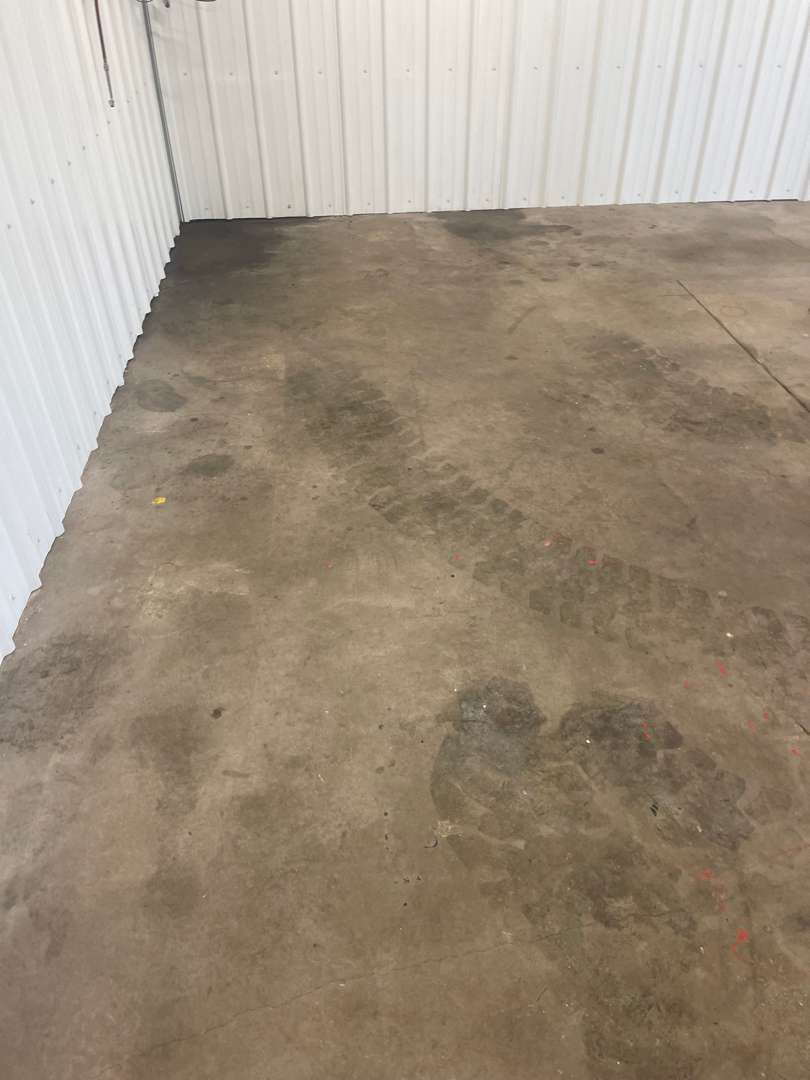

Our crew arrived at this 477-square-foot workshop garage to find a slab that had absorbed years of active vehicle service. We found fluid deposits and oil staining spread across multiple zones, tire track impressions marking the main floor area from repeated vehicle positioning, and paint and chemical spatter across additional sections of the slab. Our crew also found light cracks running between the control joints throughout. The owner had a four-post vehicle lift installed and bolted at the center of the floor and wanted it to stay in place. The project excluded the bathroom and ran to the joint line at the two interior doors. A raised square patch near the front of the slab also needed attention before coating could begin.

Grinding With the Lift in Place

Our crew ran diamond grinding equipment across all 477 square feet with the lift bolted down throughout. With each pass, we cleared the oil contamination, laitance, and paint spatter from the full slab, cutting carefully around the lift base to maintain complete coverage without leaving unground edges. We ground the raised square patch near the front down to match the surrounding floor profile. We vacuumed the full slab before moving to crack repair.

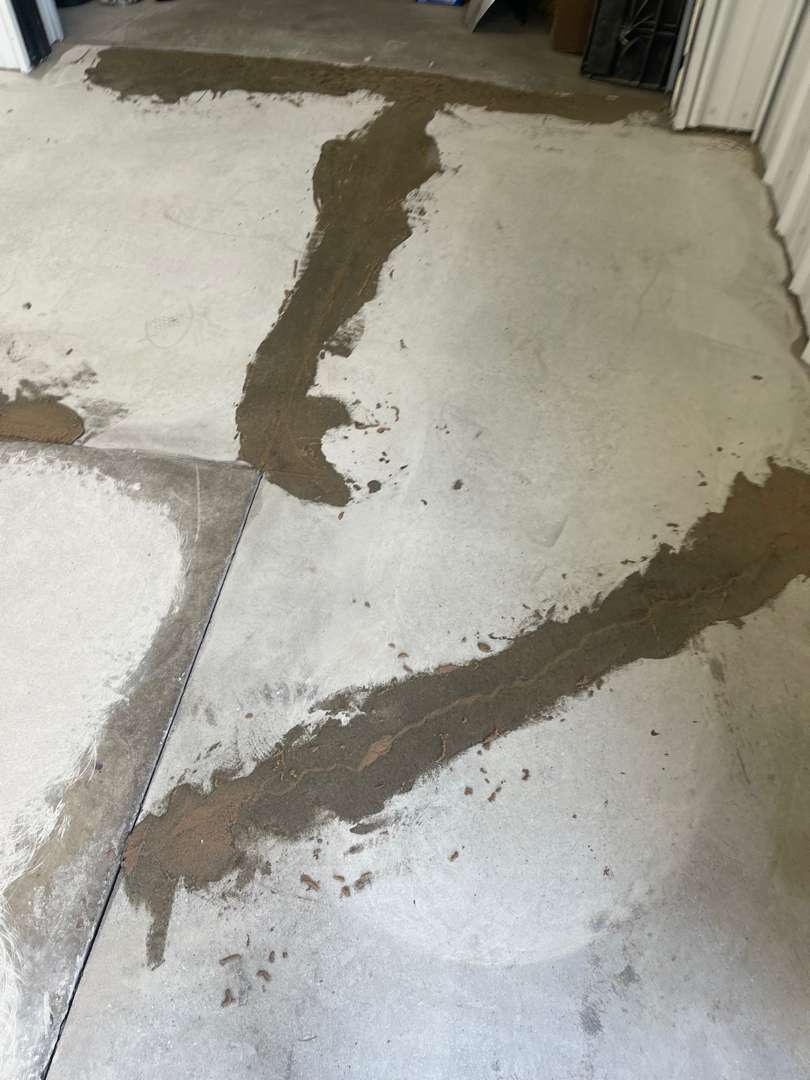

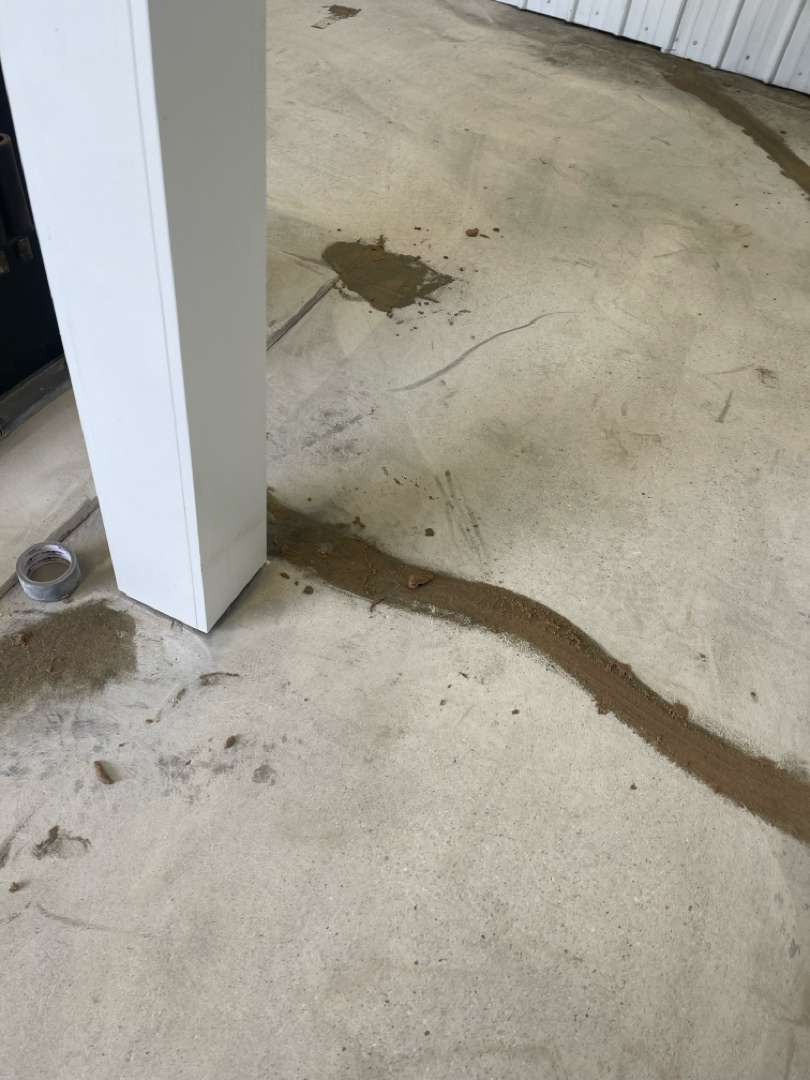

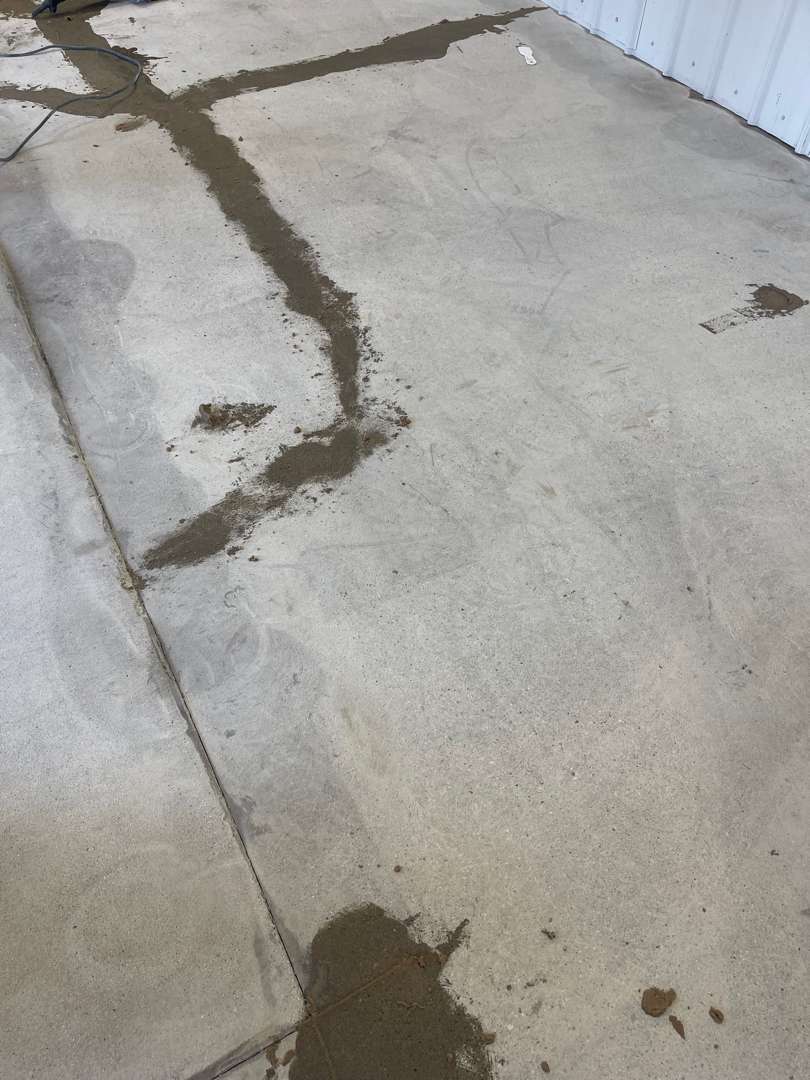

Filling the Cracks

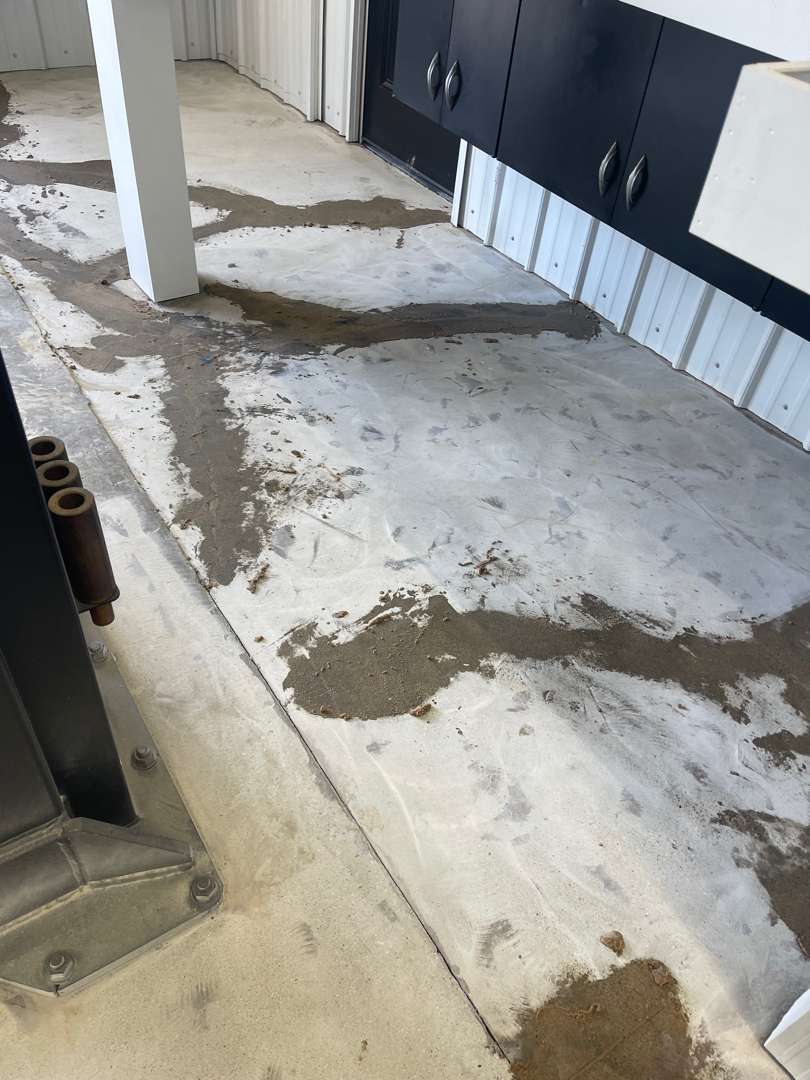

Our crew worked mender compound into each crack across the slab, pressing the material through the full depth of every seam and troweling it flush with the surrounding concrete. We waited for full cure before the base coat went down.

Handling the Boundary Conditions

Our crew had two boundary conditions to manage with precise tape work. We ran the coating to the outside door threshold and to the joint line at both interior doors, keeping the bathroom excluded. On an active workshop floor, our crew treats every boundary line with care because ragged edges at transition points undermine the quality of the finished installation.

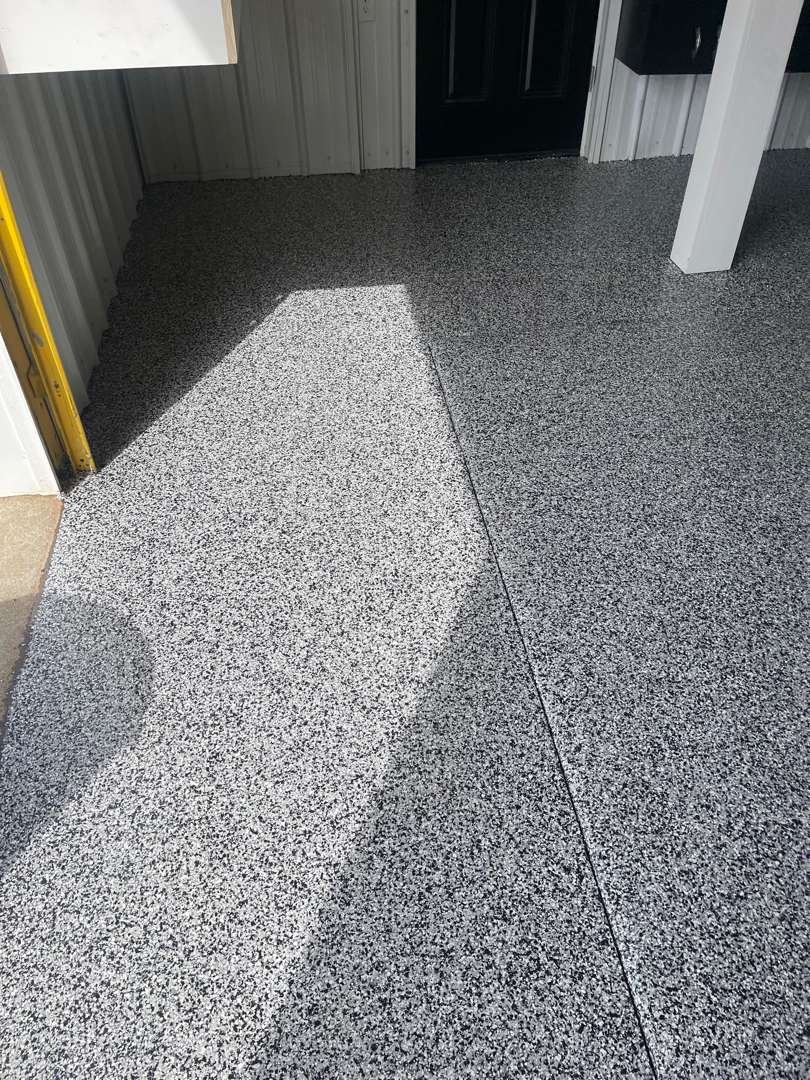

MC-3, Domino, H-3 Density

The homeowner chose Domino, the black-and-white blend that also went down at James K Boulevard and Lasseigne. Our crew applied the MC-3 polyurea-polyaspartic system, spread the base coat across all 477 square feet, and broadcast Domino flake at H-3 density into the wet surface. By broadcasting at H-3 density, we left space between chips and kept the base coat visible across the surface for an open, lighter pattern. We then applied the clear topcoat with 24-grit traction additive throughout, giving this active workshop floor the coarsest grip option in the system.

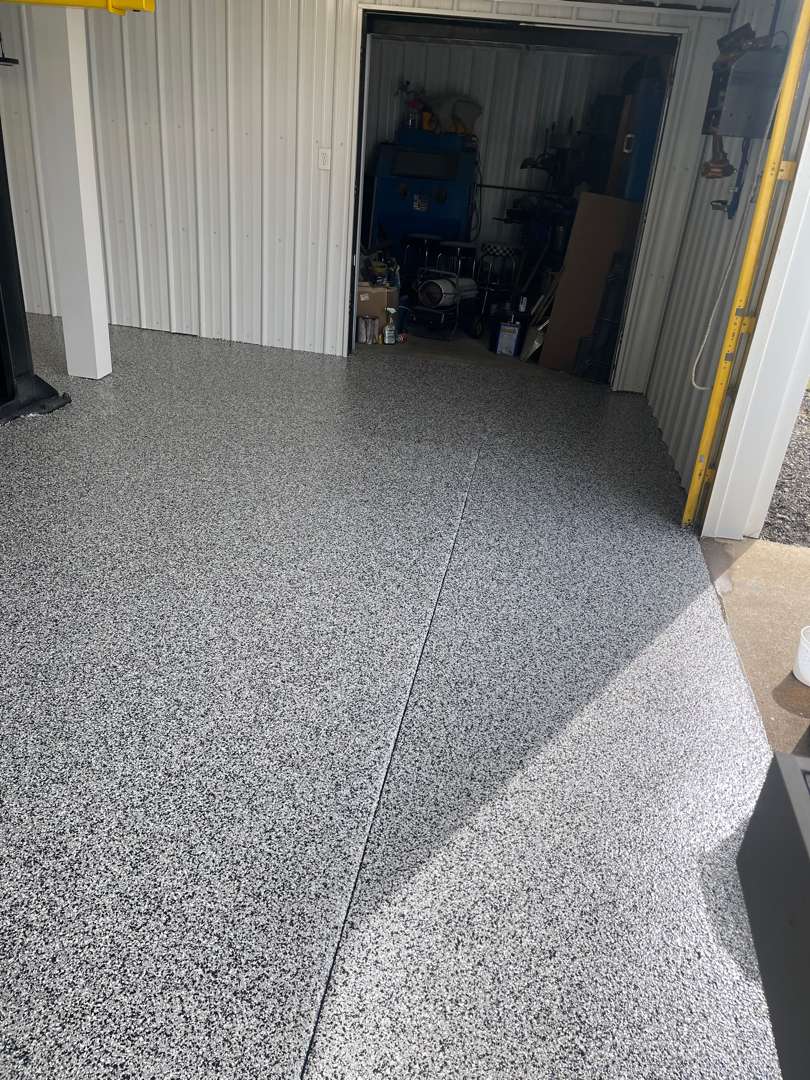

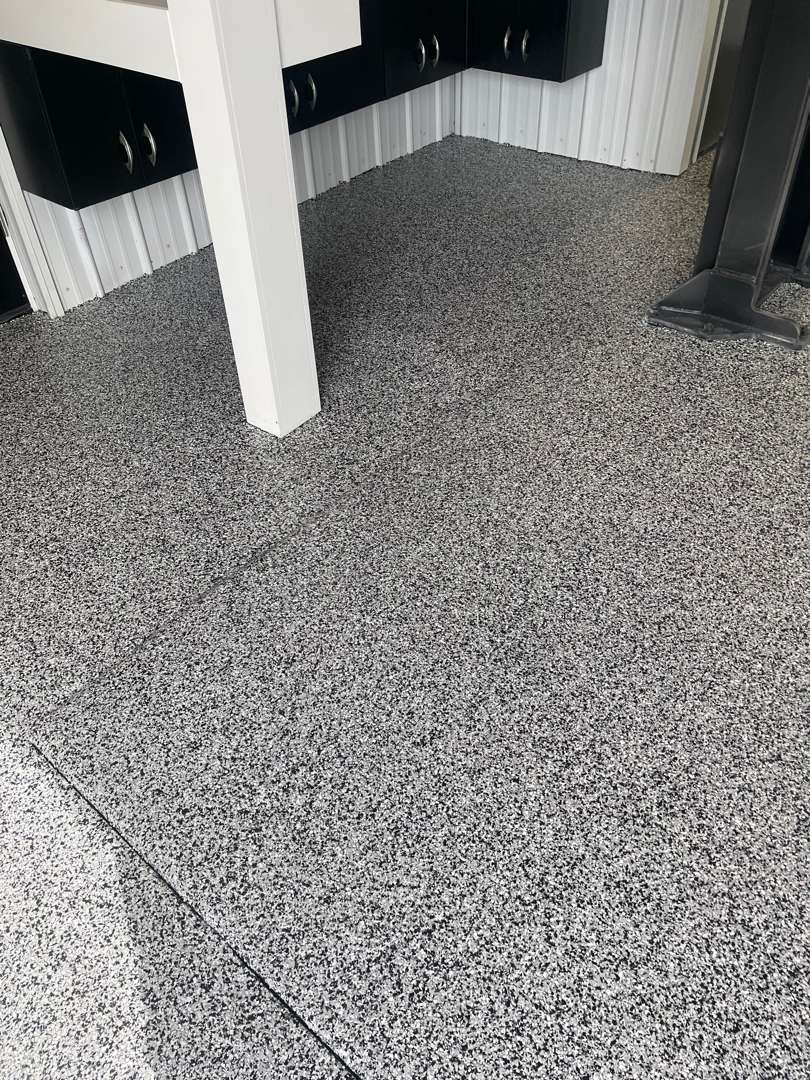

The Workshop Floor Finished

Our crew covered all 477 square feet with Domino within the defined scope. Anyone walking into that workshop sees the open H-3 pattern across the full work area and gets firm grip underfoot from the 24-grit additive at every step. We brought the coating flush around the lift base on all four corners and kept every boundary edge clean. Our crew sealed and protected a floor that this workshop will put to hard use every day.

NEW Garage Floor Coating
on Brady Lane

Brady Lane, Pontiac, MI

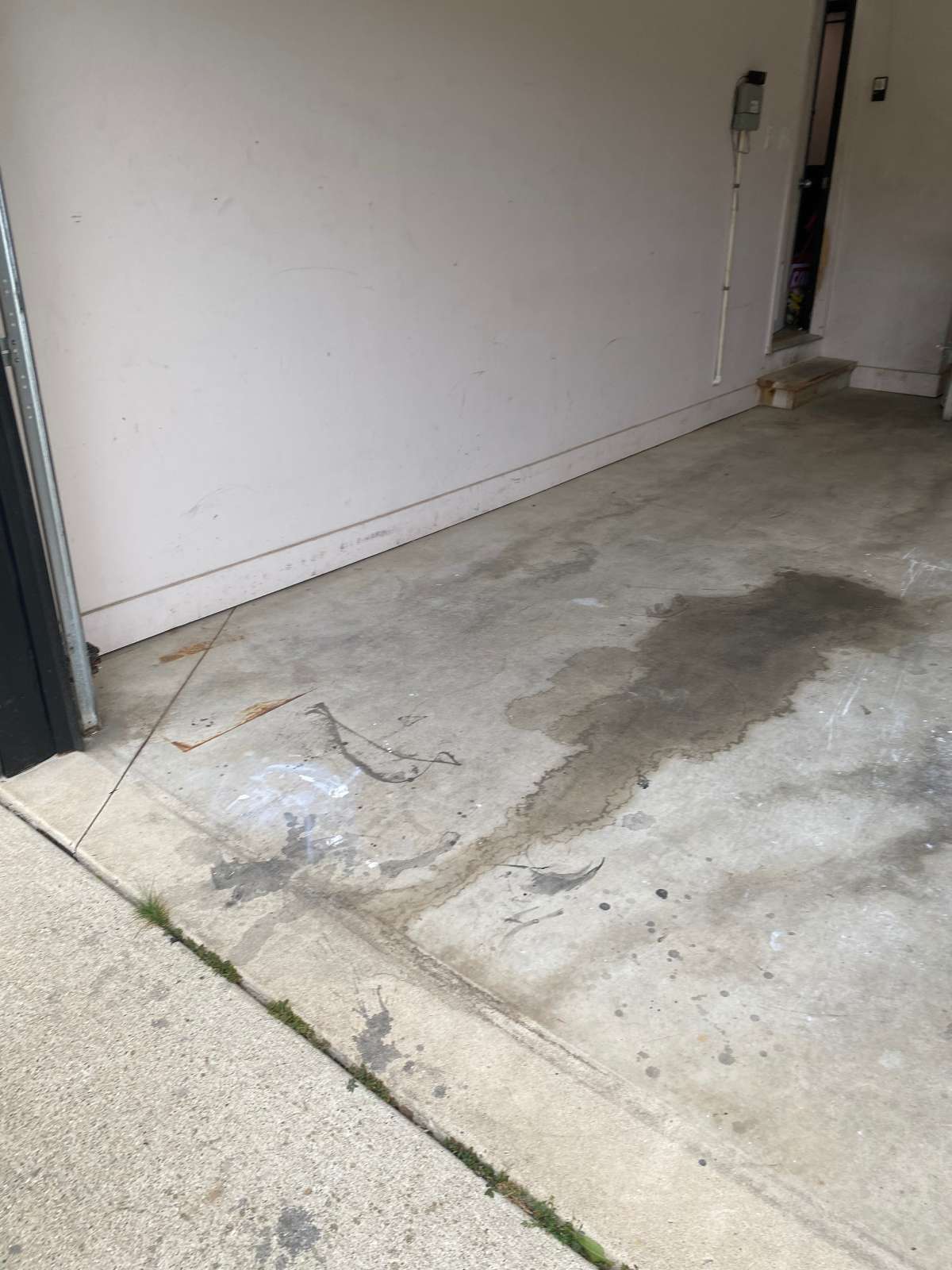

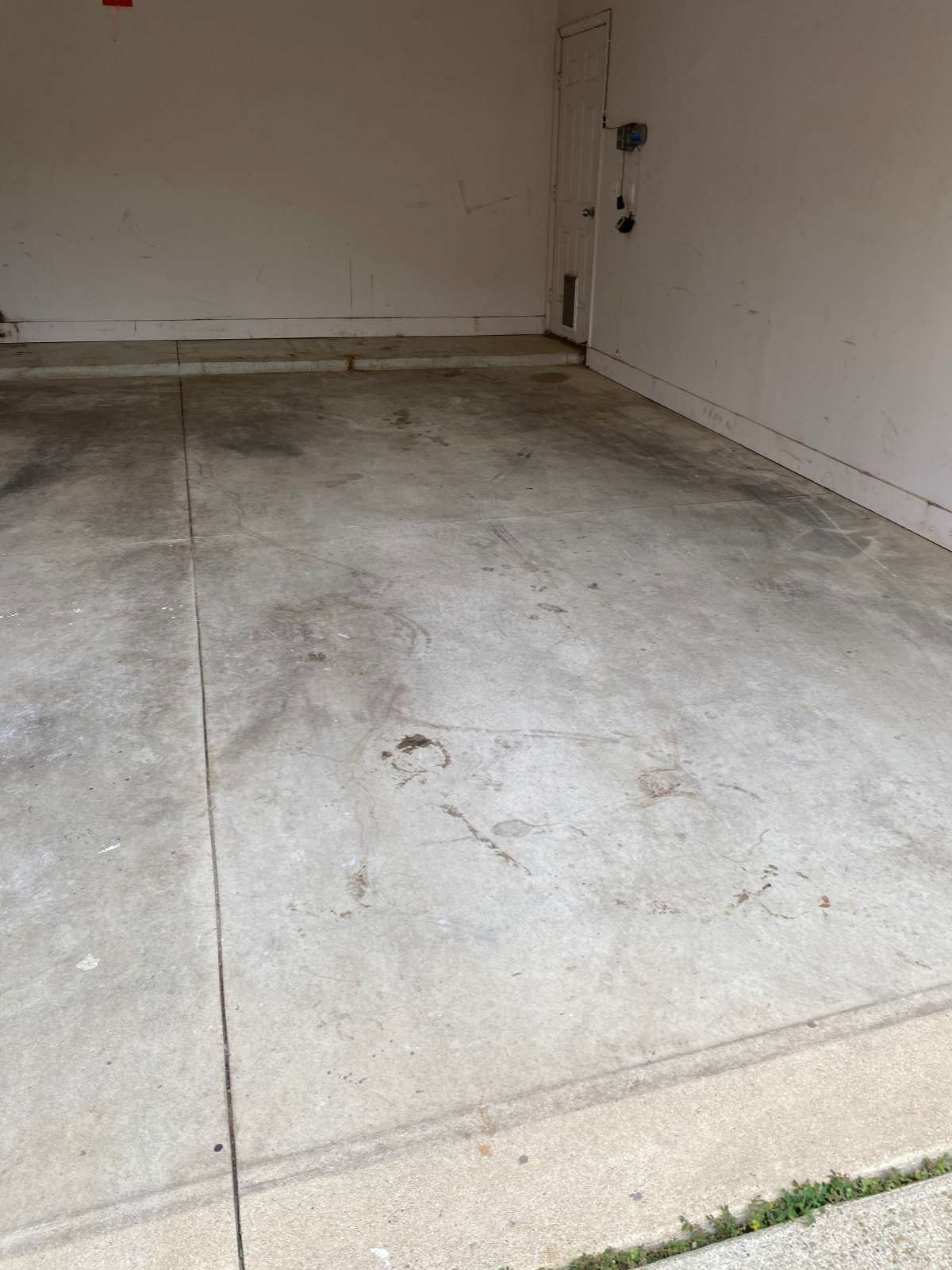

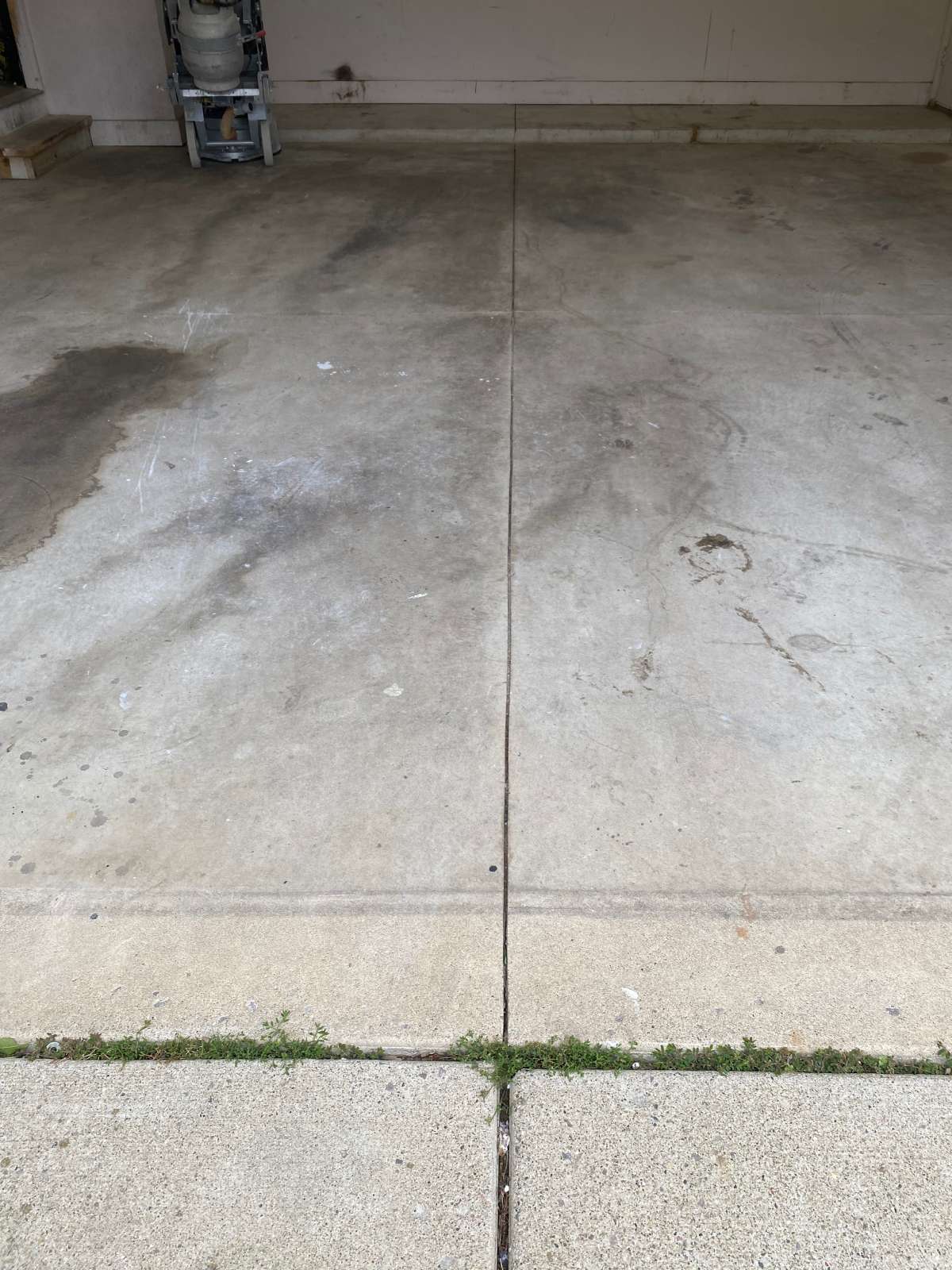

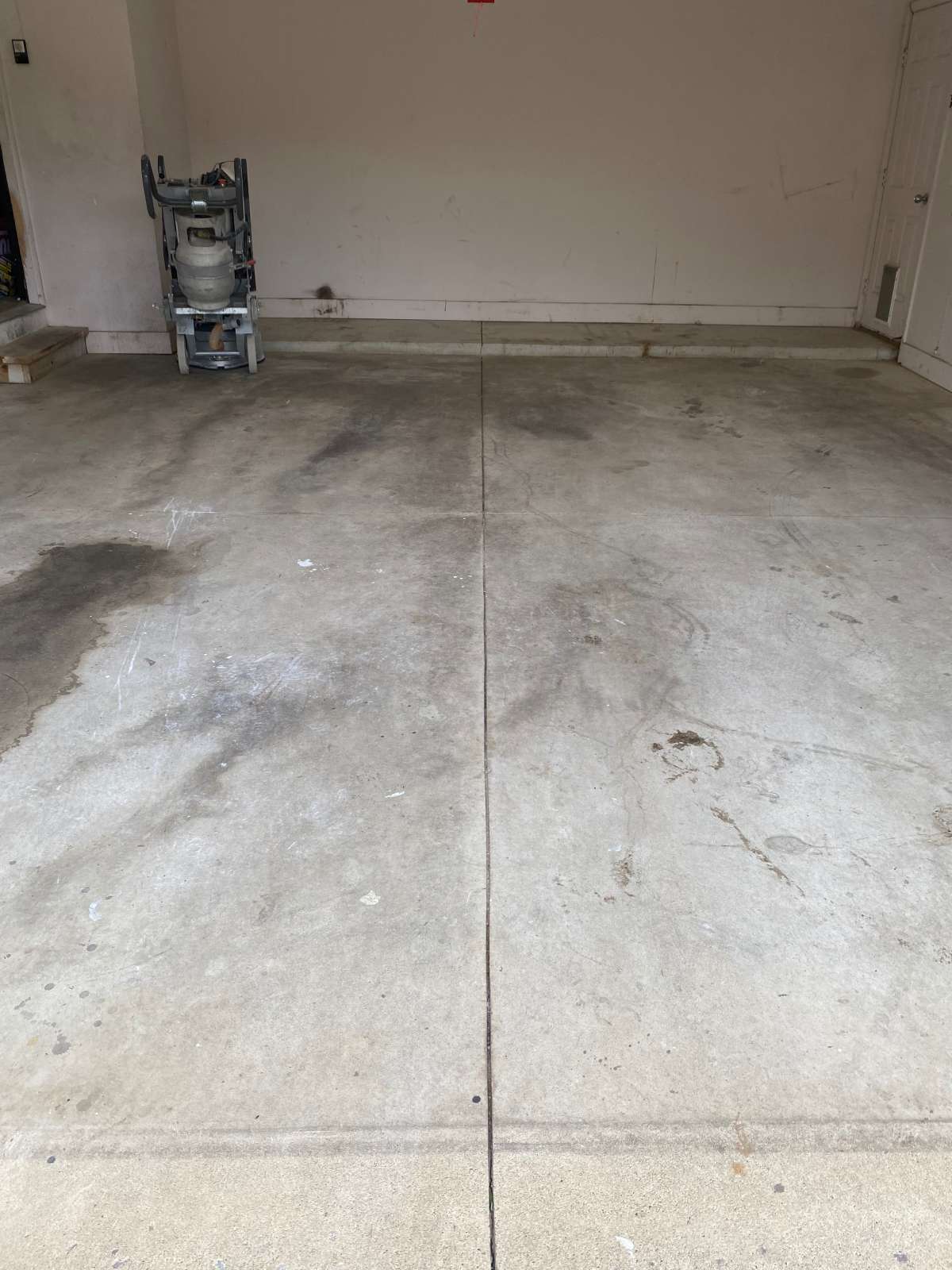

Two Surfaces, One Job

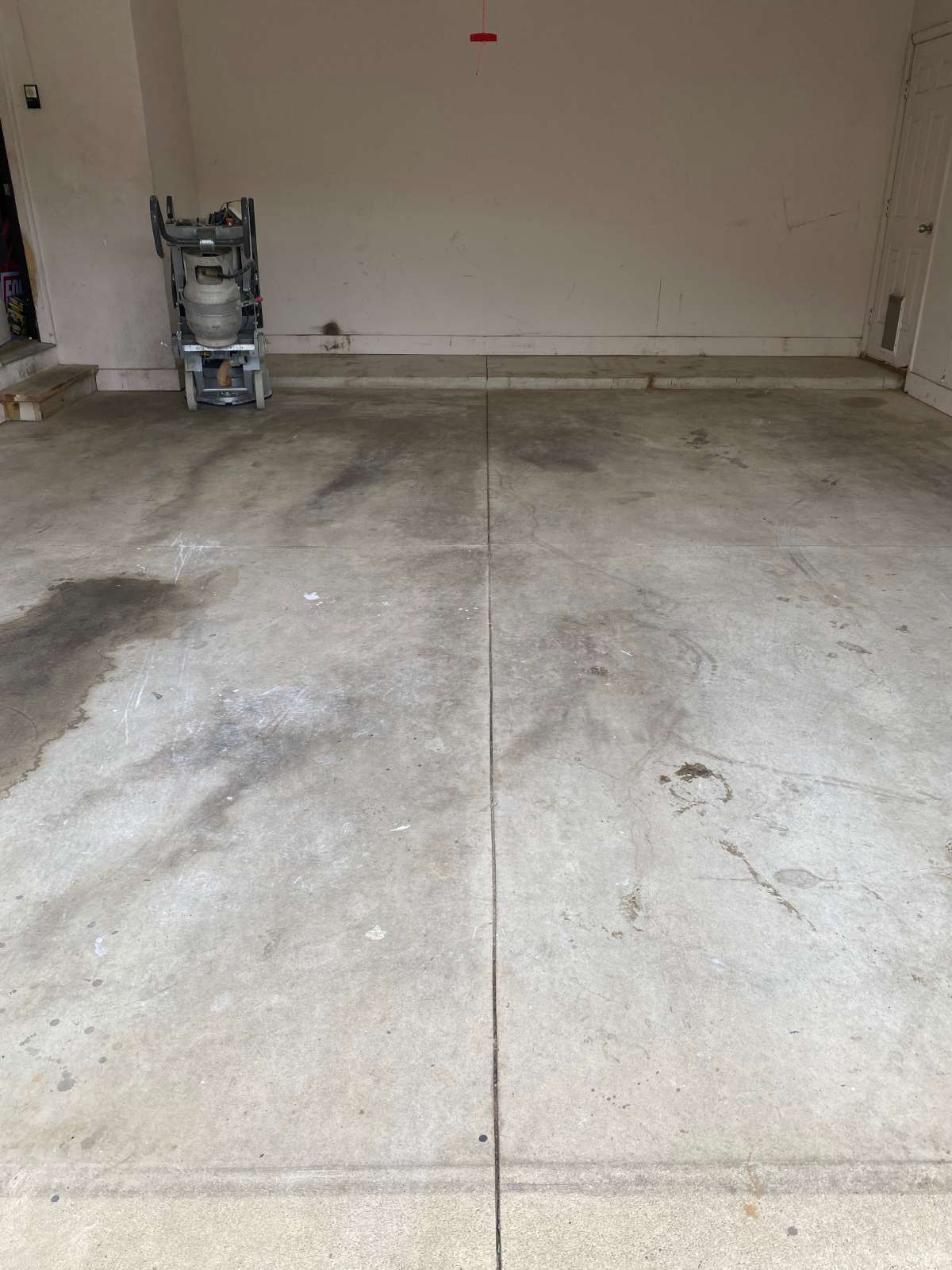

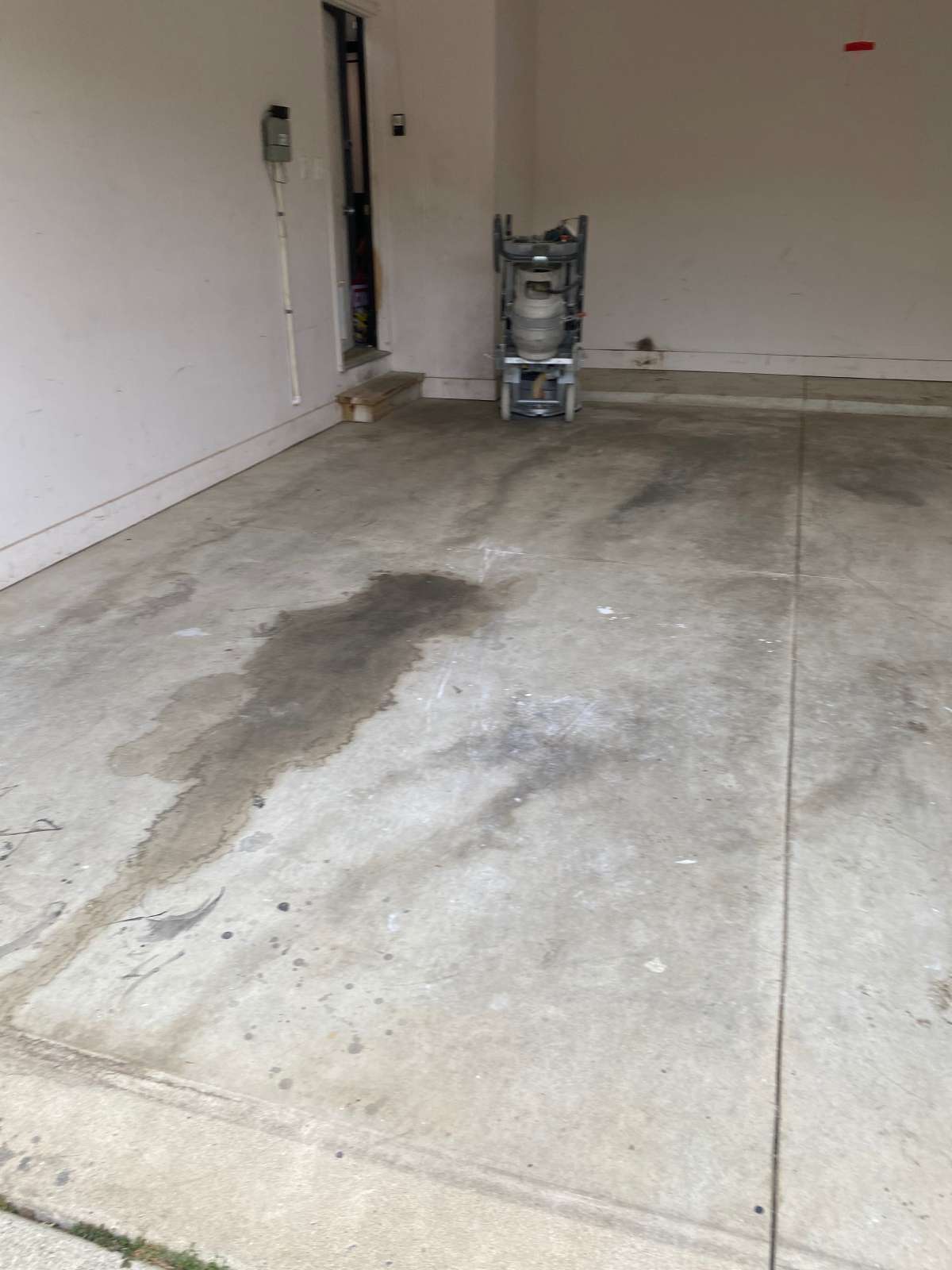

Our crew arrived at this Brady Lane property to coat two separate surfaces in a single visit: a 413-square-foot garage and a 123-square-foot front porch, both under the same color and system. In the garage, our crew found oil staining across the left parking bay and general contamination throughout. A wood step separated the garage floor from the house entry. The garage scope included 16 linear feet of verticals along the wall base. On the porch, our crew found surface staining across the exposed concrete slab, with 25 linear feet of verticals running along the brick surround.

Preparing the Garage Floor, Verticals, and Wood Step

Our crew diamond-ground all 413 garage square feet, stripping the oil staining, laitance, and surface contamination from both parking bays. We worked the perimeter along the full 16 linear feet of vertical base to open those surfaces before coating. The wood step needed different treatment: our crew hand-abraded the tread and riser to create mechanical adhesion on the timber surface before any coating material touched it. We vacuumed the full garage before moving to the porch.

Preparing the Porch and Brick Surround

Our crew ground the full 123-square-foot porch to open the concrete and remove the surface staining. We worked carefully along the full 25 linear feet of brick vertical surround, hand-grinding each section to give the coating a consistent grip surface at every edge. We vacuumed the porch before coating began.

Applying Cabin Fever to Both Surfaces

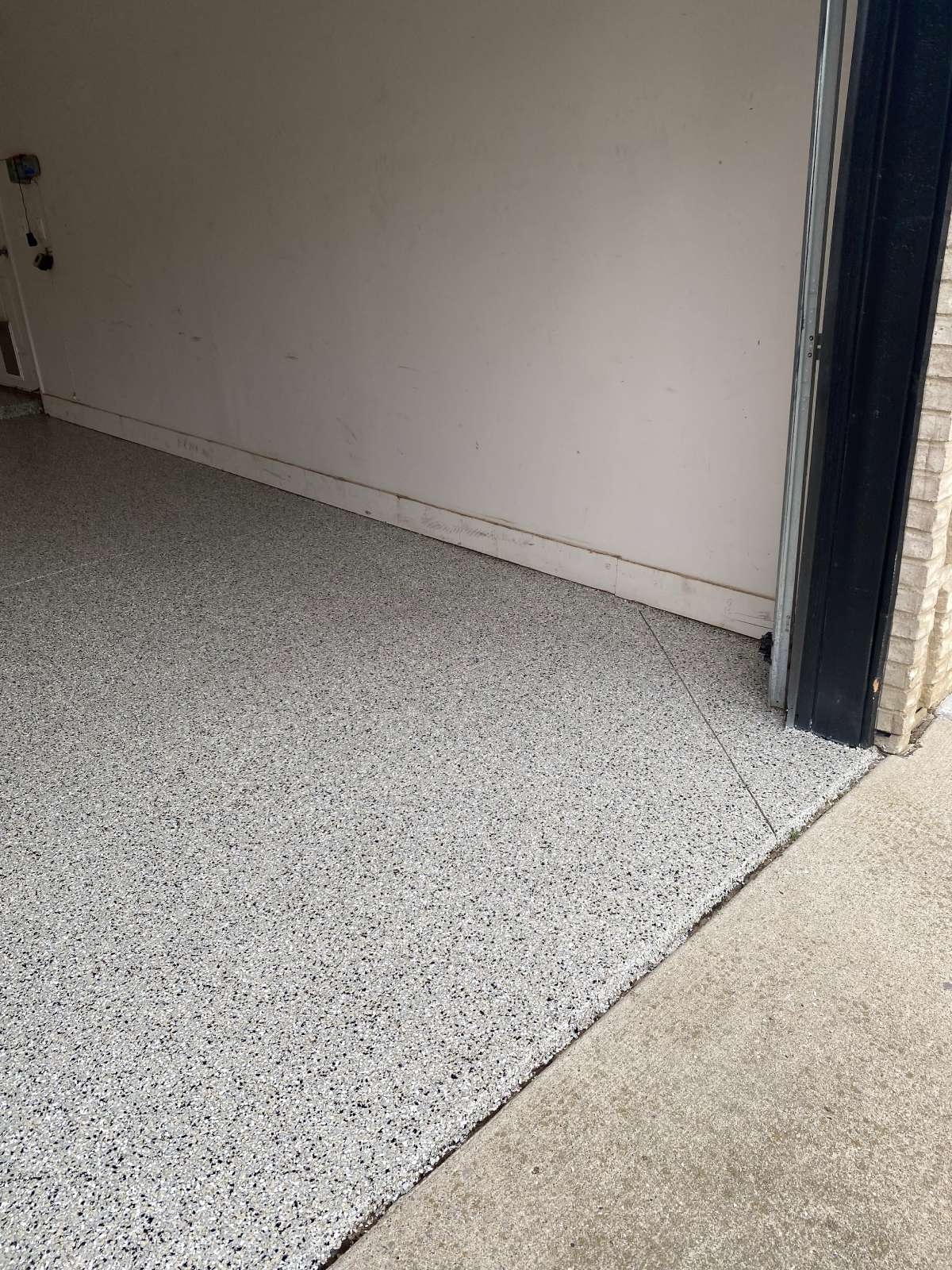

The homeowner selected Cabin Fever, a light, cool blend of grey, silver, and white chips with black accents. Our crew applied the MC-4 polyurea-polyaspartic system to the garage first, spreading the base coat across all 413 square feet and broadcasting Cabin Fever flake into the wet surface. We coated the 16 linear feet of garage verticals and the wood step tread and riser in the same Cabin Fever finish, then laid the clear topcoat with 16-grit traction additive throughout. We repeated the full process on the 123-square-foot porch and ran the same finish along all 25 linear feet of the brick surround.

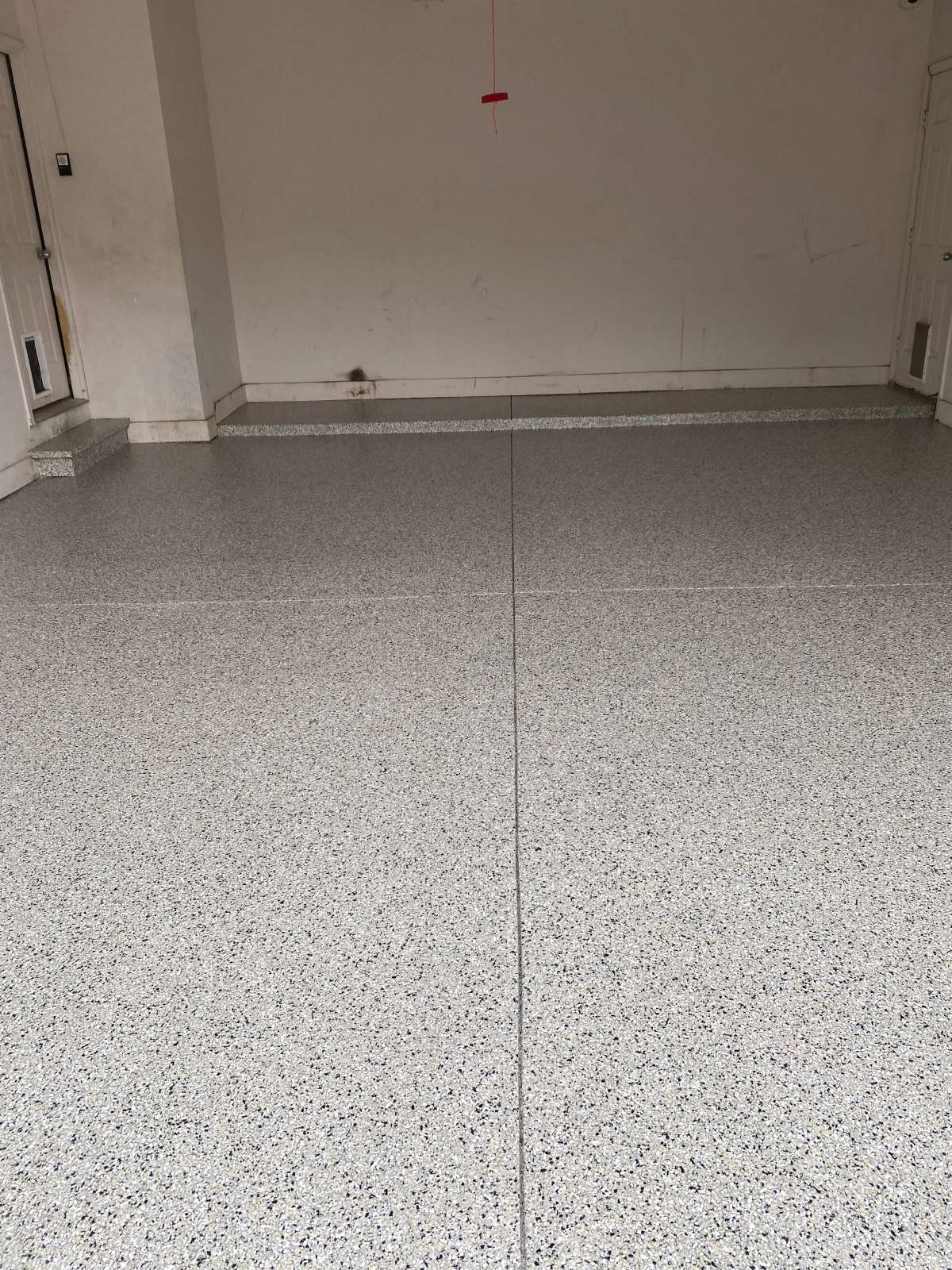

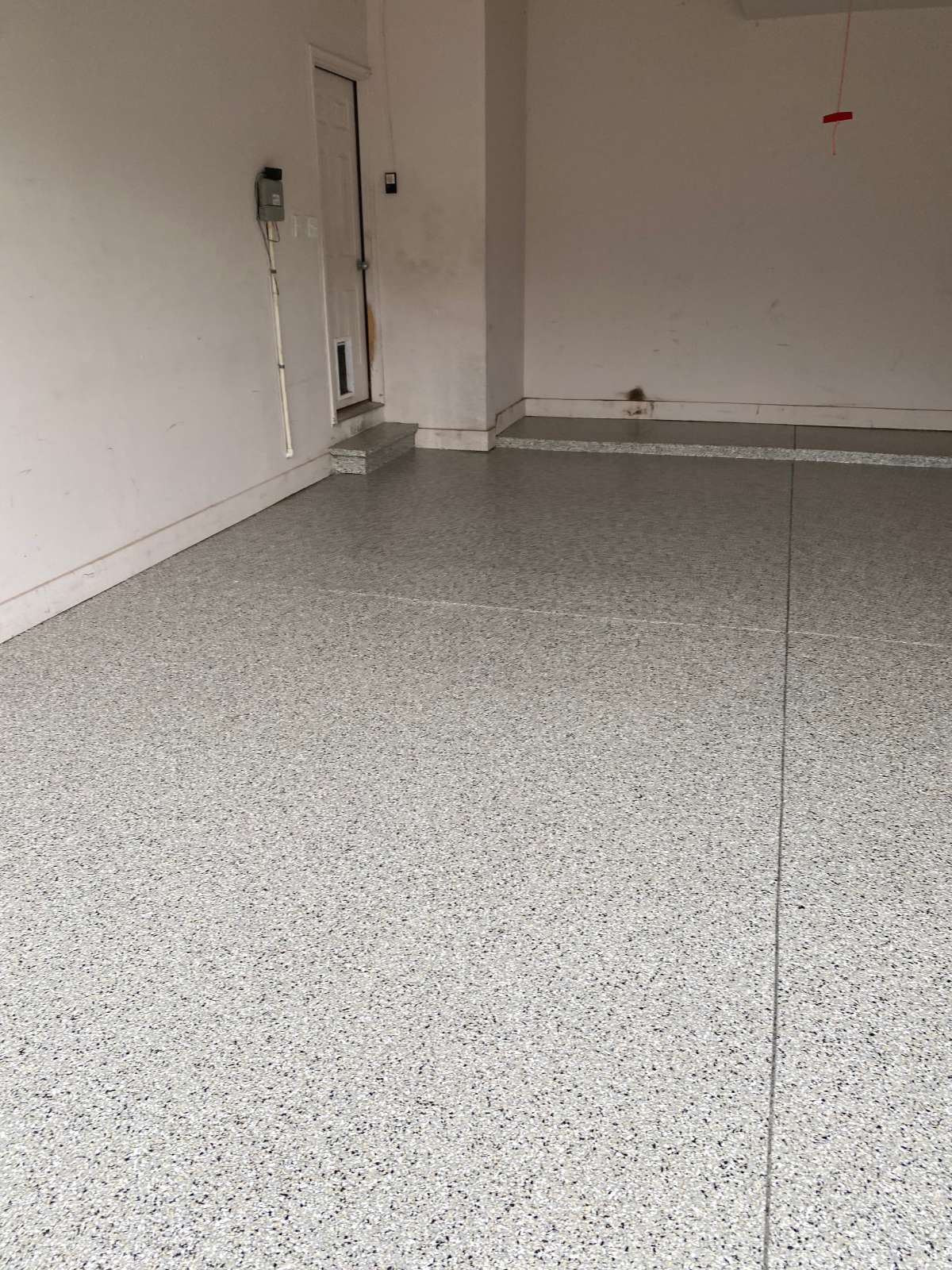

What the Homeowner Got

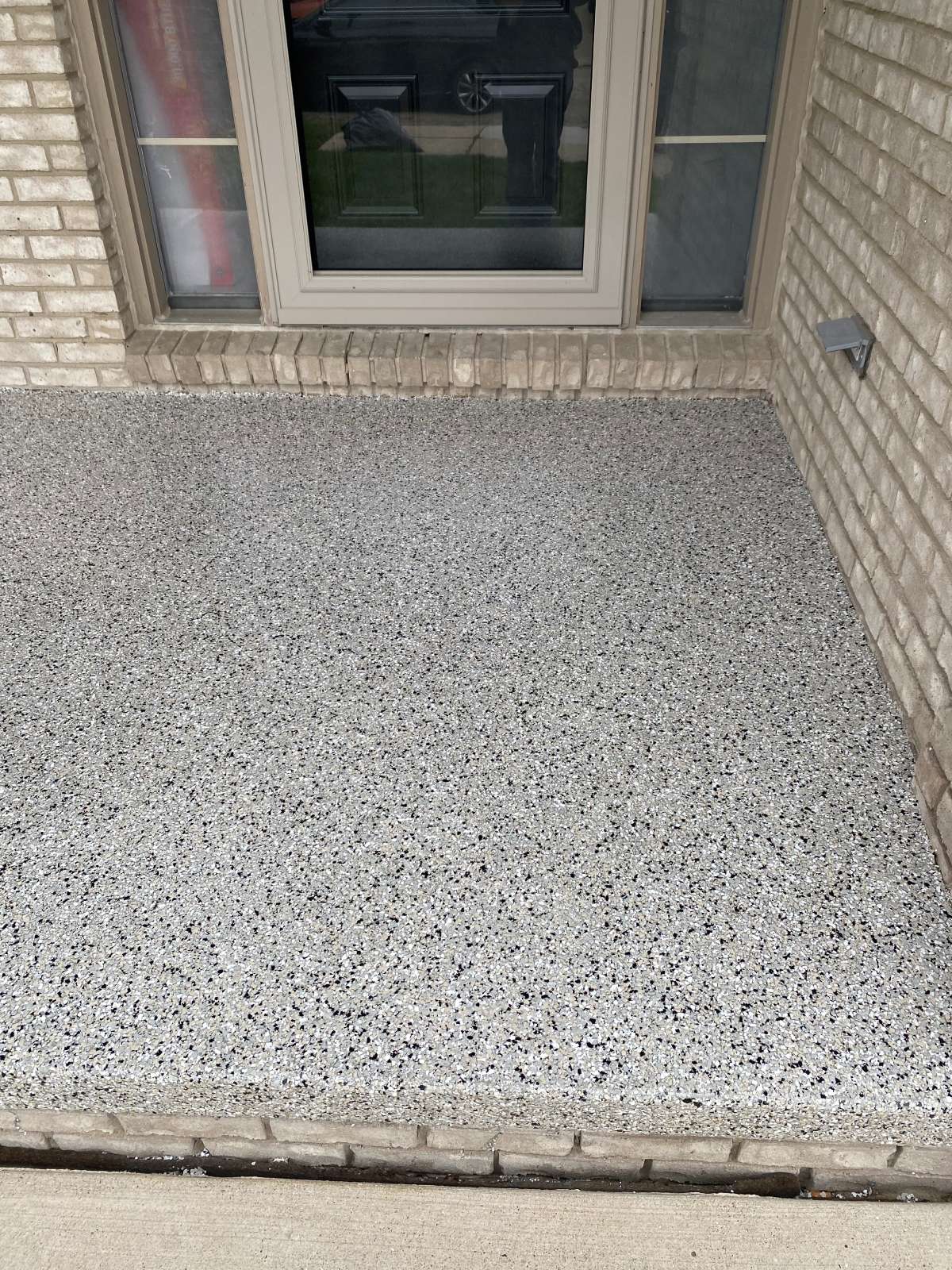

Anyone walking through that garage and out onto the porch sees the same Cabin Fever finish on both surfaces, consistent in color and pattern across 536 square feet total. Our crew coated the wood step to integrate it cleanly into the garage floor finish. We carried the coat edge all the way down the verticals on both surfaces and ran the coating along every linear foot of the brick surround. Our crew sealed and protected both surfaces under the MC-4 system in a single visit.

NEW Garage Floor Coating
on Apex Drive

Apex Drive, Pontiac, MI

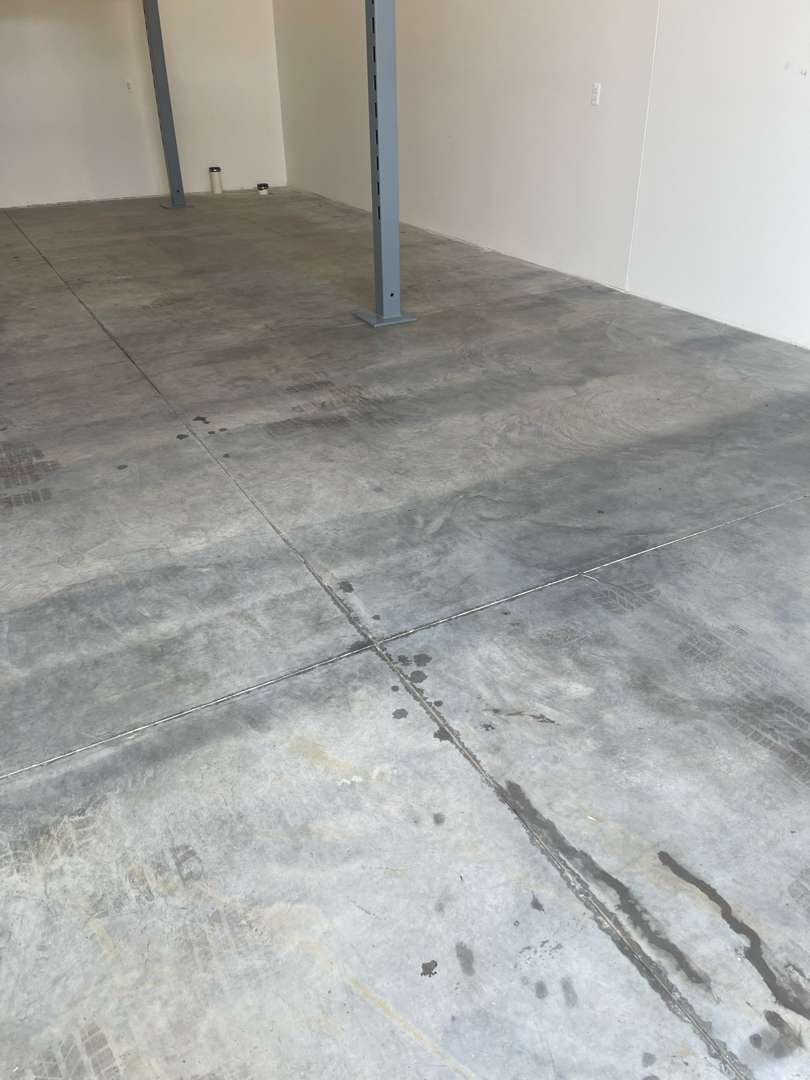

The Setting

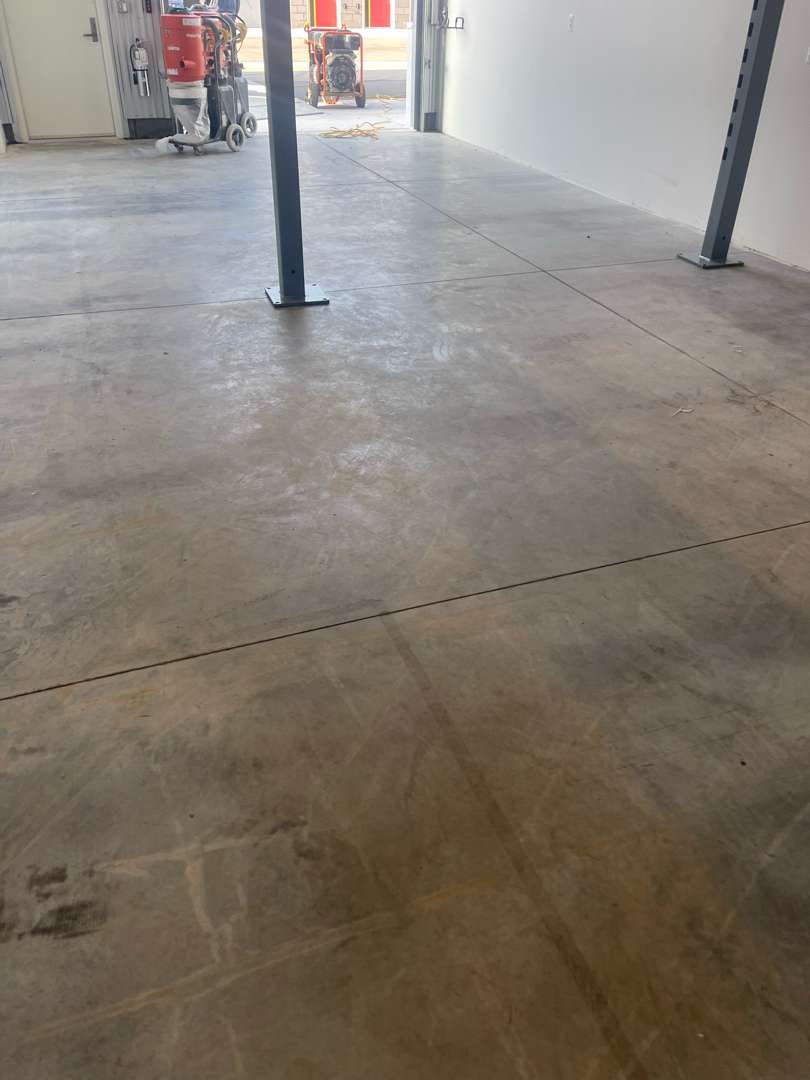

Serious car enthusiasts choose M1 Concourse in Pontiac for private vehicle storage because the facility gives them something a standard residential garage cannot: a purpose-built space they can use as a working garage. Our crew arrived at this 603-square-foot unit to find a new concrete slab with no prior coating and no oil contamination. The owner had already installed and bolted a four-post vehicle lift to the slab before we arrived. Our crew found a few minor surface imperfections left over from the construction process scattered across the slab. The project covered the flat floor to the garage door line only, no steps and no verticals in scope.

Why Hard-Troweled Concrete Requires Aggressive Grinding

The troweling process produces a dense, closed surface by design, and without mechanical profiling first, our crew cannot get the polyurea-polyaspartic system to bond to it. Our crew ran diamond grinding equipment across all 603 square feet, making additional passes wherever the surface resisted opening. We worked carefully around all four lift post bases to maintain complete coverage at every corner. After grinding, our crew had a consistently open profile across the entire slab and vacuumed the floor before moving to repairs.

Addressing the Surface Imperfections

Our crew applied mender compound to each imperfection they found after grinding, troweling the material flush with the surrounding concrete at every location. The repairs were limited in scope, requiring precise spot work rather than any full-slab application. We gave everything full cure time before the base coat went down.

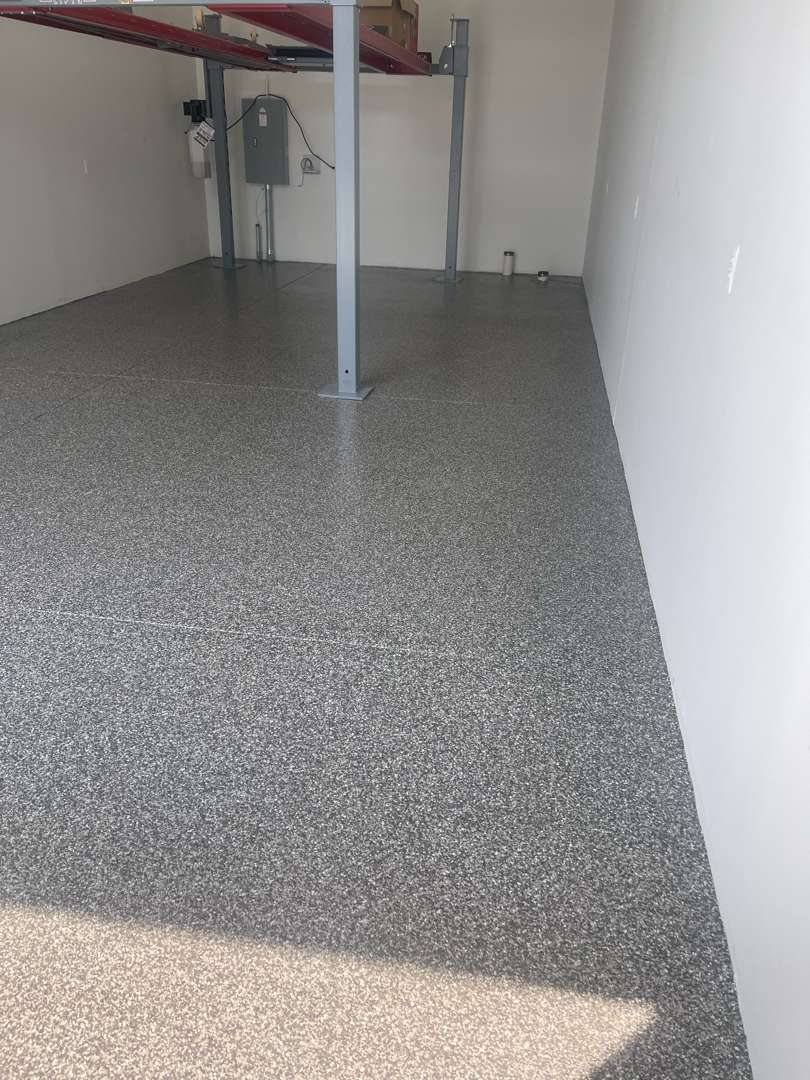

Silver Creek on a Purpose-Built Floor

The owner selected Silver Creek, a multi-tone blend of dark charcoal, mid-grey, and bright white chips that suits the character of a serious vehicle storage space. Our crew applied the MC-3.5 polyurea-polyaspartic system across all 603 square feet, broadcasting Silver Creek flake into the wet base coat across the full floor. We cut in around each lift post base by hand to keep the edges clean on all four corners. We then laid the clear topcoat over the full surface to lock in the flakes and seal the slab, running the coating wall to wall to the garage door line.

What the Owner Drives Into Every Day

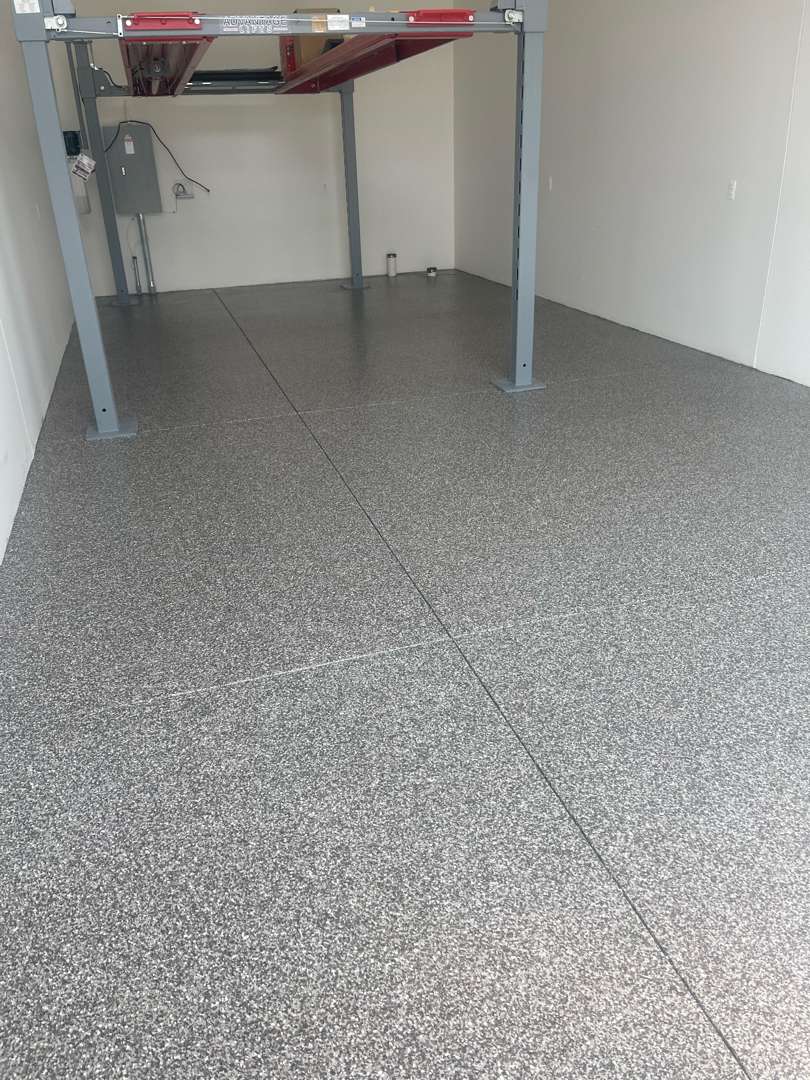

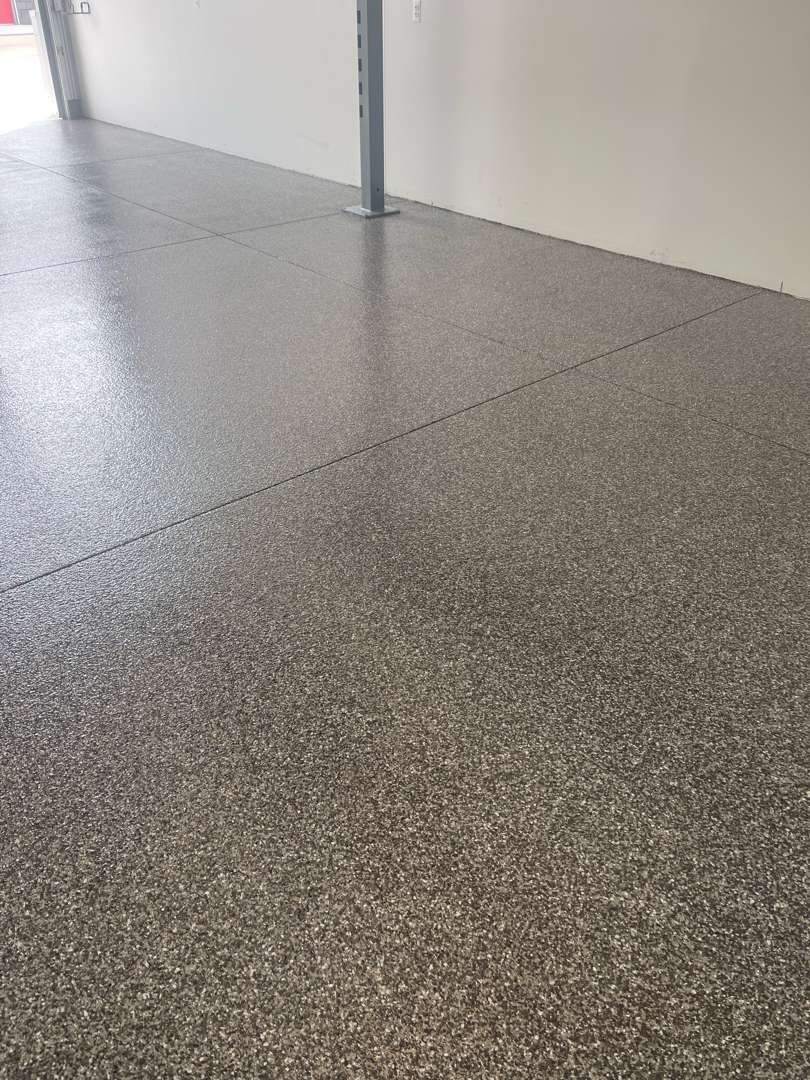

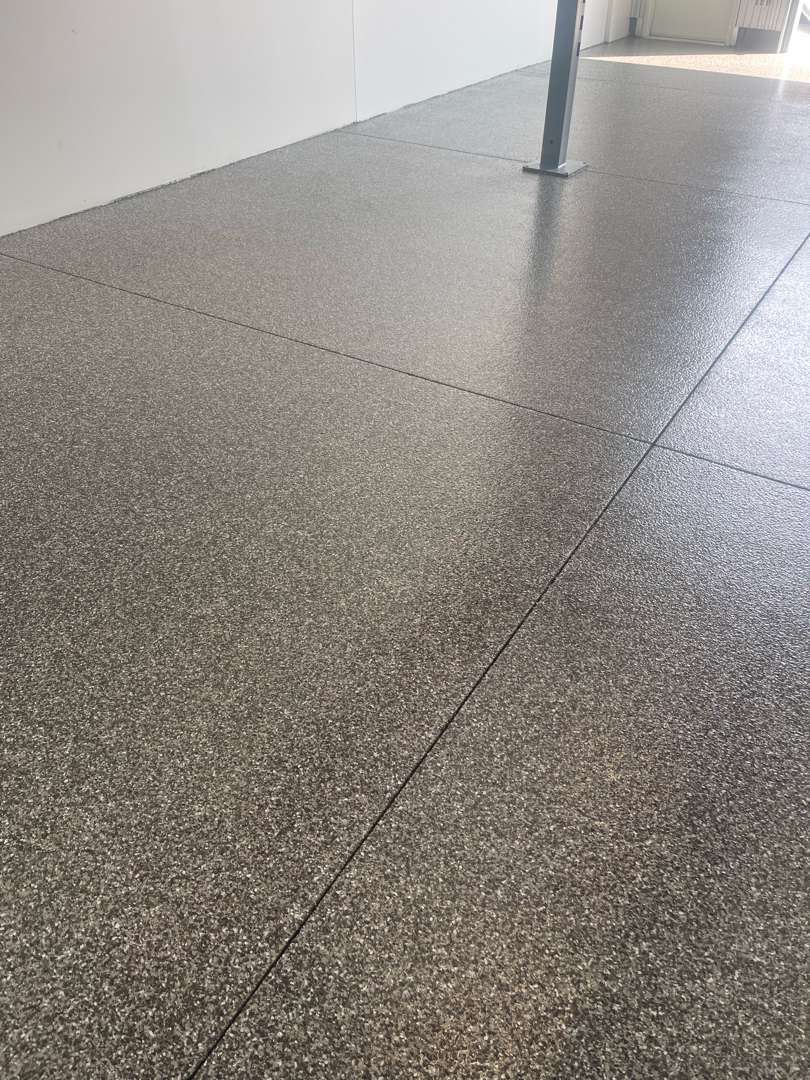

Our crew covered all 603 square feet with Silver Creek in a consistent multi-tone finish. Anyone walking into that unit sees the charcoal, grey, and white blend read cleanly against the white walls on every visit. We brought the coating flush around each lift post base with clean edges on all four corners. By applying the MC-3.5 system, our crew gave this new slab a sealed, chemically resistant surface from the first day the owner drives in, before vehicle fluids, road salt, and daily workshop use work their way into unprotected concrete.

The MotorCity Advantage

MotorCity Floors and Coatings specializes in professional-grade polyurea-polyaspartic systems. These dual-coating systems are replacing epoxy products constrained by older chemistry. Our systems deliver strong chemical resistance, superior durability, greater flexibility, shorter cure times, and proven UV stability that maintains color for decades. We back every installation with an industry-leading warranty.

Each project includes thorough diamond grinding preparation, flexible polyurea crack repair, and careful application to ensure consistent coverage across the full slab. When heavy pitting or spalling is present — as our crew found at the James K Boulevard property in Pontiac — we apply full-zone mender compound before any coating goes down. This step restores a stable, consistent surface and ensures the polyurea-polyaspartic system bonds correctly across every square foot.
